Sanjiang Canvas Hose 9 Inch Pvc Pipe

Sanjiang Canvas Hose 9 Inch Pvc Pipe thumbnail-1

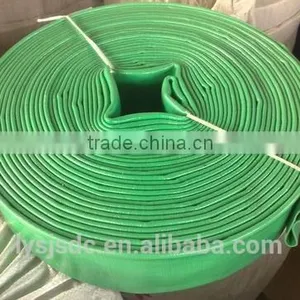

Sanjiang Canvas Hose 9 Inch Pvc Pipe thumbnail-2

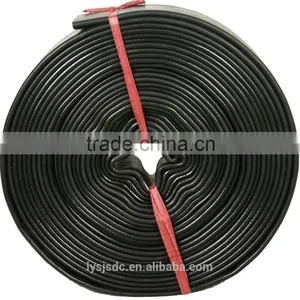

Sanjiang Canvas Hose 9 Inch Pvc Pipe thumbnail-3

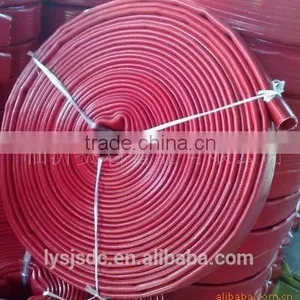

Sanjiang Canvas Hose 9 Inch Pvc Pipe thumbnail-4
Sanjiang Canvas Hose 9 Inch Pvc Pipe photo-1

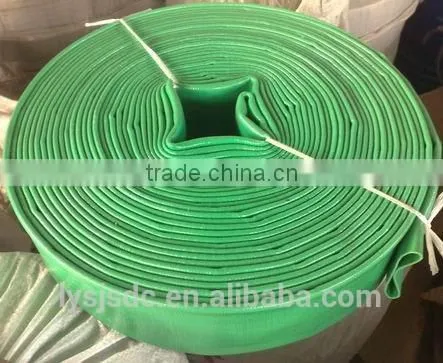

Sanjiang Canvas Hose 9 Inch Pvc Pipe photo-2

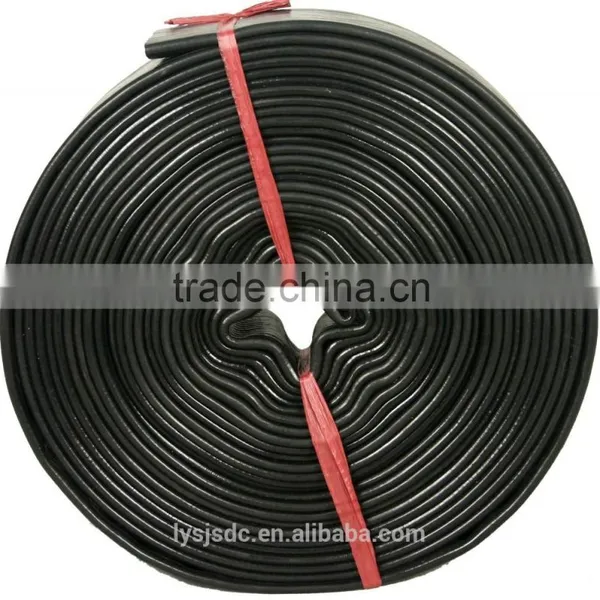

Sanjiang Canvas Hose 9 Inch Pvc Pipe photo-3

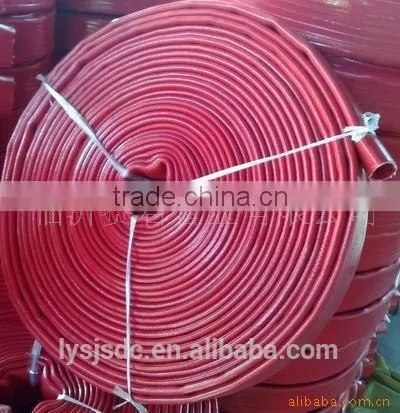

Sanjiang Canvas Hose 9 Inch Pvc Pipe photo-4
US$ 0.5 - 50 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
sanjiang
Model Number:
2-48bar
Contact Supplier Request Quote Chat Now
Linyi Saijun Pipe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name sanjiang
Model Number 2-48bar
Material PVC
Specification 1''-12''
Length 200m
Thickness 2-6mm
Standard enterprise standard

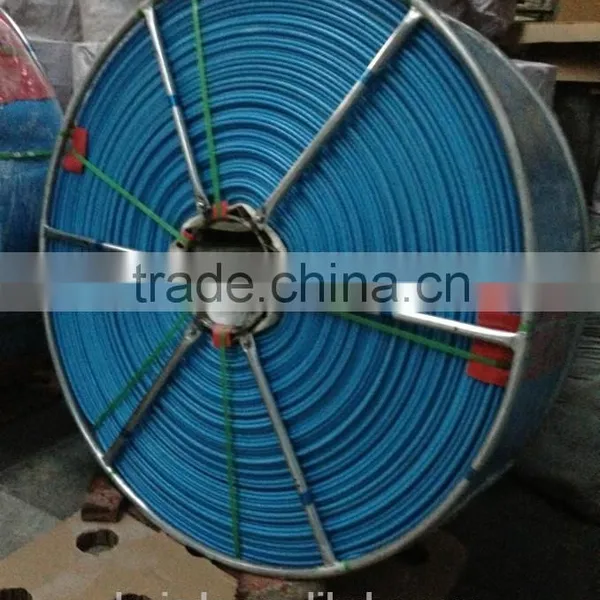

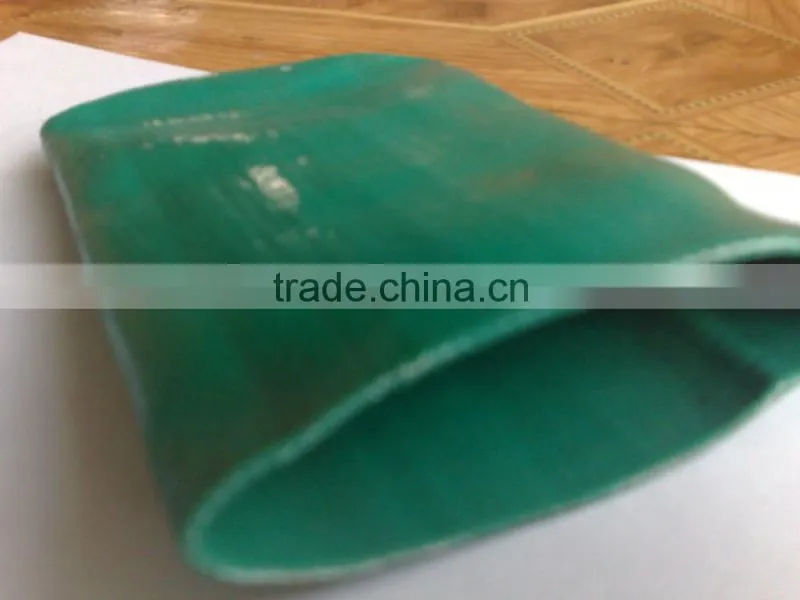

1.Pictures of Lay Flat Hose

sanjiang canvas hose 9 inch pvc pipe

 sanjiang canvas hose 9 inch pvc pipesanjiang canvas hose 9 inch pvc pipe

 sanjiang canvas hose 9 inch pvc pipe

2.Applications Of Product

1.Drip irrigation

2.Relay supply lines

3.Mining

4.Construction

5.Agriculture

6.General industrial applications

7.Portable hydrants

3.Size Reference

inside diameter wall thickness mm
mm inch 0.2   MPa 0.4   MPa 0.6   MPa 0.8   MPa 1.0MPa 1.5MPa 2.0   MPa 2.5MPa
25.4 1 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
38.1 1.5 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
50.8 2 1.4 1.6 1.8 2 2.2 2.4 2.6 3
63.5 2.5 1.4 1.7 2 2.2 2.4 2.6 2.8 3.2
76.2 3 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
101.6 4 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
127 5 1.5 1.8 2.1 2.3 2.5 2.8 3
152.4 6 1.6 2 2.2 2.5 2.8 3 3.2
203.2 8 1.8 2.3 2.5 2.8 3 3.2
254 10 2 2.3 2.8 3 3.2
304.8 12 2.4 2.8 3 3.2 3.4
inside diameter weight kg
mm inch 0.2   MPa 0.4   MPa 0.6   MPa 0.8   MPa 1.0   MPa 1.5MPa 2.0MPa 2.5   MPa
25.4 1 0.154 0.176 0.198 0.220 0.242 0.264 0.286 0.308
38.1 1.5 0.231 0.264 0.297 0.330 0.363 0.396 0.429 0.462
50.8 2 0.308 0.352 0.396 0.440 0.484 0.528 0.572 0.616
63.5 2.5 0.385 0.467 0.549 0.604 0.659 0.714 0.769 0.824
76.2 3 0.461 0.593 0.692 0.758 0.823 0.922 0.988 1.054
101.6 4 0.660 0.792 0.924 1.012 1.100 1.232 1.320 1.408
127 5 0.825 0.990 1.155 1.265 1.375 1.540 1.650 1.760
152.4 6 1.054 1.318 1.450 1.648 1.845 1.977 2.109
203.2 8 1.500 1.917 2.083 2.330 2.500 2.670
254 10 2.000 2.600 2.800 3.000 3.200
304.8 12 2.710 3.162 3.388 3.614 3.840
inside diameter volume m³
mm inch 0.2   MPa 0.4   MPa 0.6   MPa 0.8   MPa 1.0   MPa 1.5MPa 2.0MPa 2.5   MPa
25.4 1 0.000231 0.000264 0.000297 0.000330 0.000363 0.000396 0.000429 0.000462
38.1 1.5 0.000347 0.000396 0.000446 0.000495 0.000545 0.000595 0.000644 0.000694
50.8 2 0.000462 0.000529 0.000595 0.000661 0.000727 0.000793 0.000859 0.000925
63.5 2.5 0.000578 0.000701 0.000824 0.000907 0.000989 0.001072 0.001155 0.001237
76.2 3 0.000692 0.000890 0.001039 0.001138 0.001236 0.001384 0.001483 0.001583
101.6 4 0.000991 0.001189 0.001387 0.001520 0.001652 0.001850 0.001982 0.002114
127 5 0.001239 0.001486 0.001734 0.001899 0.002065 0.002312 0.002477 0.002643
152.4 6 0.001583 0.001979 0.002177 0.002474 0.002770 0.002968 0.003167
203.2 8 0.002252 0.002878 0.003128 0.003498 0.003754 0.004009
254 10 0.003003 0.003904 0.004204 0.004505 0.004805
304.8 12 0.004069 0.004748 0.005087 0.005426 0.005766



4.Features Of Product

◊ High Technology, Quality more stable&durable

◊ Durable toward pressure fluctuation

◊ Prompt Delivery

◊ Light weight and easy handling

◊ Low temperature resistant (-10°C to 65°C)

◊ Resistant to ageing, weathering, ozone and UV

◊ Good flexibility&soft

◊ Easy use & storage.

◊ Different colors available.



5.Factory Show

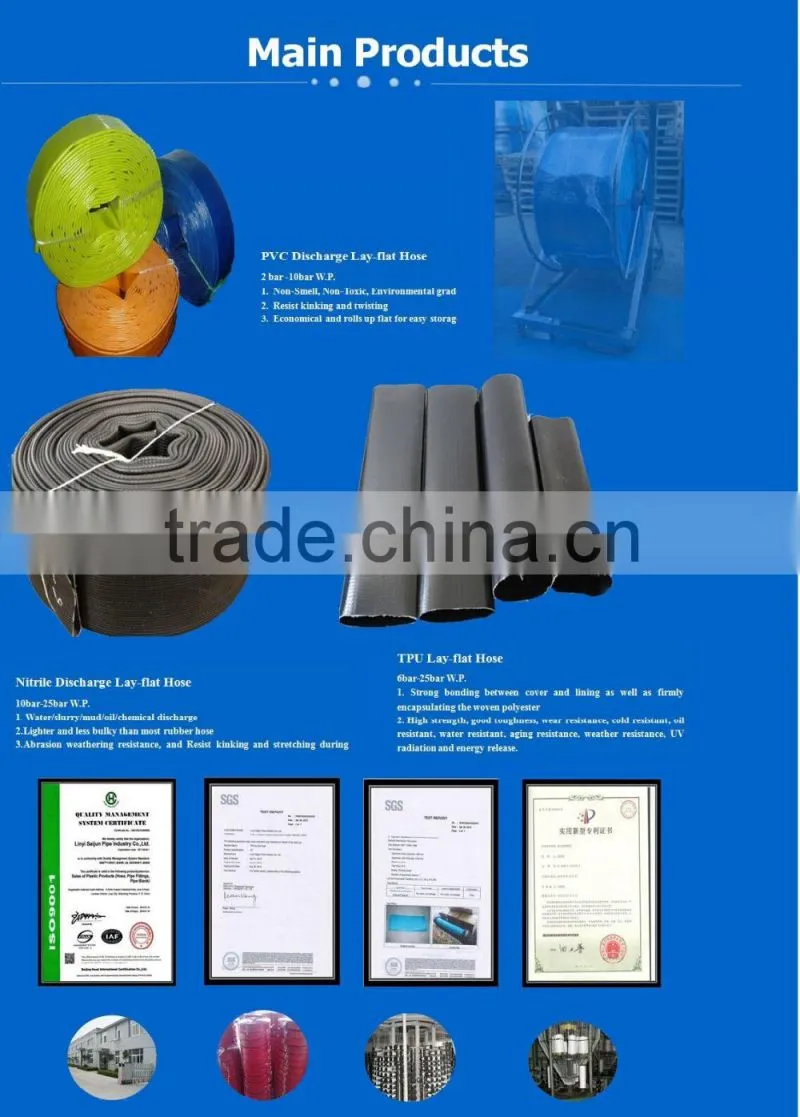

sanjiang canvas hose 9 inch pvc pipe



6.Enterprise Qualification

sanjiang canvas hose 9 inch pvc pipe



Skype:qiaofangwin8

Phone:008615762983159

Email: fang(@)

QQ:2285548034

Facebook: PVC layflat hose
