FACTORY PVC PIPES LIST/ LAYFLAT HOSE
1. PVC Lay Flat Hose
This hose is a PVC discharge lay-flat hose that resists kinking and twisting. This hose is designed as a standard duty hose for water discharge in industrial and construction applications, and is economical and rolls up flat for easy storage.
FACTORY PVC PIPES LIST/ LAYFLAT HOSE
Inner Diameter |
Wall Thickness(mm) |
||||||||
MM |
Inch
|
0.2 MPa |
0.4 MPa |
0.6 MPa |
0.8 MPa |
1.0MPa |
1.5MPa |
2.0 MPa |
2.5MPa |
25.4 |
1 |
1.4 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.6 |
2.8 |
38.1 |
1 1/2 |
1.4 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.6 |
2.8 |
50.8 |
2 |
1.4 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.6 |
3 |
63.5 |
2 1/2 |
1.4 |
1.7 |
2 |
2.2 |
2.4 |
2.6 |
2.8 |
3.2 |
76.2 |
3 |
1.5 |
1.8 |
2.1 |
2.3 |
2.5 |
2.8 |
3 |
3.2 |
101.6 |
4 |
1.5 |
1.8 |
2.1 |
2.3 |
2.5 |
2.8 |
3 |
3.2 |
127 |
5 |
1.5 |
1.8 |
2.1 |
2.3 |
2.5 |
2.8 |
3 |
|
152.4 |
6 |
1.6 |
2 |
2.2 |
2.5 |
2.8 |
3 |
3.2 |
|
203.2 |
8 |
1.8 |
2.3 |
2.5 |
2.8 |
3 |
3.2 |
||
254 |
10 |
2 |
2.3 |
2.8 |
3 |
3.2 |
|||
304.8 |
12 |
2.4 |
2.8 |
3 |
3.2 |
3.4 |
|||

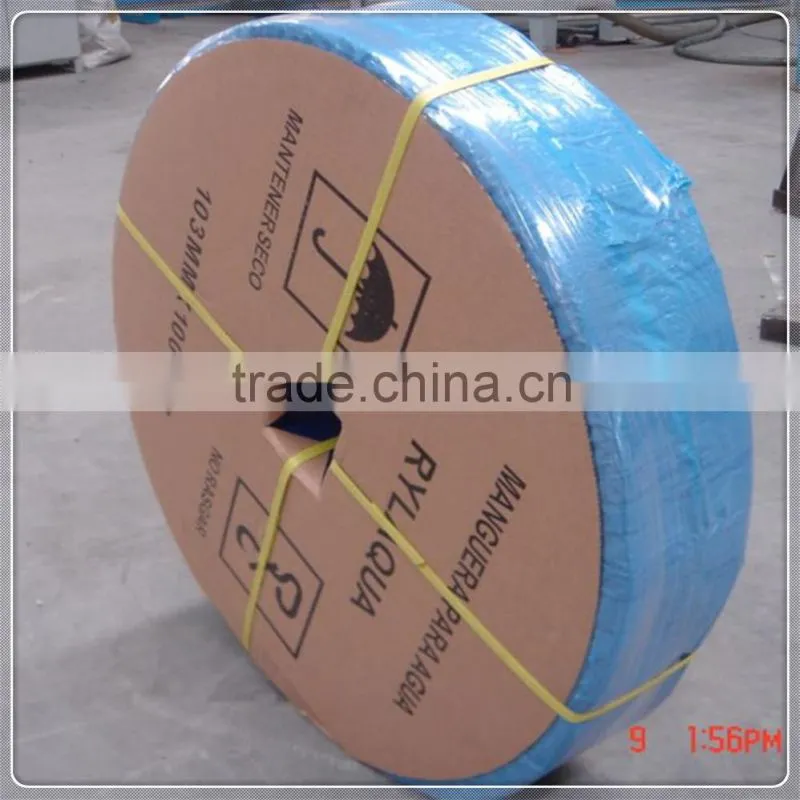

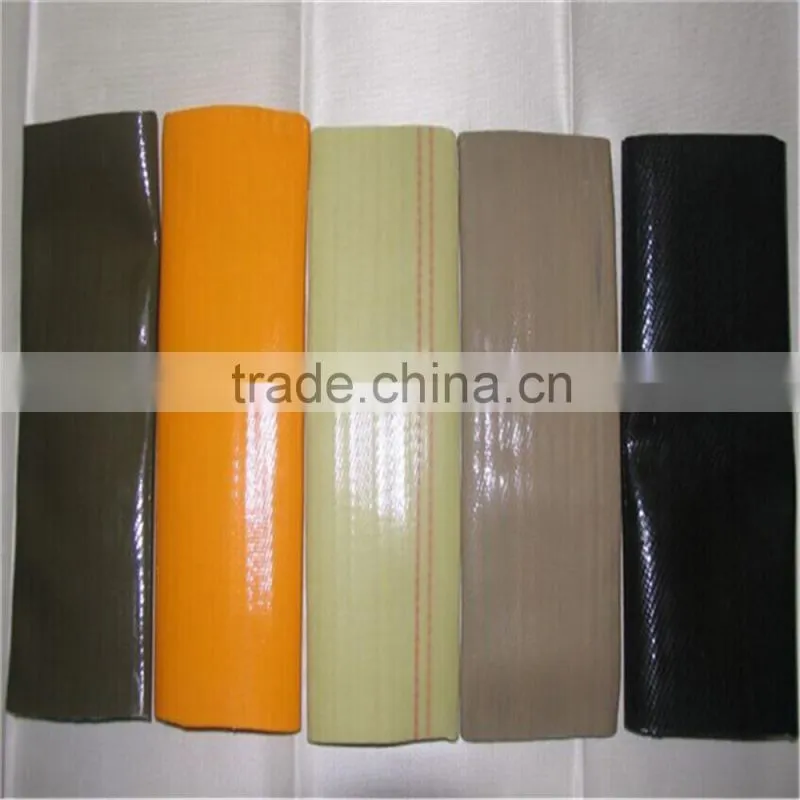

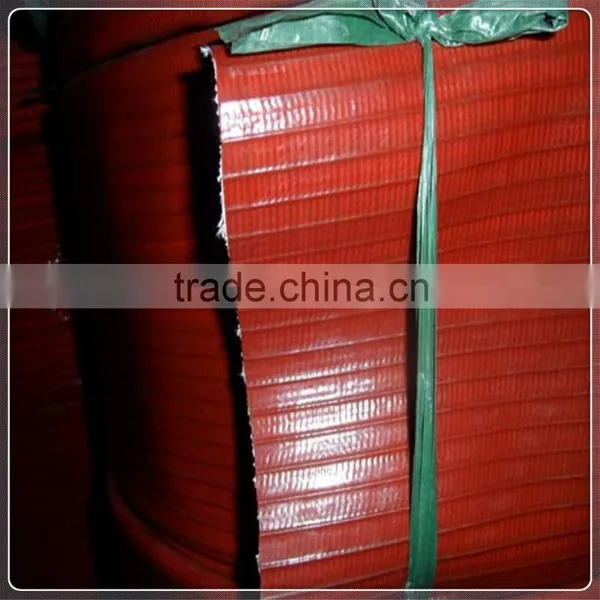

Photos
FACTORY PVC PIPES LIST/ LAYFLAT HOSE

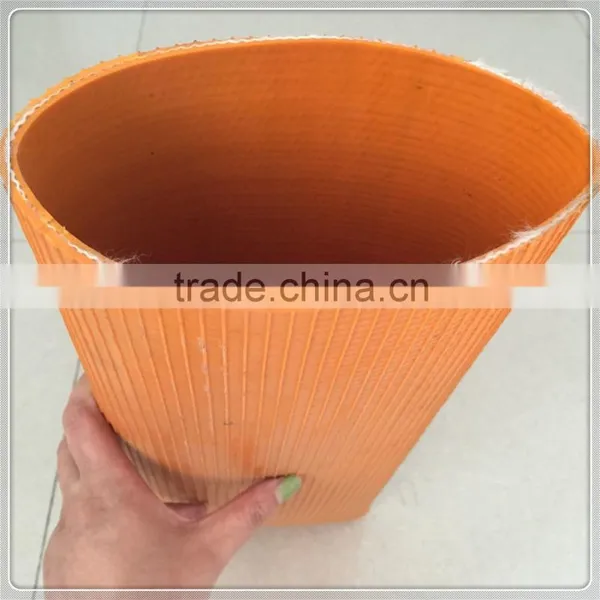

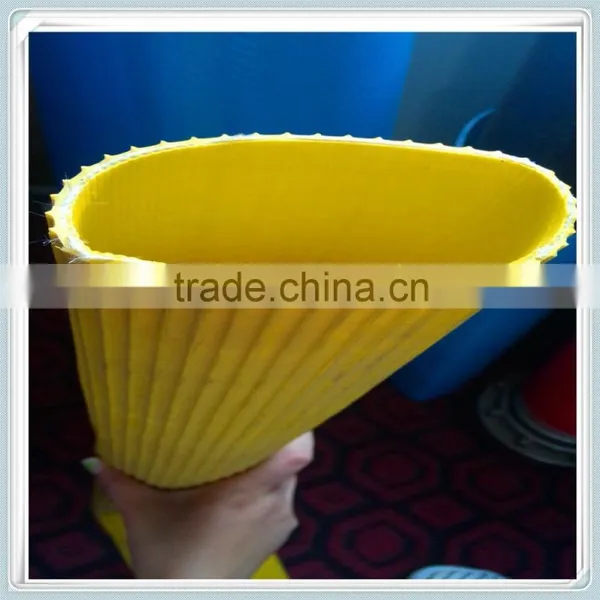

3. TPU layflat hose
FACTORY PVC PIPES LIST/ LAYFLAT HOSE
TPU (thermoplastic polyurethane) is welcomed by the customers because of its superior performance and the concept of environmental protection. TPU not only has excellent high tension, high tensile strength, toughness and resistance to aging properties, and is a kind of mature environmental protection material.
Main Features: water resistance, UV resistance,.oil resistance, wear resistance, mold resistance.
SPECIFICATION
FACTORY PVC PIPES LIST/ LAYFLAT HOSE
| Inner Diameter | Wall Thickness(mm) | ||||||
| MM | Inch | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 101.6 | 4 | 2 | 2.66 | 3.2 | 3.6 | 4.2 | 5 |
| 127 | 5 | 2.1 | 3.2 | 3.4 | 4.3 | 5 | 5.7 |
| 152.4 | 6 | 2.4 | 3.2 | 4 | 5 | 5.8 | 6.5 |
| 203.2 | 8 | 2.8 | 3.7 | 4.5 | 5.2 | 6 | |
| 254 | 10 | 3 | 4 | 5 | 5.8 | 6.7 | |
| 304.8 | 12 | 3.3 | 4.4 | 6 | 7.5 | ||
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m, but for first cooperation we also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
