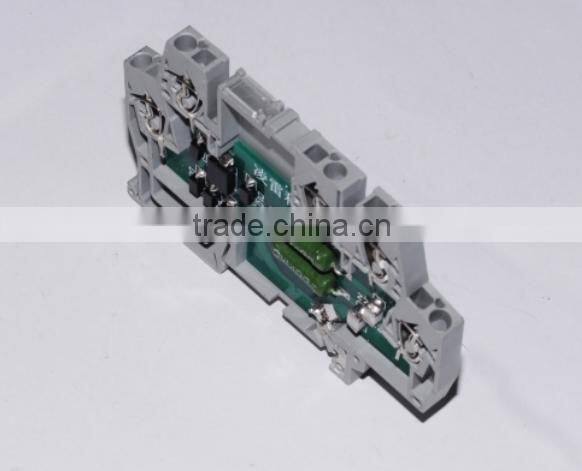

Ultra thin control series two line lightning current and surge protector
Description:
LCKE/LCKF is a universal integrated two line lightning current and surge protector, DIN35 Rail Mounting. Can meet the requirements of the measurement and control circuit, bus system, alarm system and telecommunication system.
The discharge element of LCKE is gas discharge tube, Pressure limiting element is bridge with TVS pipe structure.
The discharge element of LCKF is gas discharge tube, the pressure limiting element is a line, the line TVS tube, LCKF has a greater end discharge and limited pressure capacity than the LCKE
Parameter
Product number |
LCKF-24 |
Max Voltage Uc |
28V |
Protection level Up |
≤50KV |
Nominal discharge current(8/0.02mS) In |
10KA |
Maximum discharge current(8/0.02m S) Imax |
10KA |
System rate Voltage Un |
24v |
TVS quantity |
1 |
LCKE-24 | |
Coordination mode |
Diode bridge |
Maximum frequency of use |
100Mbit/100MHz |
insertion loss |
0.1dB |
Connection and installation | |
Recommend the wire diameter |
0.5-2.5 |
Install method |
DIN35 Rail Mounting |
Installed environment |
No significant vibration and shock |
protection class |
IP20 |
Elevation |
≤4000m |
Relative humidity |
30%~90% |
Interface mode |
connection terminal |
Shell material |
Flame retardant plastics |
Please kindly contact us for more details!
