Nation Standard 8inch 12 bar portable elastic heat resistant Flexible PVC lined lay flat fire hoses/pipe
APPLICATION OF HOSE:

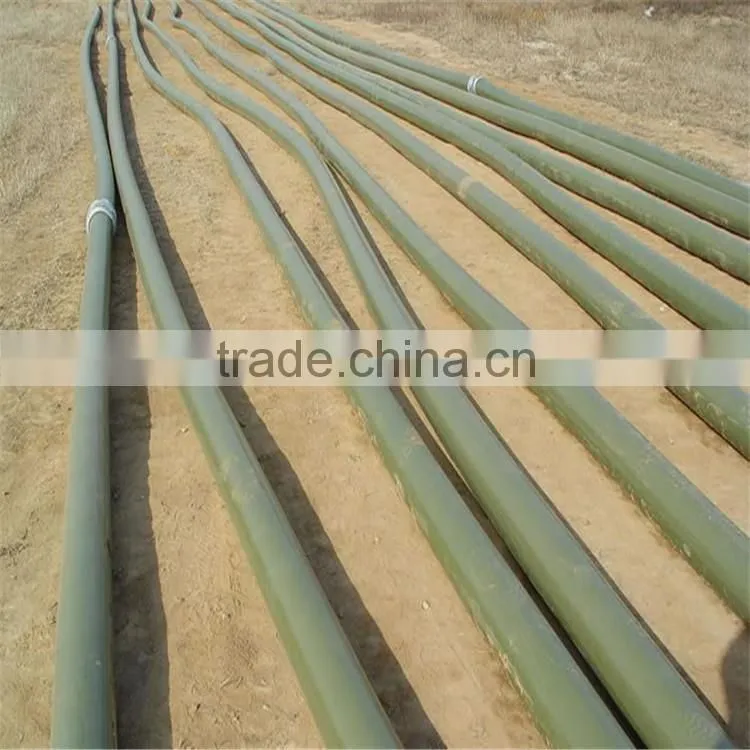

AGRICULTURE - Drip Irrigation, Sprinkling, Dewatering, Grain Chutes
FORESTRY - Fire Fighting, Sprinkler, Water Supply Line.
MINING - Leaching,Dewatering, Pumping, Dust Chutes, Waste Water Disposal, Ventilation
MARINE - Water Supply for Ships, Unloading of Vessels, Submarine Exploration.
MUNICIPALITIES- Fire Prevention, Emergency Sewage, Flood Control Lines, Horticulture
CONSTRUCTION - Concrete Chutes, Boring, Dewatering, Pile Driving, Hydraulicing
FISHERY - Fish Farming
1.PVC-Nitrile Rubber hose
Pvc-Nitrile Rubber Hose is a ribbed nitrile oil resistant discharge layflat hose.It is lighter and less bulky than most rubber discharge hoses. and resisits abrasion and weathering.Used in many varied applications, with limited oil and chemical use. Resisits kinking and stretching while in service.

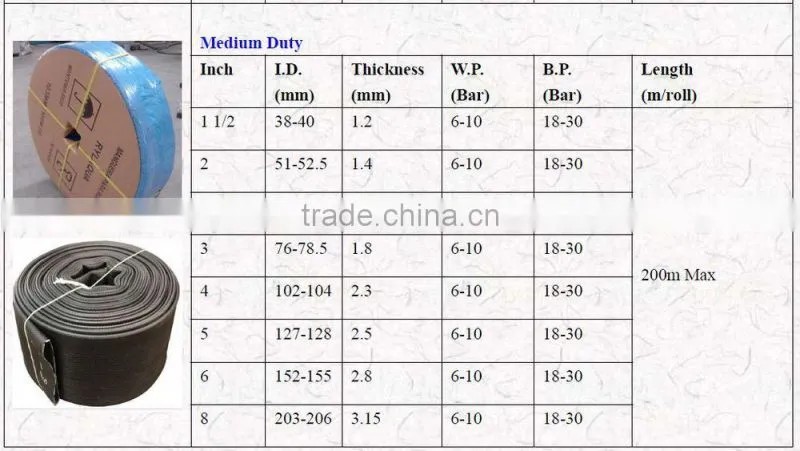

Specification of Layflat Hose
| inside diameter | wall thickness mm | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 38.1 | 1 1/2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
| 63.5 | 2 1/2 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
| 76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
| 152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
| 203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
| 254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
| 304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||
2.PVC Lay Flat Hose
pvc lay flat hose is a pvc discharge layflat hose that resiststs kinking and twisting.This hose is designed as a standard duty hose for water discharge in industrial and construction applications, and is economical and rolls up flat for easy storage.
3.TPU Lay Flat Hose
TPU (Thermoplastic polyurethanes) is increasingly popular. It is proud of its superior performance and the concept of environmental protection. At present, TPU can become better substitute of PVC, with excellent abrasion resistance, oil resistance, temperature resistance.
Applications:
irrigation
Flyboard

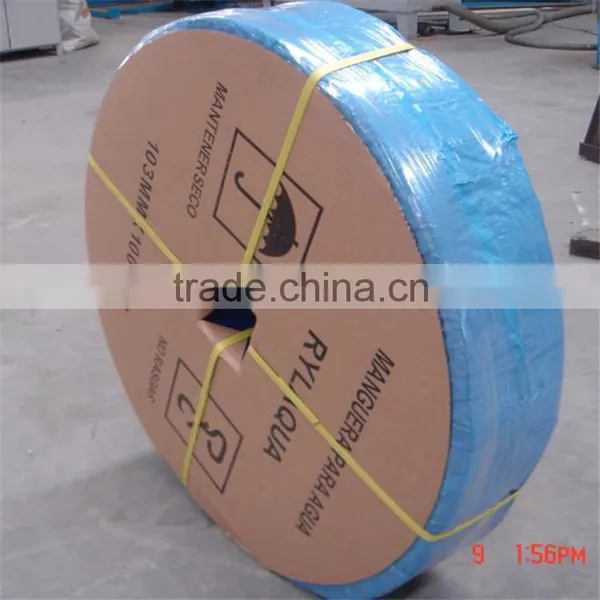

Packaging:
Plastic film, woven bags and any other forms as per customers' requests
Shipping: By Sea
Delivery Date: 7-15 Days
Any requirments from customers could be met, making customers happy and satisfied with any type of products.

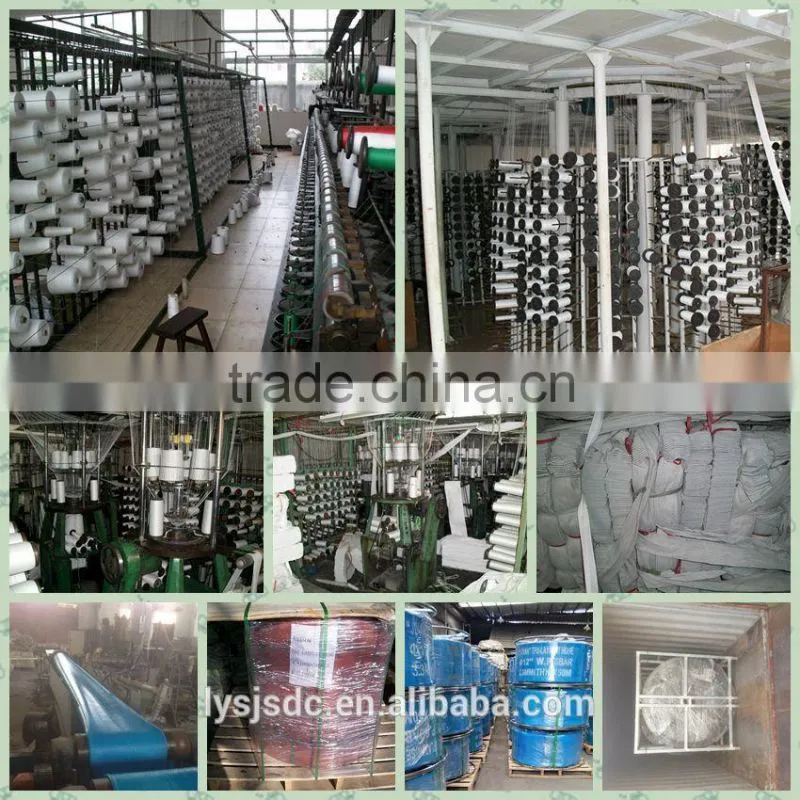

We, Linyi Saijun Pipe Co.,Ltd, are more than 10 years manufacturer of layflat hose from China, which have passed ISO9001 and high pressure lay flat hose-Patent No.200920163127X.
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.
Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m, but for first cooperation we also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
