Automatic 3-5 Gallon Barreled Water Filling Equipment
Introduction
1. This machine is used to produce 5 gallon drinking water.
2. This machine composed with Rinse, filler and capper.
3. It is the ideal equipment for mineral water, distilled water and pure water producing process.
4. The machine is made of great stainless steel which is corrosion resistant and easy cleaning.
5. All the pneumatic parts are from the famous brand AIRTAC.
6. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company.
7. The machine works reliably and efficiently based on the compact structure and high automatic technology.
8. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
9. The main parts of the system are imported. The filling nozzle are imported from American famous brand
- Intelligent management,PLC control
- Electric part from SIEMENS Germany
- Pneumatic parts from AIRTAC Taiwan
- Stainless steel is food grade
- Automatic cap unscrambler
- Automatic protection device
Automatic 3-5 Gallon Barreled Water Filling Equipment
Technical Parameters
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Overall dimension (mm) | 3790×650 | 3550×800 | 3550×1200 | 3650×1500 | 2200×1860 | 2560×2350 | 3100×2800 |
| ×1550 | ×1800 | ×1800 | ×1800 | ×2700 | ×2750 | ×2750 | |
| 2800×1100 | 3800×1100 | 3800×1100 | not include cleaning | not include cleaning | not include cleaning | ||
| ×1800 | ×1800 | ×1800 |
Automatic 3-5 Gallon Barreled Water Filling Equipment

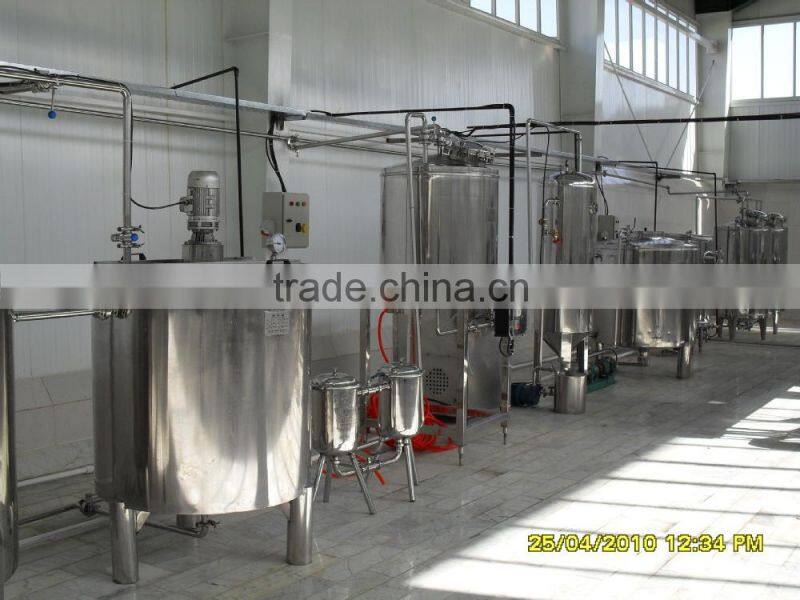

water treatment equipment

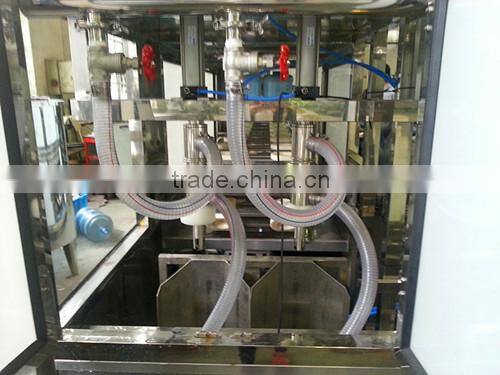

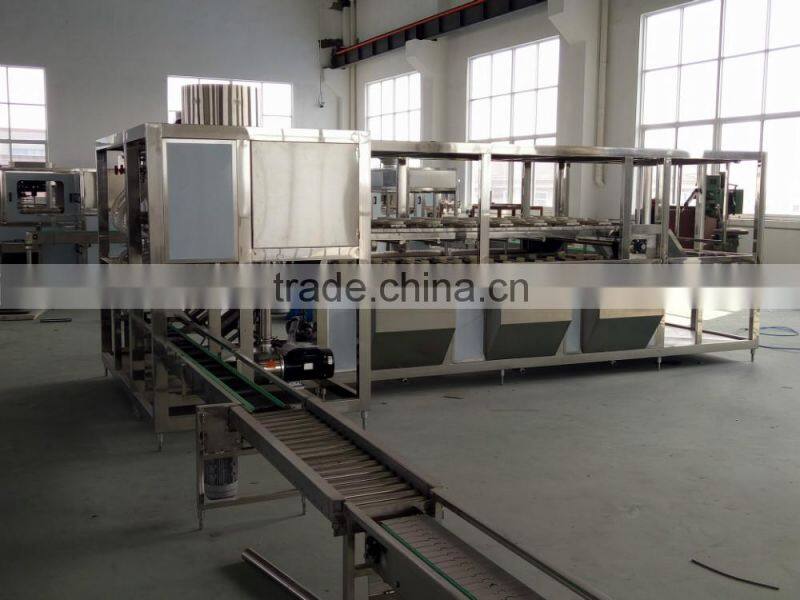

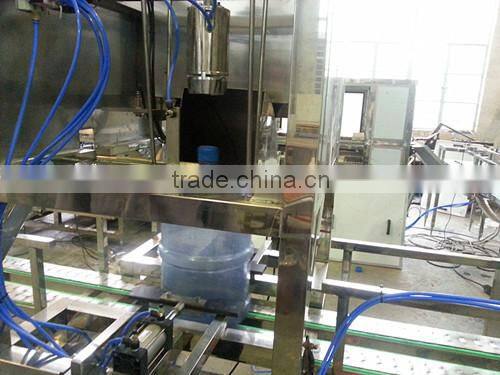

5 gallon filling machine
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
3.If we get the permission of the customers who have bought the machines from us,we can provide you theircontact information and you can go and visit.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
After-sales service
1.We will deliver the machine and provide the BL on time to make sure you can get the machine quickly.
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer teamwill go to your
factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free
Zhangjiagang Chun Yuan Machinery Co., Ltd. has been specialized in the production of beverage machinery for many years.It is a professional manufacturer of beverage packaging solutions. we have rich experience in manufacturing and maintenance.We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans.different sizes bottle from 100ML to 20L can be filled.
We are providing customized services to supply customers with the most suitable machine.
Cooperation Brand
To make the machine has a long life,and Reduce the maintenance,we buy the materials from famouse company,who has branch all over the world,and can quikly help you with some problems.
