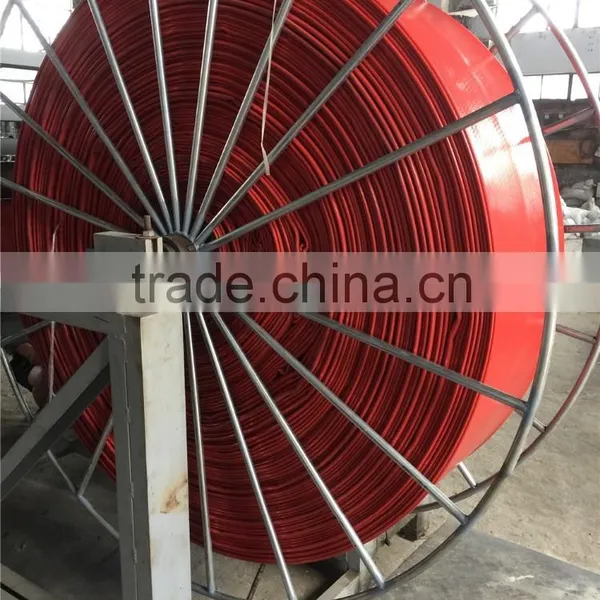

Large diameter and high pressure Agriculturer water lay flat hose reel

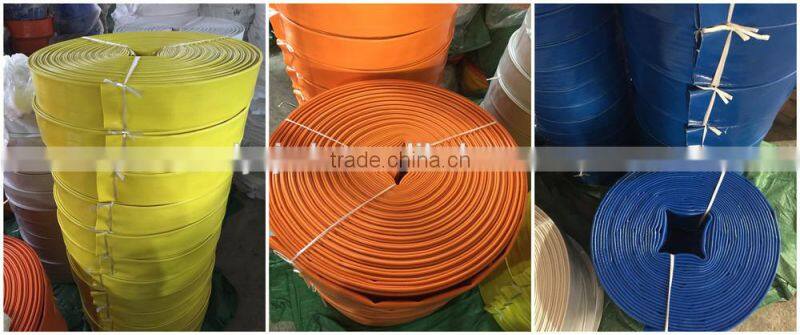

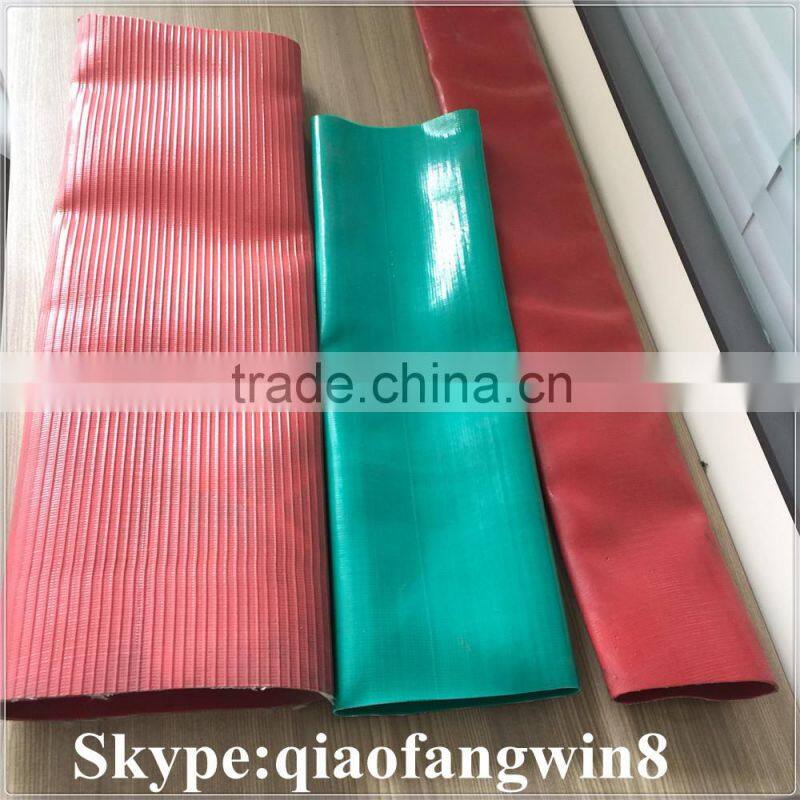

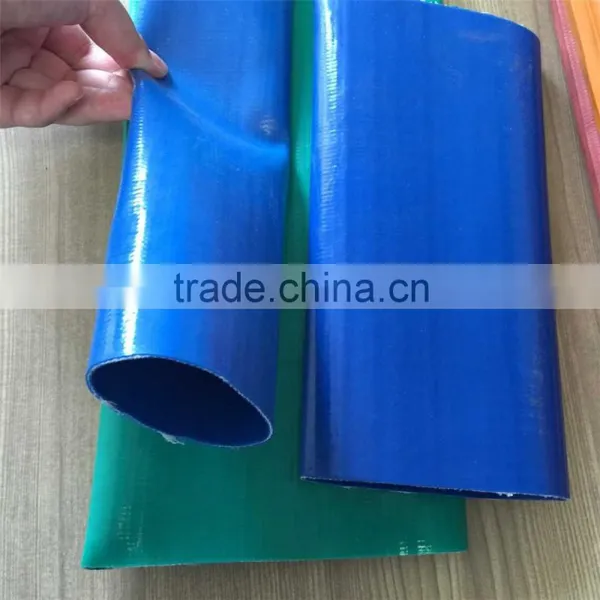

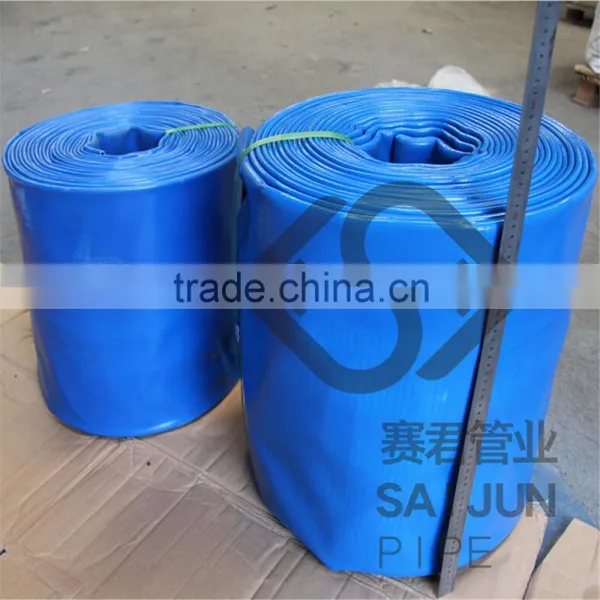

1. PVC Lay Flat Hose
This hose is a PVC discharge lay-flat hose that resists kinking and twisting. This hose is designed as a standard duty hose for water discharge in industrial and construction applications, and is economical and rolls up flat for easy storage.
Large diameter and high pressure Agriculturer water lay flat hose reel
Inner Diameter |
Wall Thickness(mm) |
||||||||
MM |
Inch
|
0.2 MPa |
0.4 MPa |
0.6 MPa |
0.8 MPa |
1.0MPa |
1.5MPa |
2.0 MPa |
2.5MPa |
25.4 |
1 |
1.4 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.6 |
2.8 |
38.1 |
1 1/2 |
1.4 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.6 |
2.8 |
50.8 |
2 |
1.4 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.6 |
3 |
63.5 |
2 1/2 |
1.4 |
1.7 |
2 |
2.2 |
2.4 |
2.6 |
2.8 |
3.2 |
76.2 |
3 |
1.5 |
1.8 |
2.1 |
2.3 |
2.5 |
2.8 |
3 |
3.2 |
101.6 |
4 |
1.5 |
1.8 |
2.1 |
2.3 |
2.5 |
2.8 |
3 |
3.2 |
127 |
5 |
1.5 |
1.8 |
2.1 |
2.3 |
2.5 |
2.8 |
3 |
|
152.4 |
6 |
1.6 |
2 |
2.2 |
2.5 |
2.8 |
3 |
3.2 |
|
203.2 |
8 |
1.8 |
2.3 |
2.5 |
2.8 |
3 |
3.2 |
||
254 |
10 |
2 |
2.3 |
2.8 |
3 |
3.2 |
|||
304.8 |
12 |
2.4 |
2.8 |
3 |
3.2 |
3.4 |
|||
Large diameter and high pressure Agriculturer water lay flat hose reel

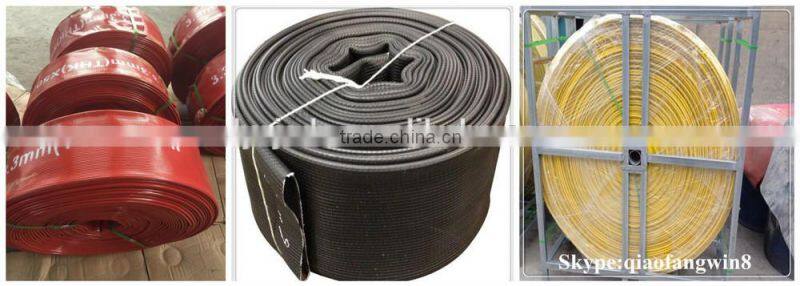

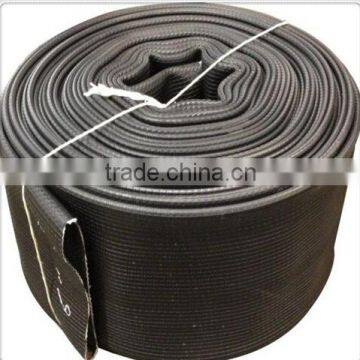

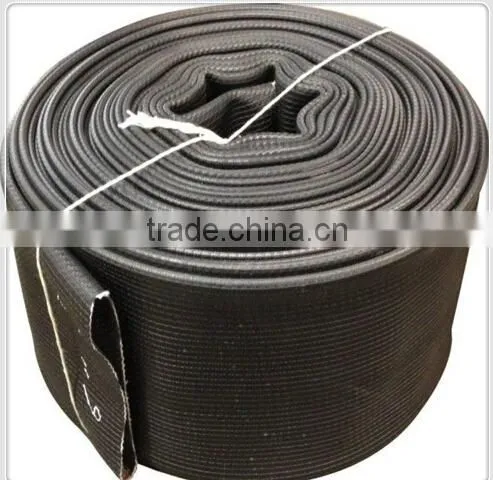

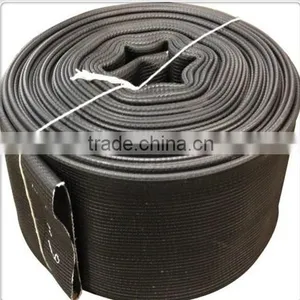

3. TPU layflat hose
Large diameter and high pressure Agriculturer water lay flat hose reel
Cover and Lining: PU, Ribbed cover or smooth cover
Reinforcement Jacket: High-tenacity synthetic jacket
Color: Blue, Green,Black, Red,
Application:Irrigation, Pumping of sludge and liquid fertilizers, supply or drag hose
Avaiable length: 30m (100ft), 61m(200ft), 91.5m (300ft), 100m (330ft) 200m(660ft)
This hose is made from extruded thermoplastic polyester based polyurethane (TPU)
with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn.
The "extrusion through-the-weave" production method gives a very strong bonding
between cover and lining as well as firmly encapsulating the woven polyester.
SPECIFICATION
Large diameter and high pressure Agriculturer water lay flat hose reel
| Inner Diameter | Wall Thickness(mm) | ||||||
| MM | Inch | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 101.6 | 4 | 2 | 2.66 | 3.2 | 3.6 | 4.2 | 5 |
| 127 | 5 | 2.1 | 3.2 | 3.4 | 4.3 | 5 | 5.7 |
| 152.4 | 6 | 2.4 | 3.2 | 4 | 5 | 5.8 | 6.5 |
| 203.2 | 8 | 2.8 | 3.7 | 4.5 | 5.2 | 6 | |
| 254 | 10 | 3 | 4 | 5 | 5.8 | 6.7 | |
| 304.8 | 12 | 3.3 | 4.4 | 6 | 7.5 | ||
Large diameter and high pressure Agriculturer water lay flat hose reel
Applications
•Agriculture: irrigation, mobile sprinkler, drip irrigation
•Mine: emergency drainage, water supply
•Construction: temporary water supply
•Industry: sewage, aeration
•Oil well washing to remove sediment
•Long distance water supply for the exploitation of shale gas
Large diameter and high pressure Agriculturer water lay flat hose reel
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m each size, but for first cooperation we also accept little order, so any order is welcomed.

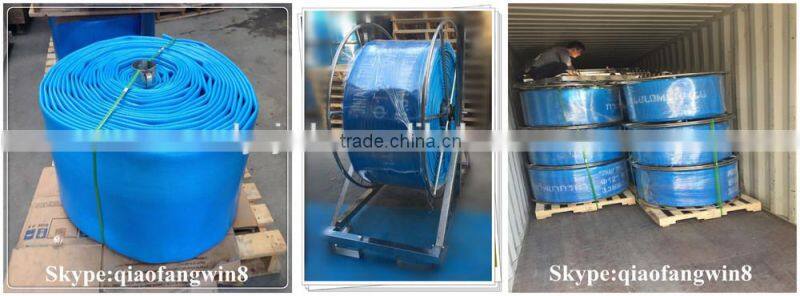

4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.

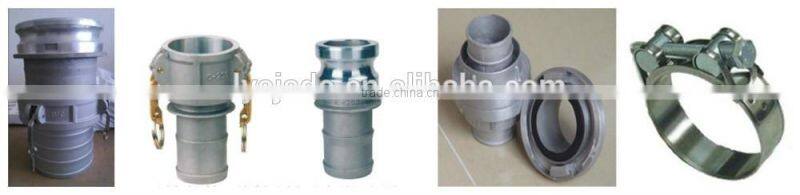

5. About hose connector
we can also supply according to your request, following is our common type coulpings.
