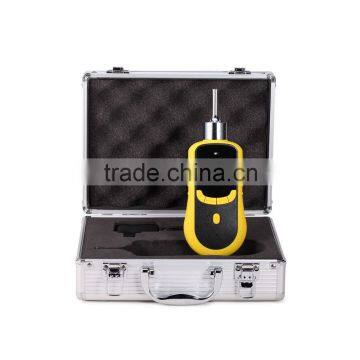

Help CenterPortable Built-in Pump N2 Nitrogen Gas Sensor
Related Products
-
Built-in Sampling Pump 0-100%LEL EX Flammable Natural Gas SensorUS$ 350 - 500MOQ: 1 Piece -
Handheld Built-in Pump 0-100%VOL O2 Oxygen SensorUS$ 399 - 1,599MOQ: 1 Piece
-
Handheld High Precision 0.001ppm LCD Display Ozone O3 MeterUS$ 399 - 2,999MOQ: 1 Piece
-
Portable High Accuracy CLO2 Chlorine Dioxide Measuring DeviceUS$ 399 - 1,099MOQ: 1 Piece
-
Portable Built-in Pump 0-100%VOL Range O2 Oxygen ApparatusUS$ 499 - 1,599MOQ: 1 Piece
Specifications
Nitrogen gas sensor1. Unit PPM, mg/m3 can be shifted quicky
2. Optional data storage function
3. Internal sampling pump
Nitrogen gas sensor
Characteristics & Functions
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the nitrogen gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
Specification
Gas Detected |
Nitrogen / N2 |
||
Detection principle |
Electrochemistry |
||
Sampling Method |
Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. |
||
Measure Range |
0-100%VOL |
||
Resolution |
0.01%VOL |
||
Precision |
≤± 2% F.S. |
||
Signal Output |
High-speed data transmission by USB, available for data downloading and printing (optional function) |
||
Response Time |
≤10S |
Recovery Time |
≤10S |
Repeatability |
≤±1% |
Linearity error |
≤±1% |
Zero shift |
≤±1%(F.S/year) |
Display |
LCD dot matrix display |
Operating language |
Chinese/English |
Gas unit |
Units are switchable |
Temperature |
-40℃~70℃ |
Humidity |
0-95%RH |
Explosion-Proof |
ExiaⅡCT4 |
Degree of protection |
IP66 |
Alarm mode |
Sound, light, vibration |
Operating time |
100h(pump off) |
Dimensions |
205*75*32mm |
Weight |
300g |
