Home > Products > Pumping Gas Detector > High Accuracy PID volatile organic compound VOC sensor

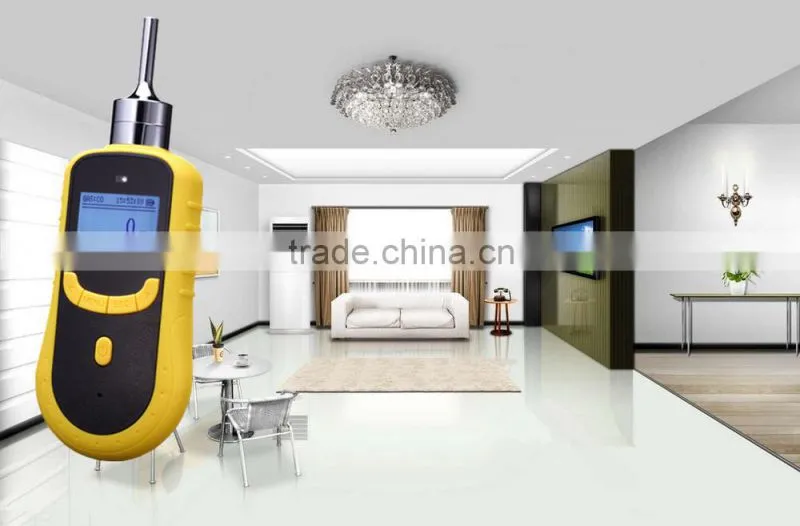

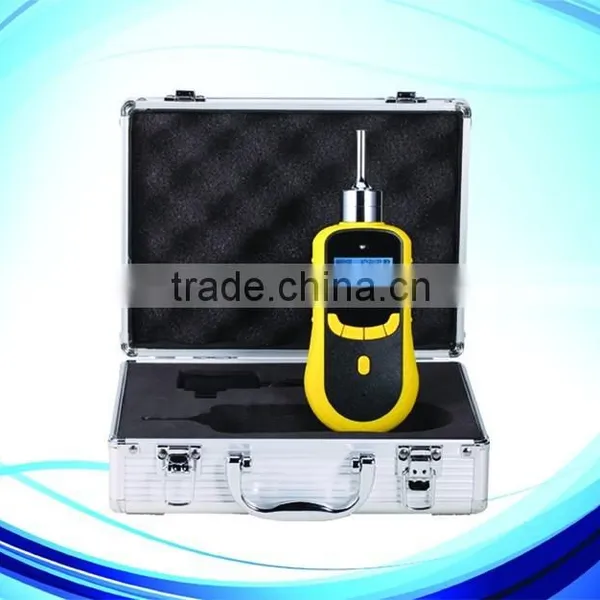

High Accuracy PID volatile organic compound VOC sensor
- 100 Piece / Pieces per Month
- Shenzhen
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YuanTe | Model Number: | SKY2000-VOC |
Usage: | Gas Sensor | Theory: | Other, PID | Output: | Digital Sensor |
Product Description
Specifications
VOC sensor1. Unit PPM, mg/m3 can be shifted quickly
2. Optional data storage function
3. Built-in micro sampling pump
High Accuracy PID volatile organic compound VOC sensor
Characteristics & Functions
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the VOC concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
Specification
Gas Detected | Volatile organic compound (VOC sensor ) | ||
Detection principle | PID | ||
Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
Measure Range | 0-1ppm, 0-5ppm, 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm, 0-1000ppm, 0-3000ppm, 0-6000ppm, 0-10000ppm | ||
Resolution | 0.001ppm(0-1ppm), 0.01ppm(0-100ppm and below), 0.1ppm(0-200ppm, 0-500ppm), 1ppm (0-1000ppm and above) | ||
Precision | ≤± 2% F.S. | ||
Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional function) | ||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
Operating language | Chinese/English | Gas unit | Units are switchable |
Temperature | -40℃~70℃ | Humidity | 0-95%RH |
Explosion-Proof | ExiaⅡCT4 | Degree of protection | IP66 |
Alarm mode | Sound, light, vibration | Operating time | 100h(pump off) |
Dimensions | 205*75*32mm | Weight | 300g |
