Help CenterHigh Resolution Ozone Analyzer for Ozone Disinfection
Related Products
-
0-100ppm Digital Portable Hydrogen Sulfide Gas DetectorUS$ 199 - 499MOQ: 1 Piece -
Portable Pumping Formaldemeter With Storage FunctionUS$ 399 - 899MOQ: 1 Piece
-
Portable PH3 Phosphine Gas Tester With Internal PumpUS$ 599 - 1,399MOQ: 1 Piece
-
LCD Display High Quality N2 Nitrogen Gas TesterUS$ 599 - 1,099MOQ: 1 Piece
-
Automatic O3 Ozone Detector/ozone Measuring (ppm, Mg/m3 )US$ 405 - 999MOQ: 1 Piece
Specifications
ozone analyzer1. Employing original imported sensor
2. Optional data storage function
3. Built-in micro sampling pump

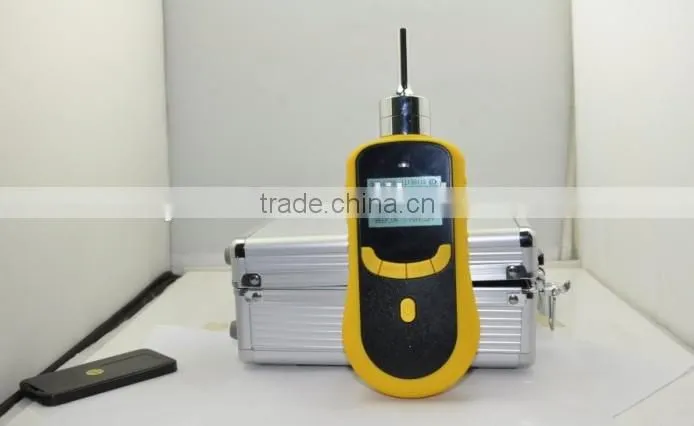

High resolution ozone analyzer for ozone disinfection
Characteristics & Functions
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the specified gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
High resolution ozone analyzer for ozone disinfection
Specification
Gas Detected |
Ozone (O3) |
||
Detection principle |
Electrochemistry |
||
Sampling Method |
Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. |
||
Measure Range |
0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm,0-1000ppm |
||
Resolution |
0.001ppm,0.01ppm,0.1ppm,1ppm |
||
Precision |
≤± 3% F.S. |
||
Signal Output |
High-speed data transmission by USB, available for data downloading and printing (optional) |
||
Response Time |
≤10S |
Recovery Time |
≤10S |
Repeatability |
≤±1% |
Linearity error |
≤±1% |
Zero shift |
≤±1%(F.S/year) |
Display |
LCD dot matrix display |
Operating language |
Chinese/English |
Gas unit |
Units are switchable |
Temperature |
-40℃~70℃ |
Humidity |
0-95%RH |
Explosion-Proof |
ExiaⅡCT4 |
Degree of protection |
IP66 |
Alarm mode |
Sound, light, vibration |
Operating time |
100h(pump off) |
Dimensions |
205*75*32mm |
Weight |
300g |
Company Profile
Shenzhen YuanTe Technology Co., Ltd. is a high-tech enterprise integrated research and development, manufacturing and service. By independent research and development, cooperative development and learning the latest developed countries’ technologies, YuanTe has guaranteed its leading position domestically and in line with foreign counterparts in its products and technologies. We welcome distribution agent, OEM, ODM. YuanTe would like to join hands with you to create a better future.
Our service:
1.For all our customers, we guarantee one year warranty, and life-long maintenance.
2.All inquiries will be replied in 24 hour.
3.We will provide technical support, our engineers will help to solve the problems you met.
4.We can provide OEM service.
5.We are manufacturer with own factory, welcome to visit our factory.
6.All products will be well checked and well packed before shipment, and qualification certificatewill be provided.
Company Information:
Shenzhen YuanTe Technology Co., Ltd.
Add: 4F, B building, No.7, Sanhe village, Tongsheng community, Dalang street, Longhua new district, Shenzhen, China.
Web:
Tel: 86-755-26722925
Fax: 86-755-85258143
Mob: 86-15118080072
High resolution ozone analyzer for ozone disinfection
