Home > Industrial Equipment & Components > Engine & Part > Engine > Lpg Vaporizer for Small Engine

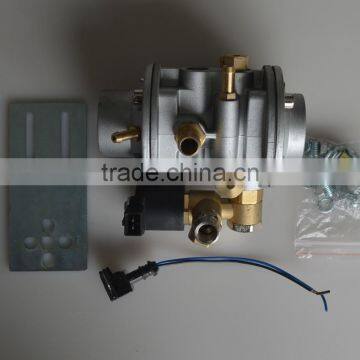

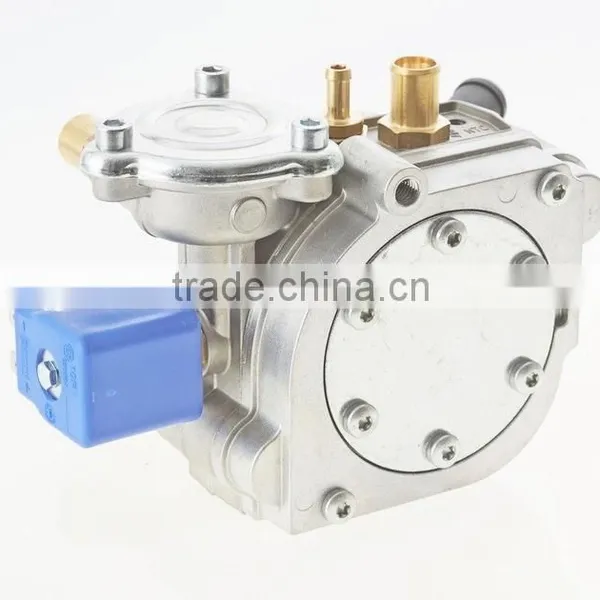

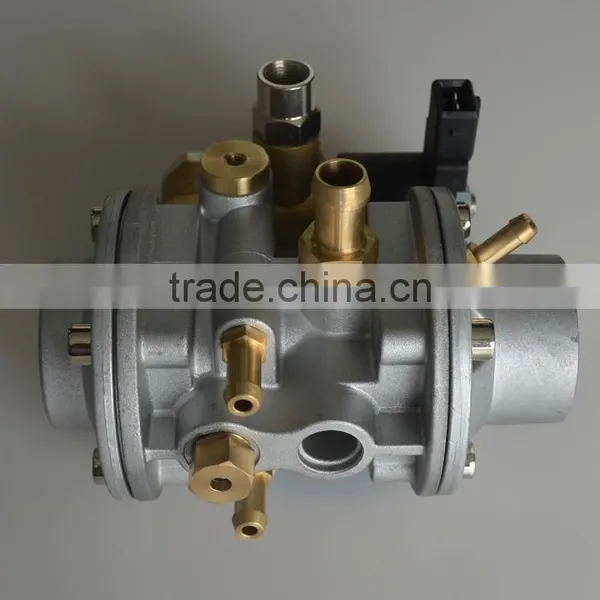

Lpg Vaporizer for Small Engine

Lpg Vaporizer for Small Engine thumbnail-3

Lpg Vaporizer for Small Engine thumbnail-4

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Other, CNG LPG, Directing-acting

Size:

Standard Size

Car Make:

all kinds

Contact Supplier Request Quote Chat Now

Xian Yuanshun Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjing shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, CNG LPG, Directing-acting

Size Standard Size

Car Make all kinds

OE NO. No

Place of Origin Shaanxi, China

Brand Name YS

Model Number YS

Warranty 12 Months

lpg vaporizer for small engine

Parameters:

Tomasetto Reducer AT-07

Working Voltage	DC12V
Maximum Inlet Pressure	3 Mpa
Maximum Outlet Pressure	Variable from 90 to 180 kPa
Engine Power	from 80 to 135 HP, with T>-10 °C
Outlet Connection	Fixed fitting ø12 mm
Inlet Connection	M10*1 pipe ø6 mm
Flow Rate	from 20 to 29kg/h
Applicable Environment Temperature	-10~40 C
Drive Mode	electromagnetism
Material	Aluminium die cast body
Size	120125105 mm
Gross Weight	1.5 kg

Tomasetto Reducer AT-12

Working Voltage	DC12V
Maximum Inlet Pressure	26 Mpa
Maximum Outlet Pressure	1-2.5bar
Engine Power	250 HP (185 KW)
Outlet Connection	Fixed fitting Ø14 mm
Inlet Connection	Φ6mm, M12*1
Flow	35 Nkg/h (cng density 0.68 kg/m3)
Vacuum Level	Third
Applicable Environment Temperature	-10~40 C
Drive Mode	electromagnetism
Nominal Diameter	6mm
Shell Material	Aluminum Alloy
Type (Channel Position)	Directing-acting
Size	120140155mm
Gross Weight	1.5 kg

Tomasetto Reducer Lpg At-09

Maximum input pressure	22000KPa(220Bbar)
Maximum output pressure	110KPa (1.1bar)
Maximum flow	More than15Nm3/h
Working pressure	Less than20Mpa (200bar)
Working voltage	DC12V
Dimension	180140120mm
Weight	2100g
GW/NW	24KG/23KG
Package	Carton coverd with Nylon
Carton size	610365245mm
PCS/CTN	10PCS

TF Reducer

Name	Metano Sequential Injection Reducer
Max inlet gas pressure	25 Mpa
Max working pressure	20 Mpaa
2nd stage output pressure	0.7Mna-2.5Mna
Working Temperature	-40℃+120℃
Pressure stage number	2
Working voltage	8-16v
Working medium	CNG
Max flow	≥40Nm³/H
Stand	GB/T 20735-2006

BRC Regulator

Working Voltage	DC12V
Inlet Pressure	≤25Mpa
Outlet Pressure	0.11~0.3Mpa
Inlet Thread	M12×1.0
Vacuum Hose Diameter	Φ4mm
Supporting Pipe Diameter	Φ8mm
Rated Flow	20~80L/H
Vacuum Level	Third
Applicable Environment Temperature	-40~120°C
Drive Mode	electromagnetism
Nominal Diameter	6mm
Shell Material	Aluminum Alloy
Flow Direction	Undirection
Type (Channel Position)	Directing-acting
Size	13317594mm
Gross Weight	1.45 kg

Shipping

1. Ship worldwide from by FEDEX, DHL, UPS, TNT, EMS and Post Service, Air cargo and Sea.

2. Buyer is responsible for all applicable customs, import duties and VATS.

3. We can declare package with lower value if customer require.

Our Services

Our after-sales service start immediately after signing the contract.
1. Source the lowest freight cost for customers' reference. Provide forwarder information and book vessel for customers.
2. The products and shipment pictures will be provided if no final inspection.
3. Manual & instructions for Installation are provided in goods package.
4. All our products have 1-year warranty.

More products details, welcome to contact us .
