Home > Products > CNG/LPG reducer > ngv regulator for gas conversion kits

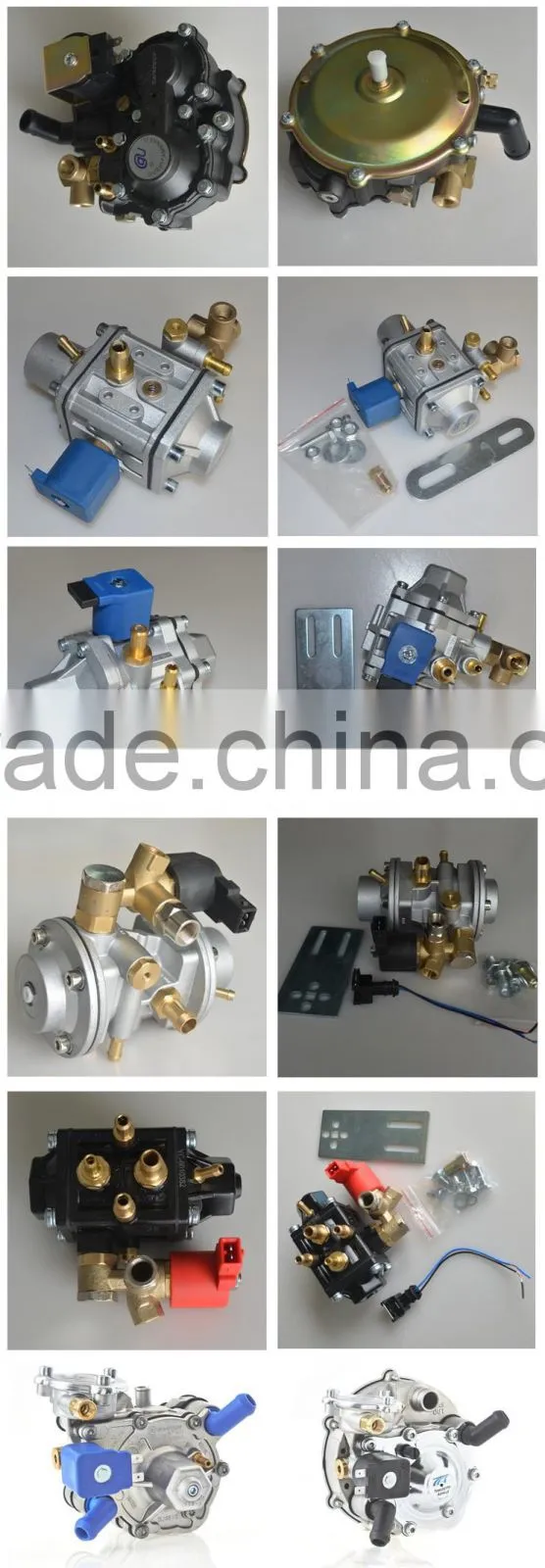

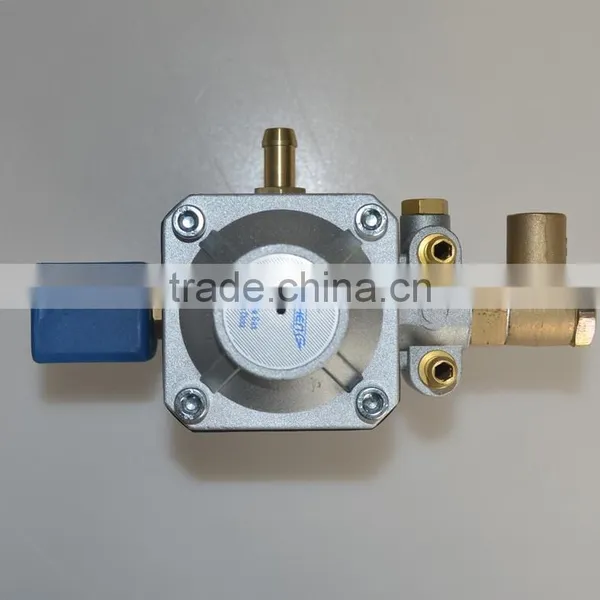

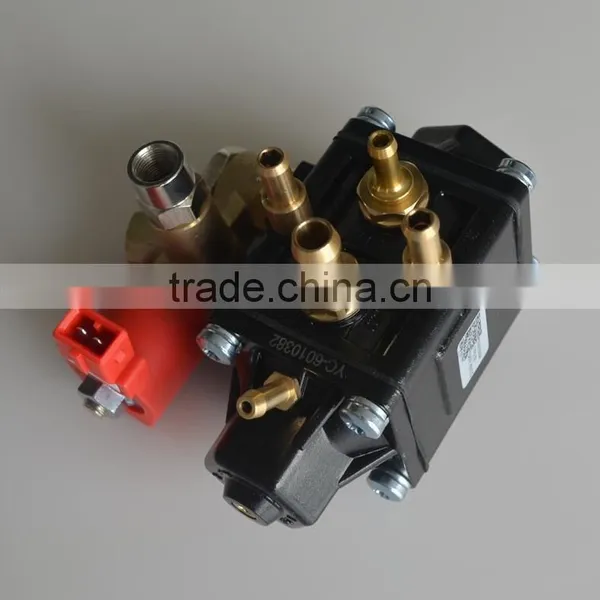

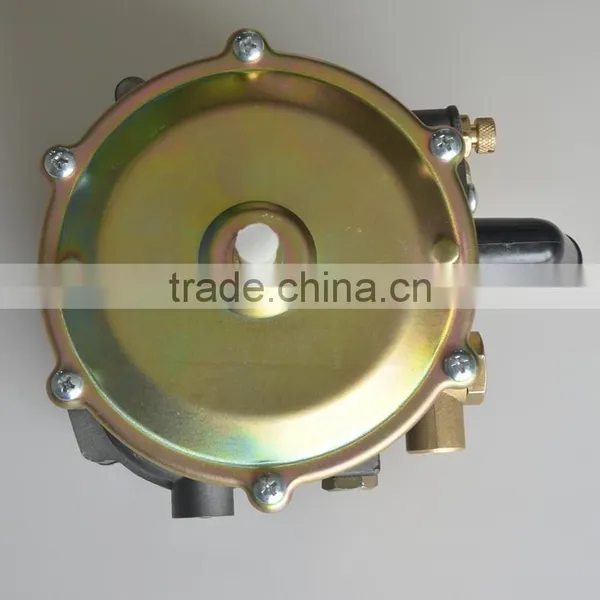

ngv regulator for gas conversion kits
- 100000 Piece / Pieces per Month
- XI'AN
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Other, CNG LPG, Directing-acting | Size: | Standard Size | Car Make: | all kinds |
OE NO.: | No | Place of Origin: | Shaanxi, China | Brand Name: | YS |
Model Number: | YS | Warranty: | 12 Months |
Product Description
ngv regulator for gas conversion kits
Parameters:

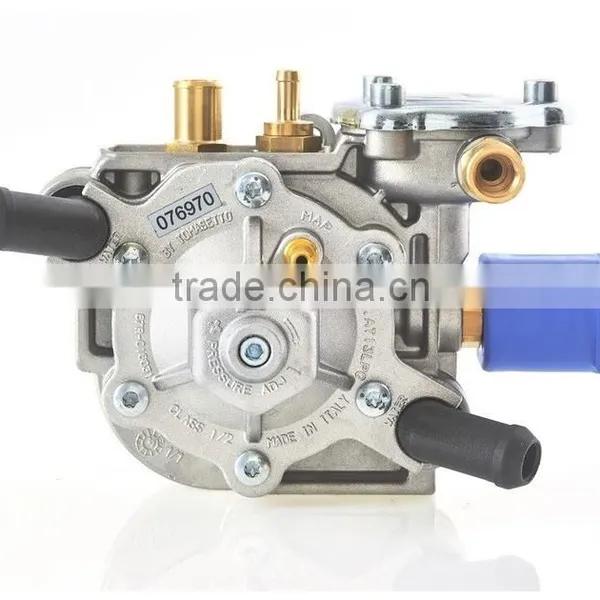

Tomasetto Reducer AT-07
Working Voltage | DC12V |
Maximum Inlet Pressure | 3 Mpa |
Maximum Outlet Pressure | Variable from 90 to 180 kPa |
Engine Power | from 80 to 135 HP, with T>-10 °C |
Outlet Connection | Fixed fitting ø12 mm |
Inlet Connection | M10*1 pipe ø6 mm |
Flow Rate | from 20 to 29kg/h |
Applicable Environment Temperature | -10~40 C |
Drive Mode | electromagnetism |
Material | Aluminium die cast body |
Size | 120*125*105 mm |
Gross Weight | 1.5 kg |
Tomasetto Reducer AT-12
Working Voltage | DC12V |
Maximum Inlet Pressure | 26 Mpa |
Maximum Outlet Pressure | 1-2.5bar |
Engine Power | 250 HP (185 KW) |
Outlet Connection | Fixed fitting Ø14 mm |
Inlet Connection | Φ6mm, M12*1 |
Flow | 35 Nkg/h (cng density 0.68 kg/m3) |
Vacuum Level | Third |
Applicable Environment Temperature | -10~40 C |
Drive Mode | electromagnetism |
Nominal Diameter | 6mm |
Shell Material | Aluminum Alloy |
Type (Channel Position) | Directing-acting |
Size | 120*140*155mm |
Gross Weight | 1.5 kg |
Tomasetto Reducer Lpg At-09
Maximum input pressure | 22000KPa(220Bbar) |
Maximum output pressure | 110KPa (1.1bar) |
Maximum flow | More than15Nm3/h |
Working pressure | Less than20Mpa (200bar) |
Working voltage | DC12V |
Dimension | 180*140*120mm |
Weight | 2100g |
GW/NW | 24KG/23KG |
Package | Carton coverd with Nylon |
Carton size | 610*365*245mm |
PCS/CTN | 10PCS |
TF Reducer
Name | Metano Sequential Injection Reducer |
Max inlet gas pressure | 25 Mpa |
Max working pressure | 20 Mpaa |
2nd stage output pressure | 0.7Mna-2.5Mna |
Working Temperature | -40℃+120℃ |
Pressure stage number | 2 |
Working voltage | 8-16v |
Working medium | CNG |
Max flow | ≥40Nm³/H |
Stand | GB/T 20735-2006 |
BRC Regulator
Working Voltage | DC12V |
Inlet Pressure | ≤25Mpa |
Outlet Pressure | 0.11~0.3Mpa |
Inlet Thread | M12×1.0 |
Vacuum Hose Diameter | Φ4mm |
Supporting Pipe Diameter | Φ8mm |
Rated Flow | 20~80L/H |
Vacuum Level | Third |
Applicable Environment Temperature | -40~120°C |
Drive Mode | electromagnetism |
Nominal Diameter | 6mm |
Shell Material | Aluminum Alloy |
Flow Direction | Undirection |
Type (Channel Position) | Directing-acting |
Size | 133*175*94mm |
Gross Weight | 1.45 kg |
Shipping
1. Ship worldwide from by FEDEX, DHL, UPS, TNT, EMS and Post Service, Air cargo and Sea.
2. Buyer is responsible for all applicable customs, import duties and VATS.
3. We can declare package with lower value if customer require.
Our after-sales service start immediately after signing the contract.
1. Source the lowest freight cost for customers' reference. Provide forwarder information and book vessel for customers.
2. The products and shipment pictures will be provided if no final inspection.
3. Manual & instructions for Installation are provided in goods package.
4. All our products have 1-year warranty.
More products details, welcome to contact us .
