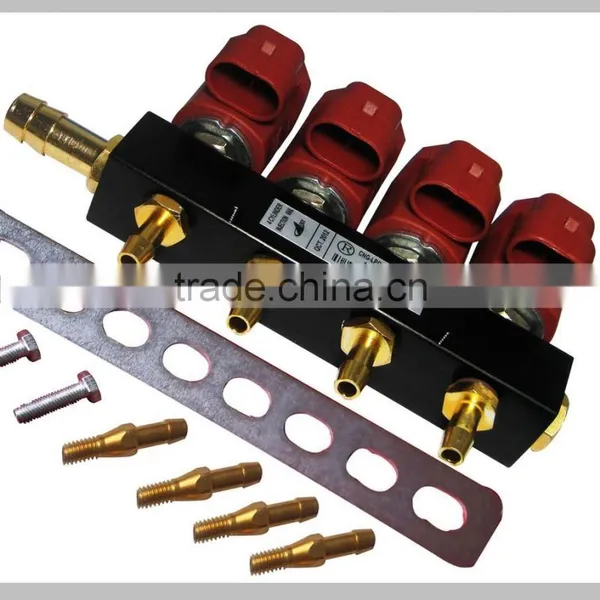

vehicles lpg cng gas equipment parts tr3 valve cylinders kits injection lpg injection cng injector rail for cars
Description:
According to the need of engine and burning gas ECU command, the injector injects fuel into cylinder quickly and accurately. Its advantages are small & compact shape structure, low noise, stable injection flow, easy to clean, stainless steel internal magnetic tube, excellent anti- friction property. it also can be regulated according to engine's working situation at any time.
Product properties:
1. Stable performance
2. Long working life & low noise
3. Adjustable flow
4. Simple structure of the internal design
5. Coil has excellent 30% flame retardant and antiknock performance
6. Insulation class: F grade
7. Steady connecting line interface
8. ED: 100%
9. Coil protection grade: IP65
10. Coil temperature resistant range: B.H
Specification Data:
item |
Car LPG CNG injection-rail |
Specification |
3/4/6/8 cylinder |
working medium |
car liquefied petroleum gas or compressed natural gas |
operating pressure |
0.5-2.5bar |
maximum pressure |
4.5bar |
maximum bearing pressure |
8bar |
operating voltage |
DC 12V±10% |
coil resistance |
1Ω or 3Ω or 6Ω |
operating frequency |
150HZ |
air inlet |
Φ16xΦ10 rubber tube |
air outlet |
G1/8 thread, connector internal diameter Φ7 |
port thread |
M12*1 |
nozzle flow range |
1.0~4.0mm(+0.04mm) |
temperature range |
-20°C~120°C |
turn-on time |
2.5ms±5% |
off time |
2.0ms±5% |
flow error |
±0.4%L per 10L |
coil color |
red, blue, black, orange available |
valve body color |
white, black, golden, grey available |
application |
the third generation system of LPG/CNG |
Can your factory supply OEM serive?.........................................
Yes, we can. Send us the sample or the detailed speicifications of the products you want to clone →calculate the cost of opening model →start to produce the sample for testing →continue to produce according to your feedback.
