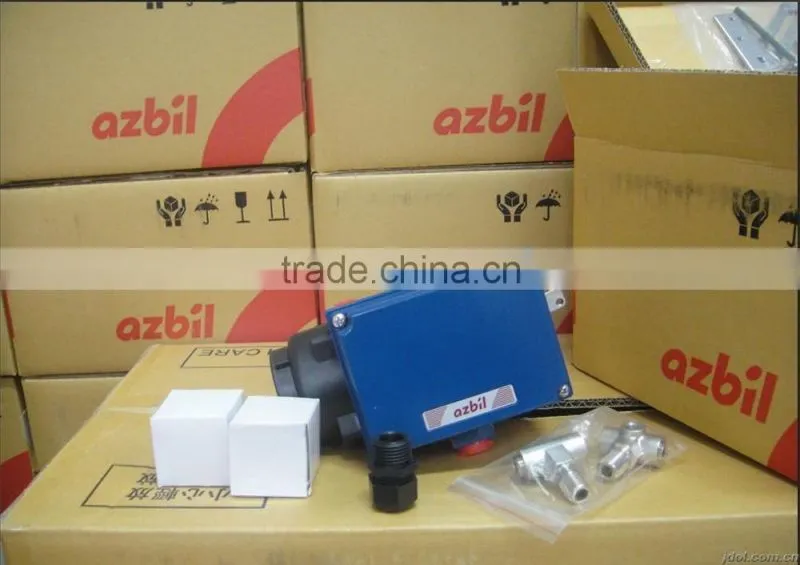

hot!!!!Yamatake valve locator AVP100 AVP102 AVP300 AVP302 reaction use in ball valve

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100000 Set / Sets per Month
Port xi'an
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Control
Pressure	Medium Pressure	Power	Pneumatic
Place of Origin	Japan	Model Number	AVP100 AVP300 etc
Brand Name	Azbil

Product Description

YAMATAKE Azbil Electro Pneumatic Smart Valve Positioner Model AVP100 AVP300

Specifications

1.YAMATAKE Azbil Electro Pneumatic Positioner or Valve locator Model AVP100 smart electric valve positioner AVP100/102 2.High reliability

3.Single model for multiple specifications.

Features:

Easy to use

Auto setup: The auto-setup function is a fully-automatic configuration program which specifies the actuator and adjusts the zero and span of the valve. The program can be turned on simply from an external switch so that adjustments to the valve can be performed quickly and safely in hazardous areas.

High reliability

Positive seating: The positive seating function completely shuts off the valve if the input signal becomes lower than previously set. This in turn enhances the full shut-off capabilities of the valves.
Self-diagnostic: The self-diagnostic function provides with the ability to check the status of the positioner at any time and to alert in case of failure.

Single model for multiple specifications SVP Alphaplus · settings can be changed without replacing any parts. A single model can be modified to suit any application.

Input range: Configurable to any required range for split range
Flow characteristic: Linear, EQ%, Quick opening or custom user characteristics
Actuator type: Single or double acting actuator (optional reversing relay required)

Travel transmission

The model AVP301 transmits a 4-20 mA signal proportional to the valve travel. The valve travel can be monitored from the control room.

High quality original Yamatake SVP3000 Alphaplus Smart Valve Positioner Model AVP100 and AVP102 in stock
