Home > Products > Control system > lcd dsp controller for cnc lathe

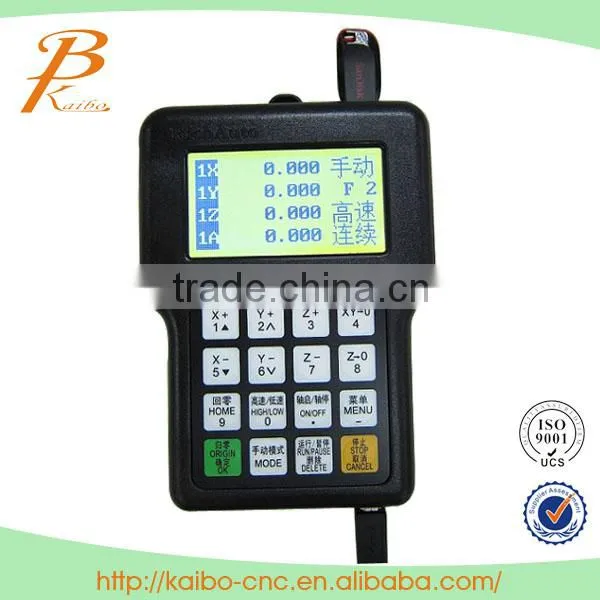

lcd dsp controller for cnc lathe
- 7000 Piece / Pieces per Month
- Jinan/Qingdao
- Credit Card
Product Details
Place of Origin: | Beijing, China | Brand Name: | Rich Auto | Model Number: | DSP-A18 |
Packaging Details
standard export wooden case
Product Description
Product name:
lcd dsp controller for cnc lathe
Parameters:
Product model | RichAuto----A18 |
CPU | DSP |
Internal Memory | 512MB |
Display Screen | 128*64 Monochrome LCD |
Communication Port | U Disk,USB Cable |
Controlled Axis Number | 4 axes |
Control Signal | Differential Signal |
Drive System | Step Motor/Servo Motor |
Min. Input Unit | 0.001mm |
No Volt Protection | Support |
Breakpoint Processing Function | 8 |
External Power Supply Voltage | 24V DC |
Manual Mode | Continuous,Point move,Distance |
Interpolation Way | Line,Arc |
Soft/Hard Limit | Support |
Max. Pulse Frequency | 1MHz |
Password Protection | Support |
Support Language | Simple Chinese/Traditional Chinese,English,other languages |

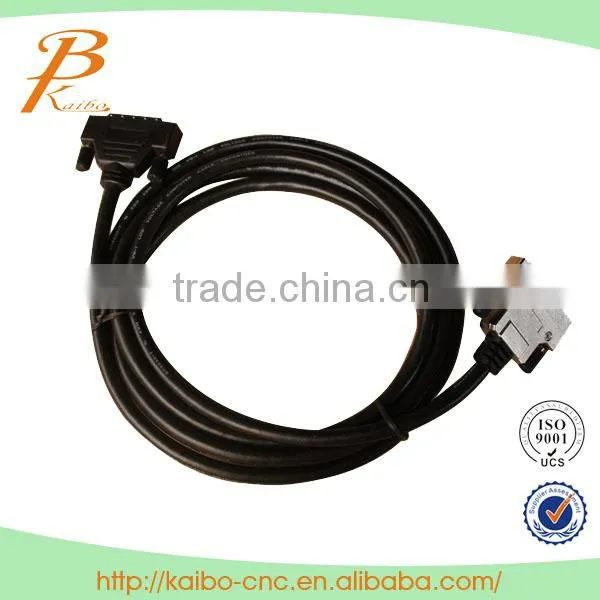

Standard Configuration | (1) DSP Handle;(1) 50 Core Cable (1)USB Cable; (1)8 I/O Wiring board;(1) Data CD |
Feature:
Latest four axes coordinated motion control mode.
Support A/C code format and special M code control.
User definable I/O interface, provide an extensive development platform.
Intelligence processing memory function, support “breaking point processing” and “power failure” function.
More powerful anti-interference performance, pass through multinomial CE tests.
Provide parameters backup and recovery function protect the important parameter from missing.
Achieve complex graph processing, such as cylinder, prism, polyhedron etc.
Widely apply in the system control of Buddha, stair column, sofa and table leg processing equipment and so on.
Effective process and high speed.
