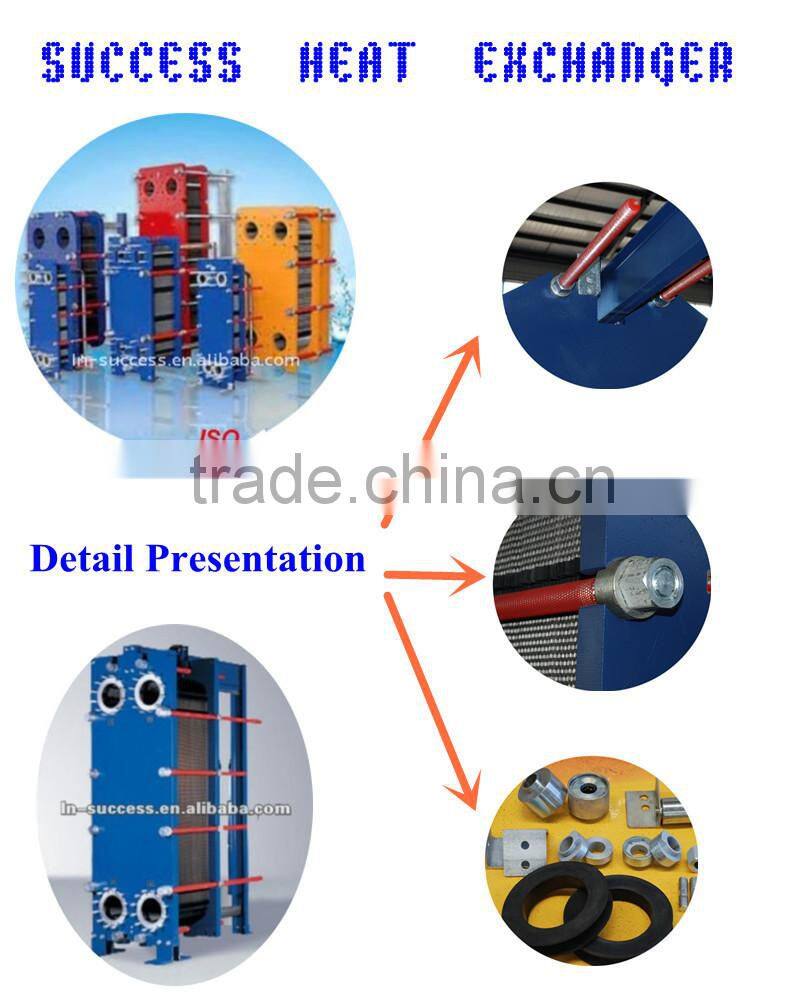

Gasketed Plate Heat Exchanger Evaporative Cooler
- Dalian
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Liaoning, China | |
| Brand Name | SUCCESS | Model Number | MX25, MX25 | |
| Structure | Plate Heat Exchanger | Liquid Flow Rate | 3307 | |
| Maximum Working Pressure | 1.6 | Voltage | 220V | |
| Weight | 6525KG | Dimension(L*W*H) | 2440*1450*2862 | |
| Power(W) | 100 | Certification | Other, ISO9001:2008 | |
| Warranty | 1 YEAR | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.OEM&ODM2.High heat exchange efficiency
3.Safe operation
4.Easy to install
5.Long functional life
Parameters | S50D-I | |
Heat transfer area of plate m2 | 2.0 | |
Chevron depth mm | 3.7 | |
Chevron angle º | 1 | 90 |
2 | 90 | |
Chevron normal pitch mm | 13.05 | |
Equivalent diameter mm | 7.4 | |
Hole diameter mm | 500 | |
Center Distance of holes mm | H | 1831 |
W | 672 | |
Center distance of suspension mm | 2295 | |
Cross section ofsingle passage mm2 | 4398 | |
Overall dimension of plate mm | L | 2412 |
W | 1250 | |
The max. heat transfer coefficient (water to water)W/ m2.ºC | 7500 | |
The max. Working temp.ºC | 180 | |
The max. testing pressure Mpa | 1.6 | |
The max. flow rate M3/h | 3307 | |
No. | ASSY Area m2 | No.of plate | The max. testing pressure Mpa | Dimension mm | Theoretical weight(kg) | ||
L | W | H | |||||
1 | 150 | 75 | 1.6 | 1240 | 1450 | 2862 | 3325 |
2 | 250 | 125 | 1.6 | 1640 | 1450 | 2862 | 4075 |
3 | 350 | 175 | 1.6 | 1840 | 1450 | 2862 | 4830 |
4 | 450 | 225 | 1.6 | 2140 | 1450 | 2862 | 5675 |
5 | 550 | 275 | 1.6 | 2440 | 1450 | 2862 | 6525 |
6 | 650 | 325 | 1.6 | 2840 | 1450 | 2862 | 7275 |
Liaoning Success Thermal Technology Co., Ltd is a highly dedicated company in the domain of development and manufacturing of heat exchangers at world-wide standards. The heat exchangers with up to 1500 m2 exchange surface are supplied for all usual industrial applications as well as for the ranges heating, climate, ventilation, food production, pharmaceuticals.
We are one of the largest manufacturers of plate heat exchangers, gaskets for plate heat exchangers, plates for plate heat exchangers, moulds for plate heat exchangers as well as other accessories related with plate heat exchanger in China.
Consistent development in the field of sealed plate heat exchangers has resulted in a wide variety of plate version with respect to surface structure, material and gaskets for various media on heat exchange.
Plate heat exchanger can offer additional flexibility by changing the number of plates. It can also be adapted to other thermal operating conditions.
Computer programs determine the optimum heat exchanger for your operation conditions based on latest technology.
We provide a wide range of plate heat exchangers to domestic and foreign customers with high quality and low price.
1.Plate Material
Stainless steel suitable for clean water, river water, edible oil and mineral oil
Titanium suitable for sea water, salt water, salt
Hastelloy suitable for sulfuric acid, hydrochloric acid, phosphoric acid
2.Design and Selection
The plate heat exchanger produces by our company strictly follows the rule listed in GB16409-1996 “plate heat exchanger”.
3.Overview
Plate heat exchanger is compact and efficient heat exchange equipment. After the assembly of plates, it forms a special channel which can generate turbulence. The turbulence can easily destroy the fluid boundary layer which greatly reduces thermal resistance and efficiently enhances the heat transfer.
