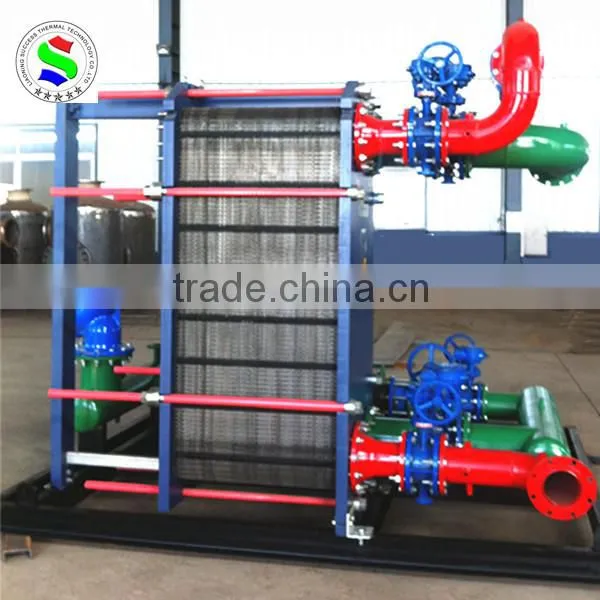

Replace Sondex Gas to Water Forplate Heat Exchanger Unit

Replace Sondex Gas to Water Forplate Heat Exchanger Unit thumbnail-1
Replace Sondex Gas to Water Forplate Heat Exchanger Unit photo-1
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
SUCCESS, SUCCESS
Contact Supplier Request Quote Chat Now
Liaoning Success Thermal Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Liaoning, China
Brand Name SUCCESS, SUCCESS
Model Number s47, s47
Structure Plate Heat Exchanger
Liquid Flow Rate 141m3/h
Maximum Working Pressure 1.6Mpa
Voltage 220v
Weight 600kg, 600kg
Dimension(L*W*H) 1830*500*1244mm
Power(W) 100w
Certification Other, ISO9001:2008
Warranty 1 YEAR, 1 Year
After-sales Service Provided Overseas service center available

Specifications

1.Reliability
2.High heat exchange efficiency
3.Safe operation
4.Easy to install
5.Long functional life



replace sondex gas water  plate heat exchanger unit

Parameters

S10D-II

Heat transfer area of plate m2

0.3

Chevron depth mm

4

Chevron angle º

1

60

2

120

Chevron normal pitch mm

13.4

Equivalent diameter mm

8

Hole diameter mm

100

Center Distance of holes mm

H

842

W

223

Center distance of suspension mm

963

Cross section ofsingle passage mm2

1291

Overall dimension of plate mm

L

1000

W

374

The max. heat transfer coefficient

(water to water)W/ m2.ºC

7500

The max. Working temp.ºC

180

The max. testing pressure Mpa

1.6

The max. flow rate M3/h

141







































































No.

ASSY Area m2

No.of plate

The max. testing pressure Mpa

Dimension mm

Theoretical weight(kg)

   L

W

H

1

30

101

1.6

1030

500

1244

450

2

40

134

1.6

1230

500

1244

500

3

45

151

1.6

1430

500

1244

525

4

50

167

1.6

1630

500

1244

550

5

55

183

1.6

1730

500

1244

575

6

60

201

1.6

1830

500

1244

600



Company Introduction

Liaoning Success Thermal Technology Co., Ltd. is a professional manufacturer and exporter that is specialized in the design, development and production of plate heat exchangers, plate heat exchanger gaskets and moulds as well as other plate heat exchanger accessories.

Covering an area of 12,000 square meters, we now have over 300 employees and currently export over 30% of our products worldwide. Our company has two subsidiaries, namely Haicheng YUHUA Mould Manufacturer Co., Ltd. and Haicheng YUFENG Technology Co., Ltd., which produce the moulds and gaskets for PHE separately.
SUCCESS has adopted the policy of “QUALITY FIRST, CUSTOMER SUPREME” through continuous technological advanced manufacturing and testing equipment to meet customers’ requirement and quality criteria.



Product Range:

Plate Heat Exchanger, Plates, Gaskets, Moulds, Frame, Connection, Flange etc.

More detail:



replace sondex gas to water forplate heat exchanger unit





MATERIAL OF PHE



1. PLATE MATERIAL



Stainless steel—clean water, river water, edible oil, and mineral oil



Titanium and titanium palladium—sea water, salt water, salt.



Hastelloy—sulfuric acid, hydrochloric acid, phosphoric acid



2. GASKET MATERIAL



NBR (nitrile rubber)—water, sea water, mineral oil, brine



HNBR—high temperature mineral oil, high temperature water



EPDM(ethylene-propylene)—hot water, water vapor, acids and alkalis.



HEPR—high temperature water vapor, acids and alkalis fluid.



FKM—strong acids and strong alkalis



3. FRAME MATERIAL



Standard: plastic coated carbon steel



Special: stainless steel covering



4. CONNECTION MATERIAL



Standard: EPR and NBR



Special: Stainless steel and titanium



5. ACCESSORIES



The insulation cover of heat exchanger can also be provided according to customer requirement.



replace sondex gas to water forplate heat exchanger unit



replace sondex gas to water forplate heat exchanger unit
