Specifications
1.Reliability2.High heat exchange efficiency
3.Safe operation
4.Easy to install
5.Long functional life

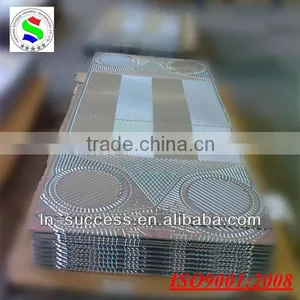

MX25B plate heat exchanger metal plate
Liaoning Success Thermal Technology Co., Ltd is a highly dedicated company in the domain of development and manufacturing of heat exchangers at world-wide standards. The heat exchangers with up to 1500 m2 exchange surface are supplied for all usual industrial applications as well as for the ranges heating, climate, ventilation, food production, pharmaceuticals.
We are one of the largest manufacturers of plate heat exchangers, gaskets for plate heat exchangers, plates for plate heat exchangers, moulds for plate heat exchangers as well as other accessories related with plate heat exchanger in China.
Consistent development in the field of sealed plate heat exchangers has resulted in a wide variety of plate version with respect to surface structure, material and gaskets for various media on heat exchange.
Plate heat exchanger can offer additional flexibility by changing the number of plates. It can also be adapted to other thermal operating conditions.
Computer programs determine the optimum heat exchanger for your operation conditions based on latest technology.
We provide a wide range of plate heat exchangers to domestic and foreign customers with high quality and low price.
Paramater for MX25B plate heat exchanger metal plate
Parameters |
S25S-II |
|
Heat transfer area of plate m2 |
1.5 |
|
Chevron depth mm |
2.6 |
|
Chevron angle º |
1 |
55 |
2 |
127.5 |
|
Chevron normal pitch mm |
9.07 |
|
Equivalent diameter mm |
5.2 |
|
Hole diameter mm |
250 |
|
Center Distance of holes mm |
H |
1939 |
W |
439 |
|
Center distance of suspension mm |
2151.50 |
|
Cross section ofsingle passage mm² |
1812 |
|
Overall dimension of plate mm |
L |
2256 |
W |
757 |
|
|
The max. heat transfer coefficient (water to water)W/ m².ºC |
8000 |
|
The max. Working temp.ºC |
180 |
|
The max. testing pressure Mpa |
1.6 |
|
The max. flow rate M³/h |
910 |
|
Material for MX25B plate heat exchanger metal plate
Stainless steel—clean water, river water, edible oil, and mineral oil
Titanium and titanium palladium—sea water, salt water, salt.
Hastelloy—sulfuric acid, hydrochloric acid, phosphoric acid
Why Us?
1. Fast delivery
2. Over 10 years’ experience
3. Safe operation
4. Easy to install
5. Long functional life
Pls contact us as following for further communication
Liaoning Success Thermal Technology Co., LTD
ADD: Xiliu Industry Park, Haicheng City, Liaoning Provience, China
TEL: 0086-412-3814777FAX: 0086-412-3824333
Mobile: 0086-138 897 03395
SKYPE: successhelen1
