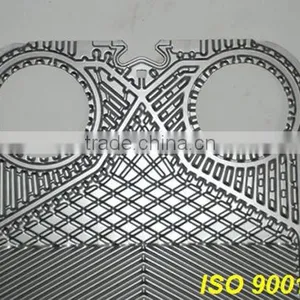

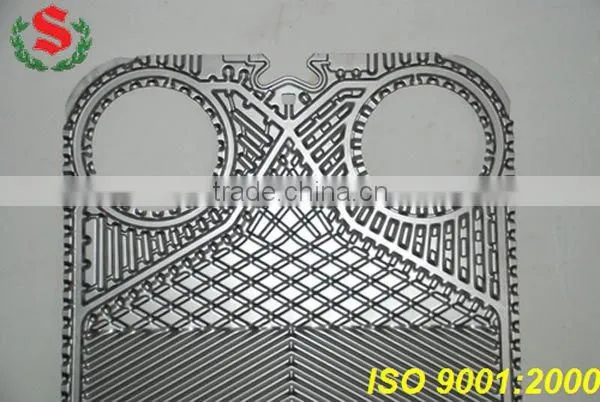

Help CenterAir Cool Plate Price for Plate Heat Exchanger High Theta
Related Products
-
Price for MX25B Plate Heat Exchanger Plate WaterUS$ 20 - 50MOQ: 10 Pieces -
Titanium Plate Heat Exchanger PlateUS$ 22 - 280MOQ: 10 Pieces
-
Titanium Plate Heat Exchanger Plate Water Cooler PartsUS$ 22 - 280MOQ: 10 Pieces
-
Titanium Plate Heat Exchanger Plate M3BUS$ 22 - 280MOQ: 10 Pieces
-
Titanium Plate Heat Exchanger Plate M20MUS$ 22 - 280MOQ: 1 Piece
Specifications
1.Reliability2.High heat exchange efficiency
3.Safe operation
4.Easy to install
5.Long functional life
Parameters |
S15D-II |
|
Heat transfer area of plate m2 |
0.62 |
|
Chevron depth mm |
4 |
|
Chevron angle º |
1 |
60 |
2 |
120 |
|
Chevron normal pitch mm |
13.78 |
|
Equivalent diameter mm |
8 |
|
Hole diameter mm |
150 |
|
Center Distance of holes mm |
H |
1294 |
W |
298 |
|
Center distance of suspension mm |
1567 |
|
Cross section ofsingle passage mm2 |
1804 |
|
Overall dimension of plate mm |
L |
1504 |
W |
500 |
|
|
The max. heat transfer coefficient (water to water)W/ m2.ºC |
7500 |
|
The max. Working temp.ºC |
180 |
|
The max. testing pressure Mpa |
2.0 |
|
The max. flow rate M3/h |
318 |
|
Liaoning Success Thermal Technology Co., Ltd is a highly dedicated company in the domain of development and manufacturing of heat exchangers at world-wide standards. The heat exchangers with up to 1500 m2 exchange surface are supplied for all usual industrial applications as well as for the ranges heating, climate, ventilation, food production, pharmaceuticals.
We are one of the largest manufacturers of plate heat exchangers, gaskets for plate heat exchangers, plates for plate heat exchangers, moulds for plate heat exchangers as well as other accessories related with plate heat exchanger in China.
Consistent development in the field of sealed plate heat exchangers has resulted in a wide variety of plate version with respect to surface structure, material and gaskets for various media on heat exchange.
Plate heat exchanger can offer additional flexibility by changing the number of plates. It can also be adapted to other thermal operating conditions.
Computer programs determine the optimum heat exchanger for your operation conditions based on latest technology.
We provide a wide range of plate heat exchangers to domestic and foreign customers with high quality and low price.

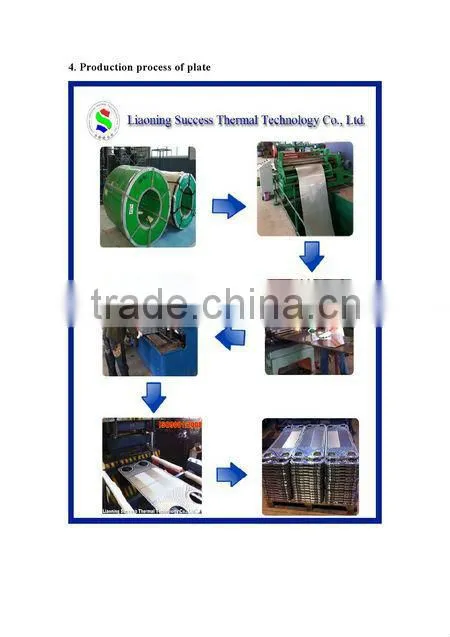

Production Process

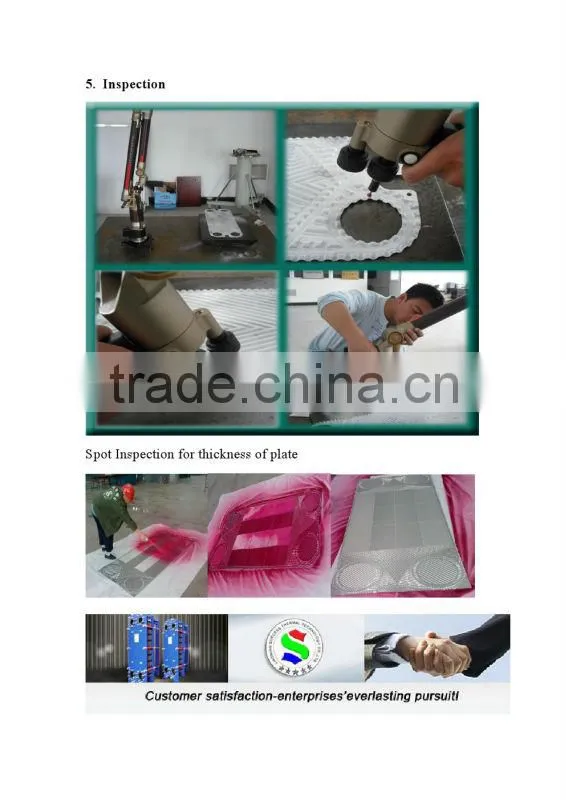

Inspection Process
Certificate
Always the First
Contact
Address: Xiliu Industrial Park, Haicheng City, Liaoning Province China
Tel: 0086-412-3814777
Fax: 0086-3235096
Mobile: 0086-13940518316
Skype: Sutton.liu
Your any inquiry would be much appreciated by us.
We promise to give you the best service and products.
Regards.
