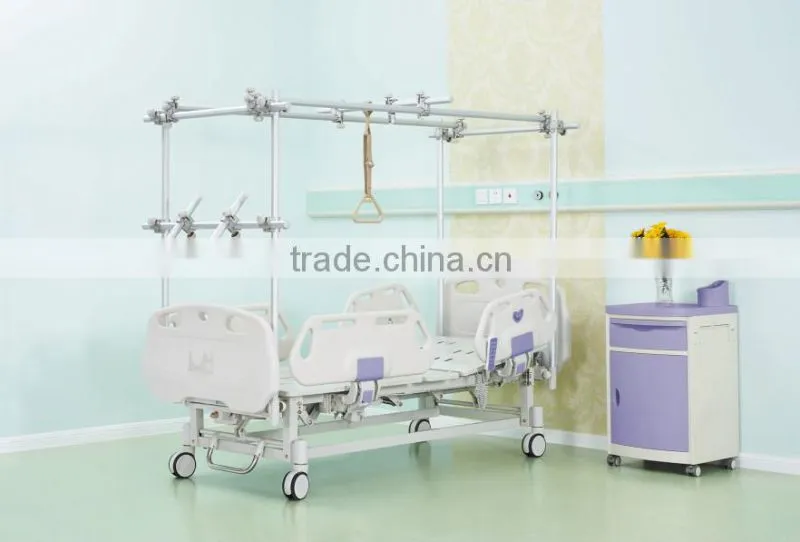

Help CenterMedical Supply Medical Bed for ICU Room
Related Products
-
Luxury Four Function Electric Orthopaedic Bed for SaleNegotiableMOQ: 20 Sets -
Four Function Luxury Manual Orthopaedic BedNegotiableMOQ: 1 Set
-
Original HOPEFULL Comfortable Electric Hospital Beds With Multi-functionNegotiableMOQ: 20 Sets
-
Ultra-low Design Hospital Bed for SaleNegotiableMOQ: 20 Sets
-
Ac638a Economy Electrical Homecare Bed For Nursing HomeNegotiableMOQ: 20 Sets
Quick Detail:
Metal Welding: 100% Robot welding, 30 sets robots were imported from Japan.
Metal surface disposal: Electrophoresis Nippon paint and powder spray coating.
Raw Material: 1: Steel, purchased from Wuhan Iron and Steel (Group) Corp.
2: Plastic, adopts famous brand Taiwan Chimei and South Korea LG.
Motor for electric bed: German Dewert motor
Central locking castor: using the German tech, the castor framework adopts the aviation aluminum material which is hard and light, is convenient and easy operation.
Bed board: it is processed by the large four column hydraulic machine. One-step molding technology, it can maximumly increase the strength of the bed board and make the four corners complete and smooth, very easy to clean.
Function:
Back section up&down
Separate legs up&down
Trendelenburg
Standard Device:
1set aluminum orthopaedics traction frame
1pair head and foot boards
4pcs long and short combination European style bedside rails
4pcs actuators
1pc handset
2pcs angle display devices
4pcs 5" central locking castors
1pc central braking padel
4pcs IV drip holes
4pcs drainage bag hooks
Model |

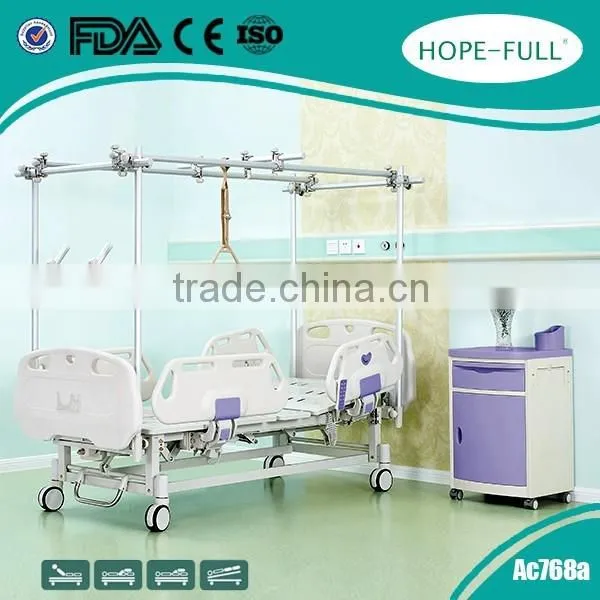

Ac768a Orthopaedics traction electric bed |
||
Serial No. |
Item |
Parameter |
|
1 |
Mattress support platform |
length |
1970±20 mm |
2 |
width |
850±10 mm |
|
3 |
The height from the floor |
520±10 mm |
|
4 |
The biggest angles |
Angle of back section |
≥70° |
5 |
Angle of knee section |
≥30° |
|
6 |
Trendelenburg angle scope |
Head part C(Not less than) |
0~4° |
7 |
Outer sizes |
Length |
2300±10 mm |
8 |
Width |
1010±10 mm |
|
9 |
Weight |
bed weight |
/ |
10 |
Safe working load |
175kg |
|
11 |
Electricity |
Voltage |
AC 220V/110V |
12 |
Frequency |
50-60Hz |
|
13 |
Working mode |
Working 2 minutes, rest 18minutes |
|
1. Q: How long is the delivery time for order?
A: 35 days.
2. Q: How is the bed life span?
A: 12 years.
3. Q: How is the warranty?
A: 2 years for whole products.
4. Q: How many years available for the spare parts?
A: At least 10 years.
5. Q: How many spare parts with the container order?
A: 2% according to the order quantity.
6. Q: How about the payment terms?
A: T/T or L/C.
7. Q: What's the MOQ?
A: One 20feet container.
8. Q: What's about OEM/ODM?
A: Accepted.
