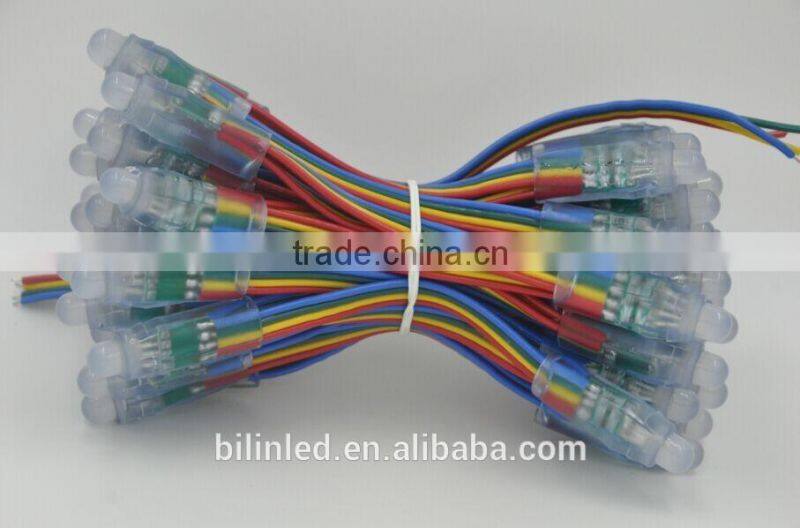

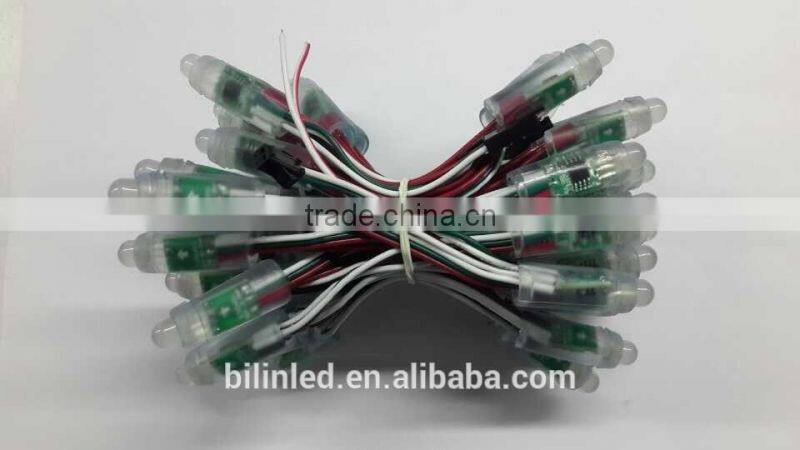

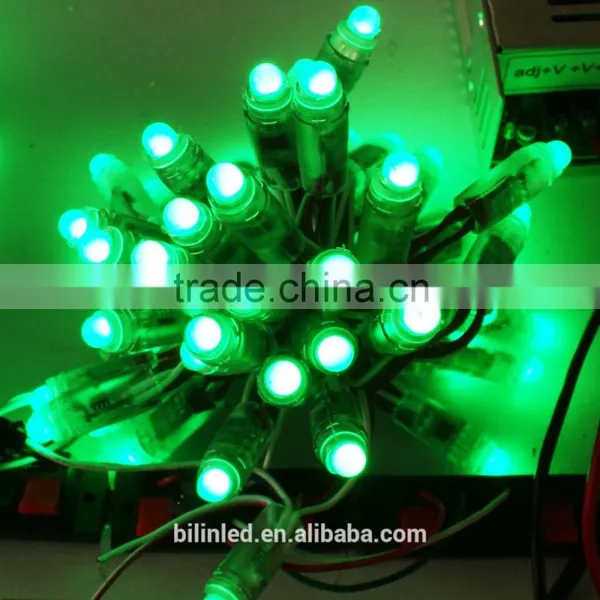

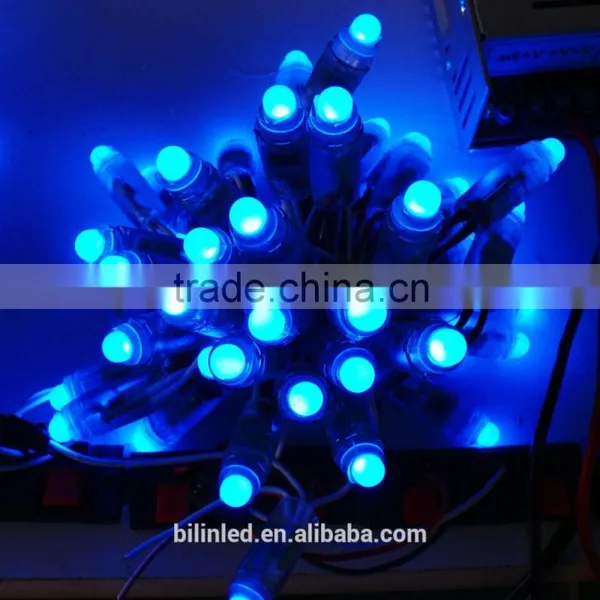

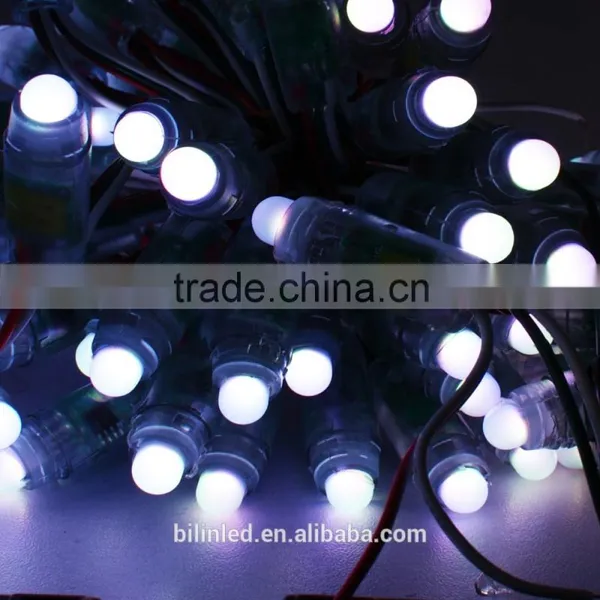

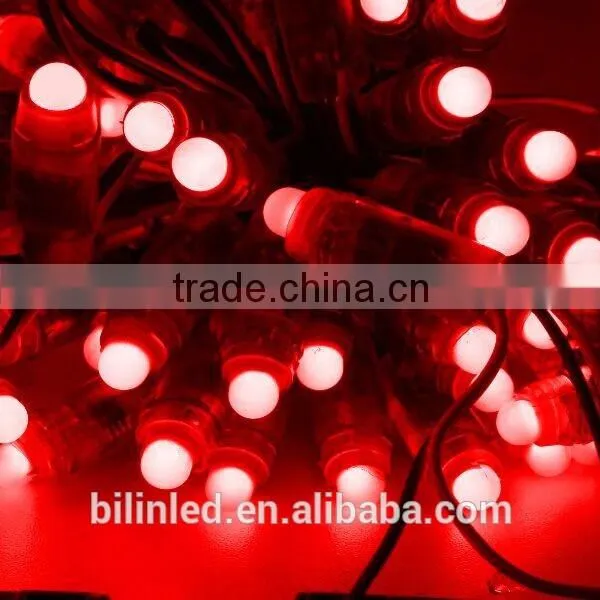

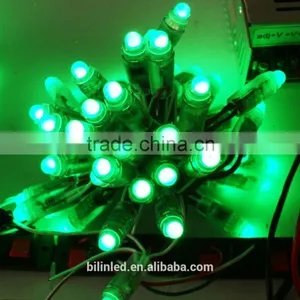

Waterproof 12mm IC UCS1903/WS2811/DMX512 RGB full color programmable led pixel module light
1. Individually control: 1PC LED pixel & 1IC
2. IC chip: ws2801, ws2811, ucs1903, sm16716, lpd6803, dmx512, etc
3. Waterproof: Yes IP66, with full silicon glue waterproof protection.
4. Installation: Easy to install, you'd better drill the hole with 12mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V
or you can destroy the entire pixel.

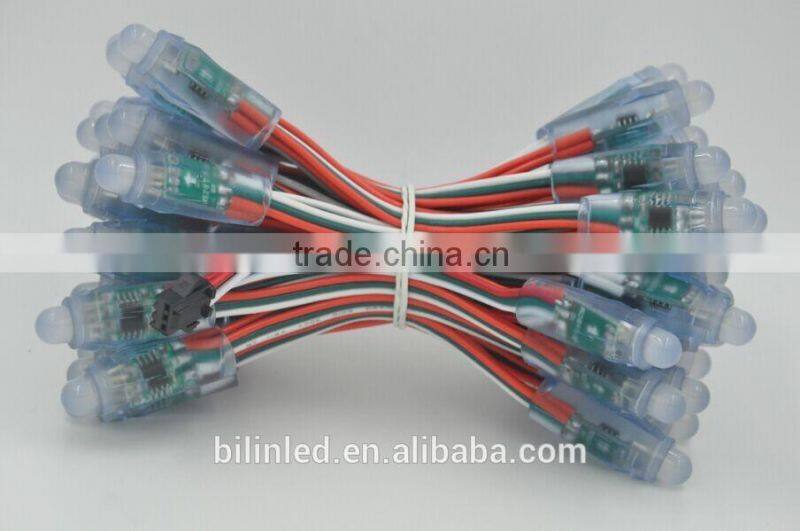

7. Connetors: 3PIN or 4PIN JST female and male connectors.
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
3PIN: DAT, DC5V+, GND-
4PIN: DAT, CLK, DC5V+, GND
8. Factory sale directly, good quality and price, offer 2 years warranty and quikly after-sales service.

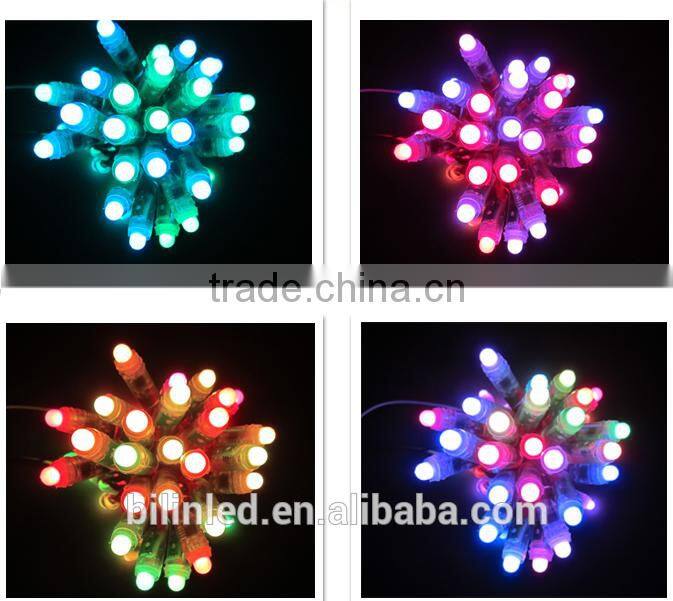

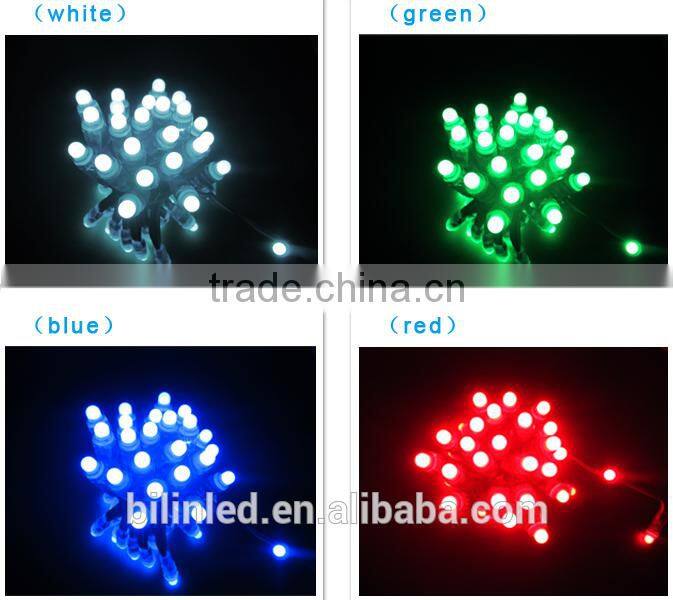

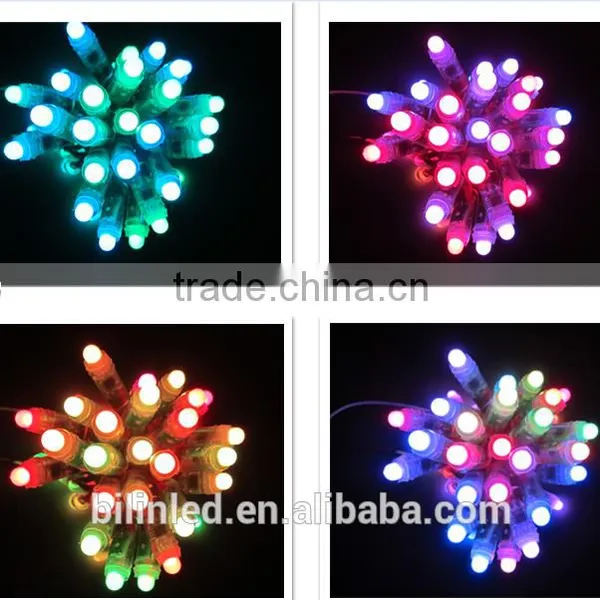

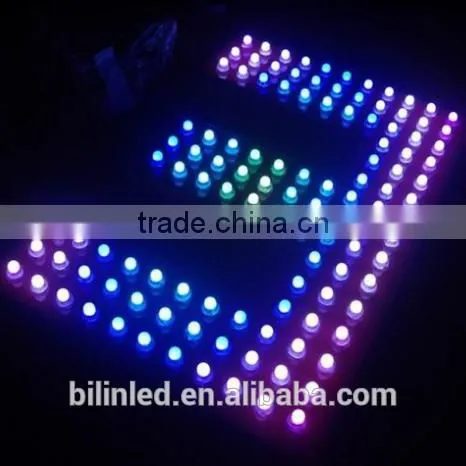

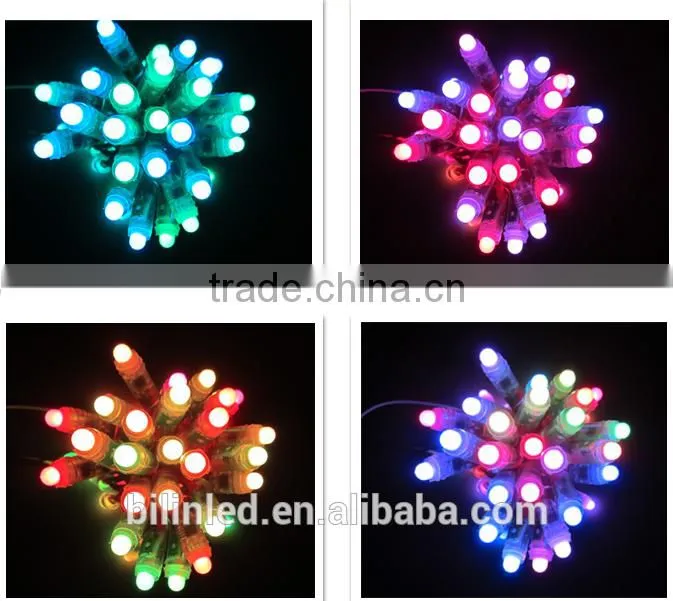

9. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
| Type | 3Pin connector | 4Pin connector |
| Product Name | 12mm round pixel led module light | 12mm round pixel led module light |
| IC Chip | ws2811,sm16716 | ws2801,ucs1903,lpd6803,dmx512 |
| Led Chip | Epistar F8mm Dot Led | Epistar F8mm Dot Led |
| Voltage | DC5V | DC5V |
| Wattage | 0.3w/pc | 0.3w/pc |
| Wire | DAT,CLK,DC5V+ | DAT, CLK, DC5V+, GND- |
| Waterproof | Full silicon glue | Full silicon glue |
| Certification | CE,RoHS | CE,RoHS |
| Warranty | 2 years | 2 years |
