Help CenterWaterproof High Quality Polyurethane Potting Compounds for Electronics
Related Products
-
Liquid PU Resin Hardener for LED Light PottingUS$ 9 - 13MOQ: 20 Kilograms -
Wholesale Polyurethane Pouring Potting Sealant for Electronic CompoundUS$ 9 - 13MOQ: 20 Kilograms
-
Clear Soft/Flexible Polyurethane/Pu Resin for Sticker/Label(direct Factory)US$ 12.5 - 14MOQ: 20 Kilograms
-
Clear Polyurethane Resin for Electronic Components PottingUS$ 11.5 - 12.5MOQ: 20 Kilograms
-
Factory Price Clear Polyurethane Resin for 3D Stickers LablesUS$ 11.5 - 12.5MOQ: 20 Kilograms
1.Excellent for prevent overheating of electronic components to make it break down.
2.With low viscosity and good natural defoaming, come to a high gloss and bright surface after cured, without ripple.
3.Very high transparency, with good elasticity and bonding strength.
4. With very good weather and UV resistance for outdoor use, can be used at the temperature of 0 ℃ to 100 ℃.
5.Do well in heat conduction, waterproof, fire resistance and insulation.
6.As for it high stability with thermal oxidation and ozone can be widely used in automotive electronic, aerospace etc.
Certificate
Application
918G-AB-H is a two components polyurethane system with the mixing ratio of 5:1, can be cured under normal temperature and high temperature, it forms a very high gloss and transparent resin it is widely used inputting such as electronic components, circuit boards, electronic controller etc with the pouring sealant. It is specially designed for the applications requires a hard and clear potting. After cured, it will has a very good features of UV resistance and weather resistance, can be for outdoor use, and can meet the strict requirements for electronic components.
Components
918G-A-H: Polyhydric alcohol
918G-B-H: Isocyanate
918G-AB-H can be operated both by hand and machine.
Product Display
Properties before Hardening
Part |
918G-A-H |
918G-B-H |
Color |
Black |
Black |
Viscosity (25℃ mpa·s) |
4500±50 CPS |
30±5CPS |
Mixing ratio |
A: B = 500:100(weight ratio) |
|
Pot life |
25℃×30min |
|
Hardening conditions |
25 ℃×24H or 65℃×3.5H or 80℃×2H |
|
Shelf life(25℃, sealed) |
6 Months |
6 Months |
Operation

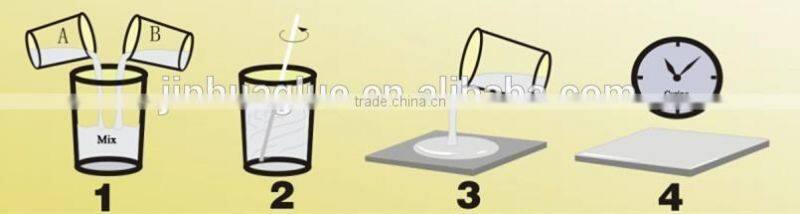

Hand operation process( long pot life and curing slowly):
1, Place918G-A-H and 918G-B-Hat the temperature of 15 to 25 ℃, relative humidity lower than 70% for 12hours.
2, Well prepared the products you need to apply the 918G-AB-H such as circuit board, electronic controller put them into the oven to heat at the temperature of about 60℃ to clear the moisture on the surface.
3, Totally clear the dust and the oil on the surface of the circuit board.
4, Weigh the918G-A-H and the918G-B-H by 5:1, and fully stir it.
5, Clear the bubbles by vacuum machine(the mixture will not have bubble at the -0.1 vacuum)
6, Take a clean syringe to draw the mixture and drop it to the surface of the well prepared circuit board. Normally the thickness is 2mm.
7, Look at the glue in 5 minutes, if there is some bubbles, use a pin to break the bubbles, or if there is some area that has not been covered by glue, use the pin lead it.
8, Put the finished products in the oven at the temperature of about 60 to 80℃, it will cured in 2 to 3.5 hours.
Machine operation process:
1, Place918G-A-H and 918G-B-H at the temperature of 15~ 25℃, relative humidity lower than 70%, and no-dust environment for more than 96 hours to remove the bubbles caused during the transportation.
2, Input the pump, sealed and fixed it, keep it for 12hours.
3, Place the circuit board to a flat place, and fix it.
4, Clear the dust and oil on the circuit board surface.
5, Clean the pipeline, mix container and the head with dichloromethane.
6, To clean up the air in the pipeline, mix container, and the head.
7, Drop the glue onto the circuit board surface.
8,Use a pin to lead the glue and remove the bubbles by it.
9, Place the circuit board at the temperature of 60℃.
10, It will cured at about 2~4 hours.
Properties after Hardening
Test Item |
Result |
Appearance |
Transparent |
Hardness, shore A |
80±10 |
Tensile strength,MPA |
>2 |
Elongation Ratio, % |
>200 |
25KGS /200KGS steel bucket
FREE SAMPLE IS AVAILABLE!!!
Jinhua professional produce and market all kinds of epoxy resin AB glue which covers a very large range of applications: Soft AB glue for stickers, LED strip potting, badge, nameplate, nail cutters, keychain!!!
Hard clear resin for LED channel letters, photo frame coating, hand made diamond, jewelry, crafts, nacklace, bangles, bracklets, earrings, rings, miniatures such as simulated water, soup,lquid drinks and fishbows to be used in a child's dollhouse, anything you can image clear and shinning, but cheap and easy to operate!!!
Coating resin for surfboard, paddle, christmas ball, globe, foam products coating, bicycles, boats, golf clubs,skies, snowboards, swimming pool, garage, wood table coating, Epoxy flooring, to make it hard and durable!!!
Special ahhesion for wood, metal, glass, stone and some plastic.With very strong and high durable bond after cured!!!
Flexible potting resin for electronic products such as motors, generators, transformers, swithgeear, insulators, mold filling,LEDs, perfectly to protect the potting items from short circuit, dust, water, and moisture, and giving the potting items a more stable and longer life than unpotted products!!!
Pls contact us to discuss your application for a best EPOXY and PU Resin SOLUTION!!!
1, Why Choose Jinhuaglue?
1) Jinhuaglue owns ISO9001-2008 audited factroy of 3500sqm, all the materials are offered by factory directly.
2) Jinhua has R&D team, we accept OEM, and small order is acceptable
3) Jinhua has already ship to over 30 countrys, aboudant experiecnce on the exporting.
4) Jinhua with output of tons per day, ensure the fast on time delivery
5) Jinhua keeps all the samples for each shipment, so that to make the quality trackable.
2, What Kind of Quality Certificate Jinhua has?
1) REACH,
2) Rohs
3) CPSIA
4) ASTM
5) EN71
3 Do Jinhua has MSDS for shipment?
Yes, we do have MSDS for shipment all all our epoxy and PU resin
