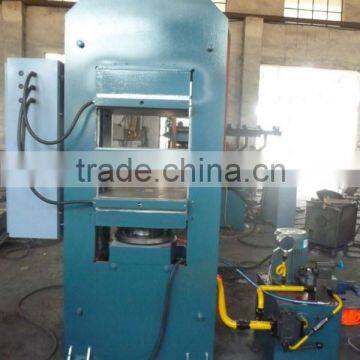

Rubber Press Moulding Machine/Rubber Sports Protection Material Making Machine/Rubber Forming Machine

Specifications

Rubber Sports Protection Material Making Machine
1.High working pressure.
2.High produing efficency.
3.Top sales service.

  Rubber Press Moulding Machine/Rubber Sports Protection Material Making Machine

1.hot press machine is mainly used for vulcanizing all kinds of rubber & plastic products,which generally adopts column type with many features of compact structure, beautiful appearance, large pressure and so on.



2.It can be heated by electric,oil or steam,we can design and manufacture according to customers’ actual requirement.



3.The electric system adopt PLC programming control , which is easy to be operated.



 contains upper separator, base, Oil cylinder, plunger, activities, platform,



hot plate, the combination of pump.











Model		XLB-D1000*1000*1	XLB-D/Q1200*1200	XLB-D600*600	XLB-D400*400*2
1	Norminal mouldning power(MN)	2.50	3.15	1.60	0.5
2	Plate size (mm)	1000*1000	1200*1200	600*600	400*400
3	Plate pressure (Mpa)	2.5	2.19	4.4	3.1
4	Piston diameter(mm)	450	600	360	200
5	Number of hydraulic cylinder (pcs)	1	1	1	1
6	Piston stroke(mm)	300	800	300	250
7	Distance between hot plate(mm)	150	800	300	125
8	Working layer number	1	1	1	2
9	Pressure of working fluid  (Mpa)	15.7	17.7	15.7	16.0
10	Total heat power(KW)	24	36		9.0
11	Heat type	electricity	vapor/electricity	electricity	electricity
12	Maximum working temperature	200°C	200/170  °C	200  °C	200  °C
13	Configuration type	Frame	Frame	pillar	pillar
