Specifications
Rubber extruding machine /Hot feed extruder1.easy to operate
2.reasonable price and good after-sales service
3.ISO9001
We are Qingdao Yahua Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly let us know by return email.
Detailed Product Description

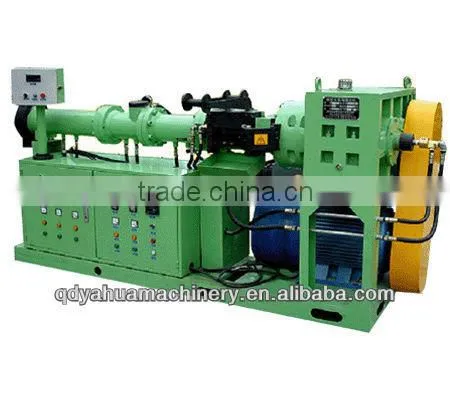

rubber extruder is mainly used for extruding rubber hoses, if changing various different heads, it can also extrude rubber bar
forms of screw and screw thread: double-head convergent type
screw diameter:120mm
length-diameter ratio of screw:4.6
rotary speed of screw:5.6-55.6 r/min
motor power: electromagnetic speed 22kw
production capacity:100-450kg/h
steam pressure:0.2-0.4Mpa
cooling water pressure:0.2-0.4Mpa
sizeLxWxH:2427x750x1330
weight(not contain machine-head):3000kg
Type and spec. |
XJ-65 |
XJ-85 |
XJ-115 |
XJ-150 |
XJ-200 |
XJ-250 |
Screw dia.(mm) |
65 |
85 |
115 |
150 |
200 |
250 |
L/D |
4 |
4.8 |
4.8 |
4.4 |
4.4 |
4.5 |
Screw rotational speed(r/min) |
20.27 |
27.40 |
20~60 |
27~81 |
22.4~67.2 |
19.7~59.1 |
Motor power(kw) |
7.5 |
17 |
30 |
15.3~55 |
33.3~100 |
33.3~100 |
Overall dimension L×W×H(mm) |
1600×675×1053 |
2050×735×1275 |
2770×665×1300 |
3585×814×1470 |
4549×1140×1750 |
4950×1150×1483 |
Capacity (kg/h) |
50~80 |
62~270 |
100~350 |
800 |
1500~2200 |
3500 |
Total weight(t) |
1.5 |
2.6 |
3.3 |
4.5 |
7.21 |
9 |
Contact person:Bella Xue
Skype:bella.xue1990
Phone:0532-83132191/83137817
Send Inquiry to This Supplier
