Specifications
1.High working efficency.2.One year warranty.
uce energy consumption
4.we are factory manufacture
Specification

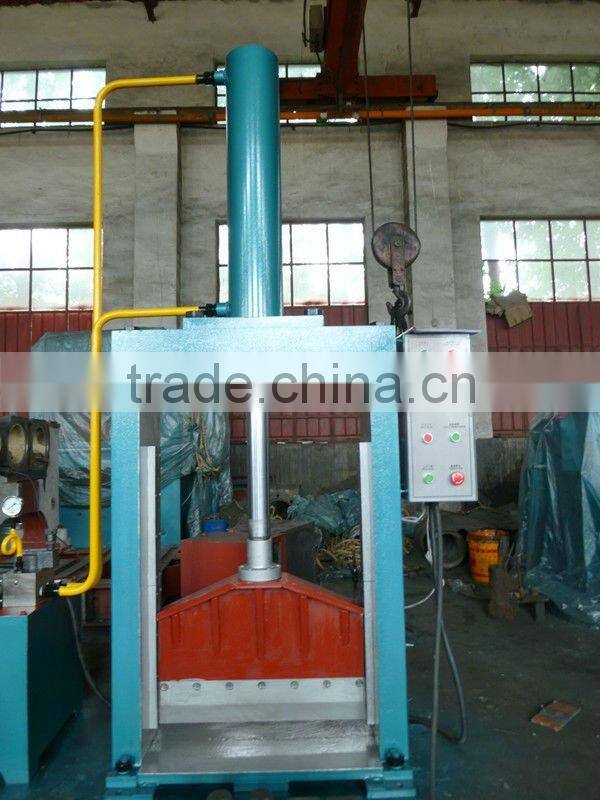

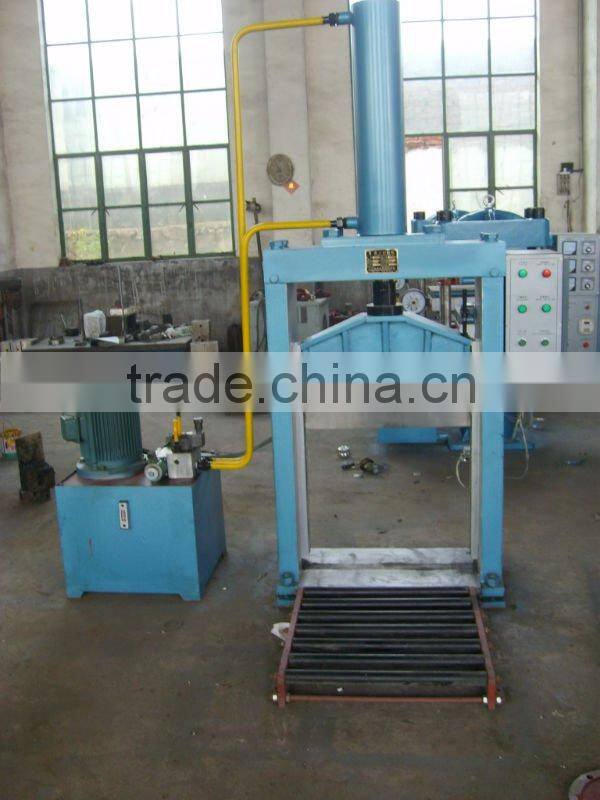

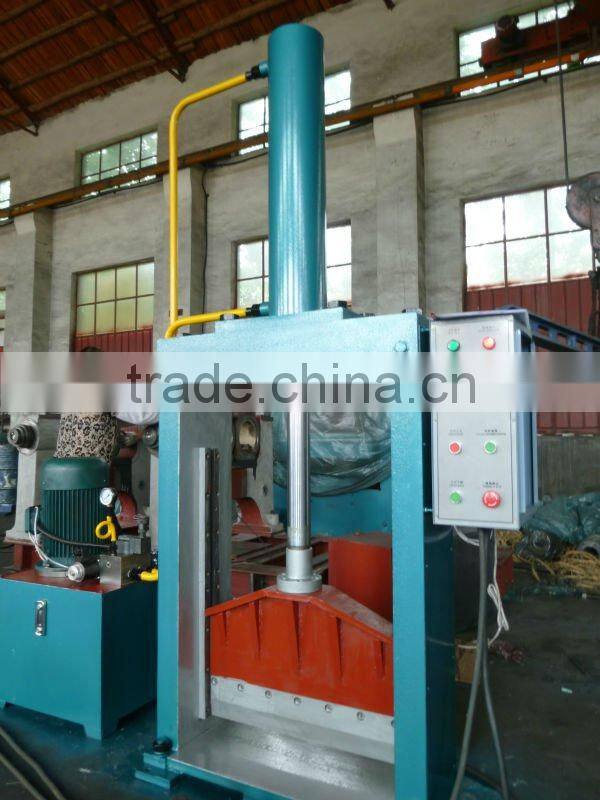

This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.
When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.

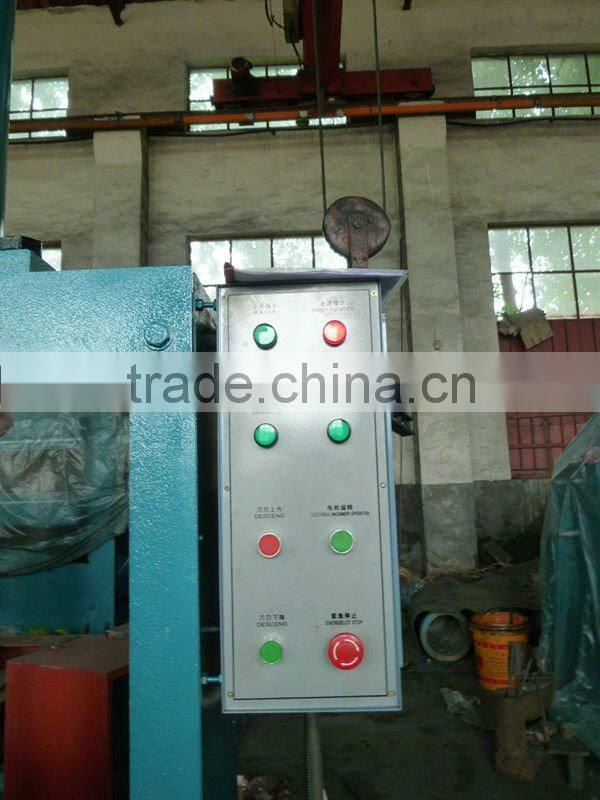

Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
Purpose/performance characteristics:
1.Simple operation
2.Deliever immediately
3.Best after-service
4.Professional manufacture ,not trading company
Main technical parameter
Model |
XQL-80 |
XQL-160 |
|
1 |
Width(mm) |
660 |
790 |
2 |
Stoke(mm) |
680 |
680 |
3 |
Rated cut-off force(KN) |
80 |
160 |
4 |
Diameter of hydro-cylinder(mm) |
150 |
200 |
5 |
Time Taken by the Stroke(S) |
10-16 |
10-16 |
6 |
Rated working oil pressure (Mpa) |
4.5 |
5.0 |
7 |
pumping flow |
63L/min |
63L/min |
8 |
Motor power (KW) |
Y132M2—6,5.5KW,960r/min |
Y132M2—6,5.5KW,960r/min |
9 |
Overall size(mm) |
1950*500*2300mm |
2150*550*2500 |
