Product Details
| Type | Flat-Plate | Pressure | Pressurized | |
| Circulation Type | Indirect / Closed Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Split | Installation | Wall Mounted | |
| Housing Material | Other, color steel | Certification | CE, Other, CE, SRCC, Solar Keymark | |
| Capacity | 200 | Place of Origin | Jiangsu, China | |
| Brand Name | Dr.X | Model Number | DX-SPFS/SPFD-2 |
Product Description
Best selling excellent vguard solar water heater,split pressure flat solar water heater

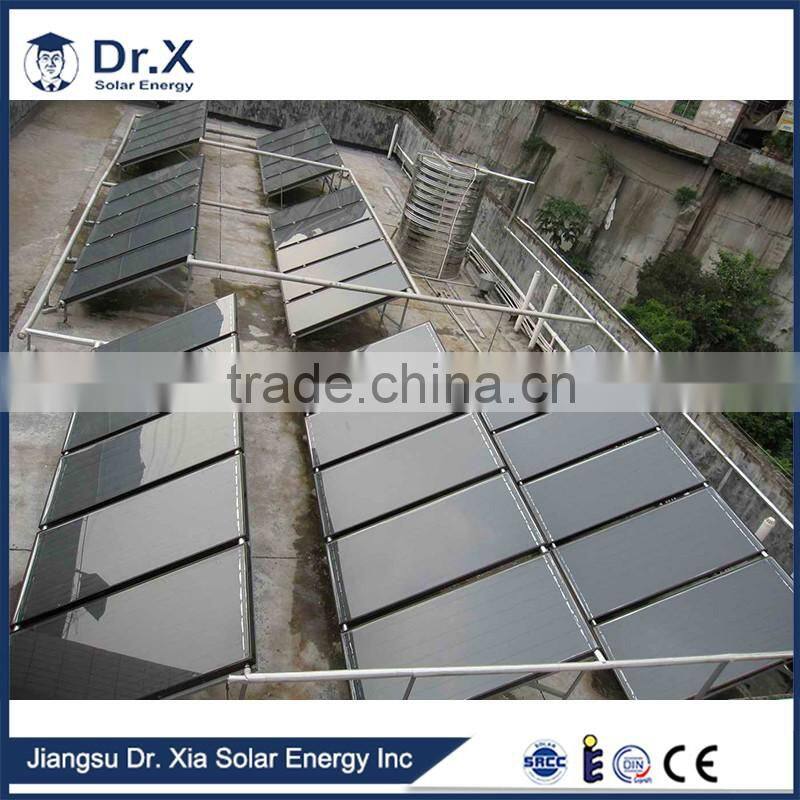

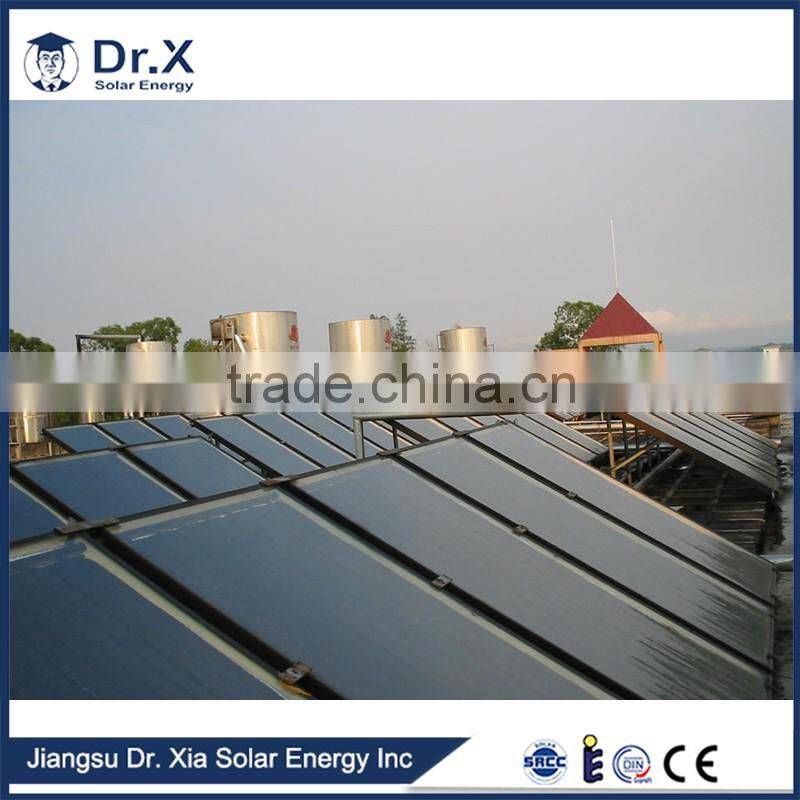

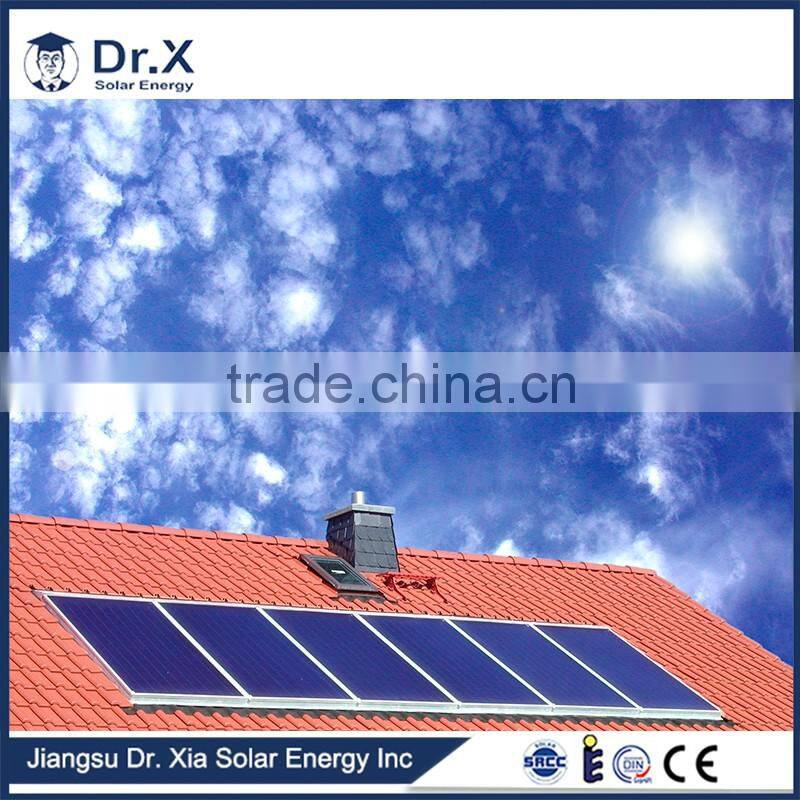

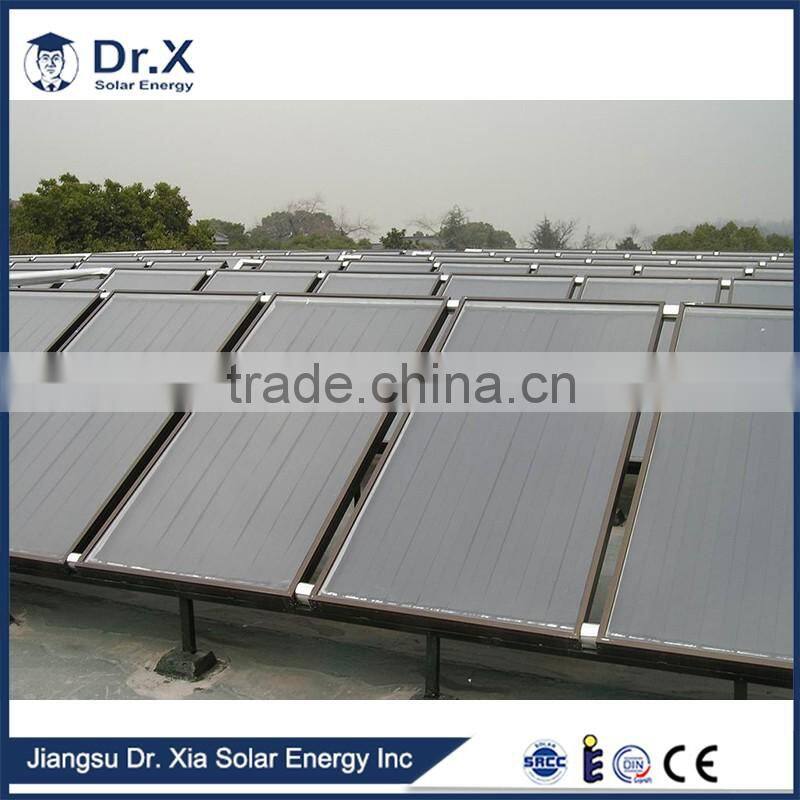

Pictures Of split pressure flat solar water heater
Components of production:
This system is specially designed for household, villa and small area unit by our company. It consists of followed parts:heat-pipe solar collector, storage water tank , working station system expansion case.
Specialty:
- Collector separate with water tank, system works by pump circulation.
- Automatic controlling system, reliable operation, supply constant water temperature.
- Water tank can put anywhere inside house, avoid gradual rust and last long lifetime.
- Collector can be installed wherever available like balcony, wall, roof etc.,
- Easy and convenient installation and operation, unified with the building completely.

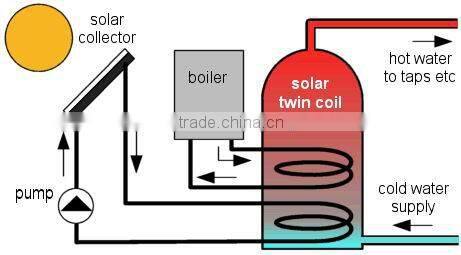

Working Principles:
Adopt the temperature difference circulation, controller operates whole system automatically.
1. Pump will start circulation when temperature difference between collector and water reaches the set value.
2. Pump will stop circulation once the temperature difference lower than set value.
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to the water tank by copper heat exchanger.
5. Assistant heating element will start if hot water does not reach set value.
Model | Specification | Quantity 20GP/40GP/40HQ (sets) | |||||
Flat Panel | Water Tank | ||||||
Dimension | Coating | Absorb area (m2) | Inner Dia. (mm) | Outer Dia. (mm) | Capacity | ||
DX-SPFS/SPFD-1 |
2000*1000*80
| TiNoxOy/ Black Chrome | 2 | 365 | 470 | 100L | 43/88/108 |
DX-SPFS/SPFD-2 | 4 | 440 | 540 | 200L | 25/51/62 | ||
DX-SPFS/SPFD-3 | 6 | 480 | 600 | 300L | 18/35/43 | ||
DX-SPFS/SPFD-4 | 8 | 600 | 700 | 400L | 15/30/36 | ||
DX-SPFS/SPFD-4 | 10 | 600 | 700 | 500L | 12/24/29 | ||
1 Non-pressurized water heater 2 Flat collector 3 Flat plate soalr water heater
4 heat pipe soalr water heater 5 pre-heated water heater 6 heat pipe solar colelctor
7 solar project 8 split 9 water tank
Why Choose Us?
A.Our Advantages:
1.Our Product is economic and environmental;
2.Our Product is durable and has a long service life;
3.We have rich production experience.The quality of Product is reliable;
4.We have a perfect production process and strict quality control system;
5.We have perfect service system and will give you the best service.

Company Introduction
Jiang Su DR. Xia Solar Energy INC. was established in 1988 and is located in Chang Zhou city. Our company covers an area of 45000 square meters and has over 100 employees.
We are specialized in Solar water heater and have an annual production capacity of 100,000sets.
Our company has rich experience in the solar industry. Besides, because of large overseas markets, most of our products have got Solar Key mark, SRCC, CE certificates.
Our company has laser welding, automatic punching and vacuum sputtering equipment to strictly control the product quality. We warmly welcome customers from at home and abroad to cooperate with us for common success.
