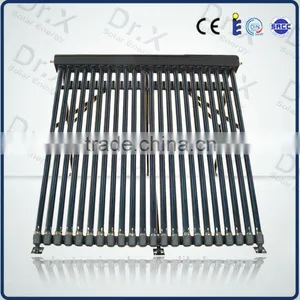

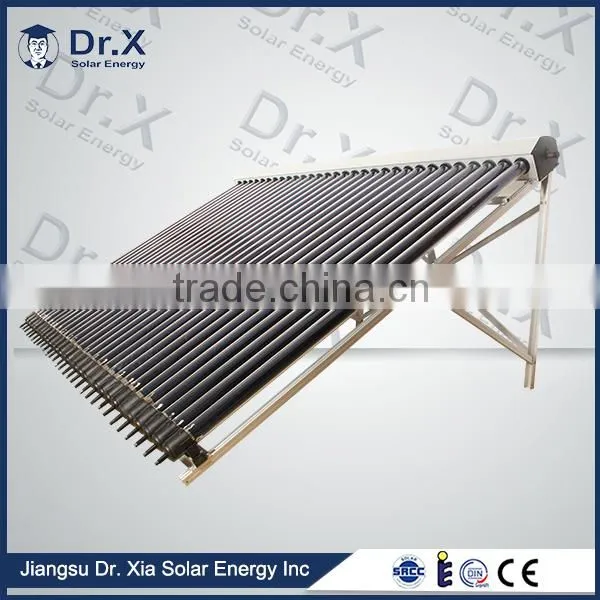

Help CenterVacuum Tube Heat Pipe Solar Collector for Split Pressure Solar Water Heater
Related Products
-
2015 Newest High Quality Vacuum Solar Collector ,cps Solar CollectorUS$ 100 - 500MOQ: 1 Piece -
High Quality Vacuum Solar Collector,better Than Suntask Solar CollectorUS$ 100 - 500MOQ: 1 Piece
-
High Efficiency Coating Solar Hot Water Flat Plate CollectorUS$ 100 - 150MOQ: 1 Piece
-
Tinxoy Coating Flat Plate Panel Solar CollectorUS$ 100 - 150MOQ: 1 Piece
-
Heat Pipe Solar Collector Made in ChinaUS$ 100 - 300MOQ: 1 Set
Specialty:
1. High heat collecting efficiency and high temperature output.
2. Quick operation under pressure.
3. Strong freezing resistance,no water leaking problem.
4. Easy installation, convenient maintenance.
5. Completely combined with building, install on wall, roof or ground etc.
Technical specification:
1. Outer manifold material: Aluminum alloy or SUS304-2B stainless steel
2. Header Pipe material: Copper
3. Insulation material: Rock wool
4. Heat pipe material: Copper
6. Frame material: Aluminum alloy or SUS304-2B stainless steel
7. Seal material: Stabilized high temperature silicon
8. Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating
9. Collector mounting: flat roof or inclined roof
10. Working pressure: 6 bar
11. Testing pressure: 12bar
Model |
Diameter tubes (mm) |
Length tubes (mm) |
Absorb area(m2) |
Quantity heat-pipe (pcs) |
Quantity 20GP/40GP/40HQ (pcs) |
DX-HCA/HCS-12 |
58
|
1800
|
1.73 |
12 |
125/250/310 |
DX-HCA/HCS-15 |
2.16 |
15 |
109/222/271 |
||
DX-HCA/HCS-18 |
2.57 |
18 |
82/164/200 |
||
DX-HCA/HCS-20 |
2.85 |
20 |
81/162/198 |
||
DX-HCA/HCS-24 |
3.41 |
24 |
71/142/173 |
||
DX-HCA/HCS-30 |
4.25 |
30 |
57/104/127 |
1. OEM service
2. Warranty: 5 years
3. Considerable after sale service
vacuum heat pipe solar collector , china evacuated solar collector tubes
Certifications:
vacuum tube heat pipe solar collector for split pressure solar water heater
heat pipe solar collector, solar collector, vacuum tube solar collector, solar water heater, solar heater, water heater, hot water heater
Jiang Su DR. Xia Solar Energy INC. was established in 1988 and is located in Chang Zhou city. Our company covers an area of 45000 square meters and has over 100 employees.
We are specialized in Solar water heater and have an annual production capacity of 100,000sets. Our company has rich experience in the solar industry. Besides, because of large overseas markets, most of our products have got Solar Key mark, SRCC, CE certificates.
Our company has laser welding, automatic punching and vacuum sputtering equipment to strictly control the product quality. We warmly welcome customers from at home and abroad to cooperate with us for common success. vacuum heat pipe solar collector , china evacuated solar collector tubes
heat pipe solar collector, solar collector, vacuum tube solar collector, solar water heater, solar heater, water heater, hot water heater
heat pipe solar collector, solar collector, vacuum tube solar collector, solar water heater, solar heater, water heater, hot water heater
