Bluetec Flat Plate Solar Collector With High Selected Absorb Coating

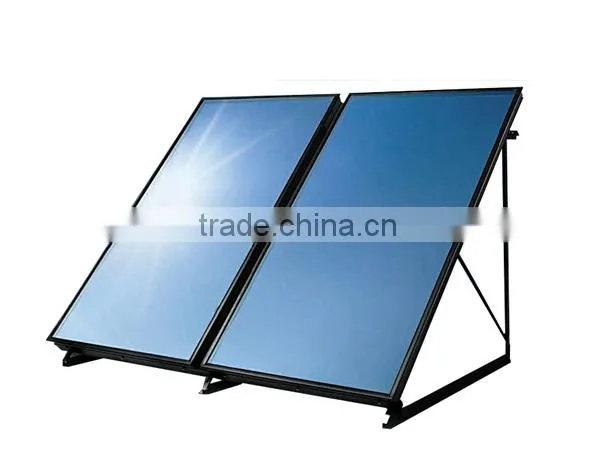

Bluetec Flat Plate Solar Collector With High Selected Absorb Coating photo-1
US$ 100 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Flat-Plate
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Type Flat-Plate
Pressure Pressurized
Circulation Type Indirect / Closed Loop (Active)
Heating System Other, split type
Connection Type Other, flat plate type
Installation Other, flat roof mounted
Housing Material Other, aluminum alloy
Certification CE
Place of Origin Jiangsu, China
Brand Name Dr.X
Model Number DX/FCT

bluetec flat plate solar collector with high selected absorb coating

Technical Specification

Model

DX-FCA-2000/1000/80

DX-FCBC-2000/1000/80

DX-FCB-2000/1000/80

DX/FCT-2000/1000/80

Coating

Anodic Oxidation

Black chrome

Black chrome

Blue coating

Welding

Laser

Ultrasonic

Laser

Laser

Material of Absorber

Copper &Aluminum

Copper

Copper &Aluminum

Copper &Aluminum

Size & Quantity

header pipe

22*08mm    2PCS

Size &Quantity

branch pipe

10*0.6mm    7PCS

Absorption rate

0.90±0.03

0.93±0.03

0.92±0.03

0.94±0.02

Reflection rate

0.18±0.05

0.10±0.05

0.10±0.05

0.05±0.02

Collector size

2000 x 1000 x 80

Frame color

Silver/Black/Champagne

Gross area

2 sqm

Absorber area

1.85sqm

Sealing

EPDM

cover material

Ultra white and low iron fabric surface tempered glass

Cover transmission

92%

Back plate material

0.30mm galvanized steel

Insulation

30mm glass wool

Max working pressure

0.6MPa

weight

37kg

37kg

38kg

38kg





bluetec flat plate solar collector with high selected absorb coating





Production Flow

bluetec flat plate solar collector with high selected absorb coatingbluetec flat plate solar collector with high selected absorb coating





Company Information

       Jiang Su DR. Xia Solar Energy INC. was established in 1988 and is located in Chan Zhou city. Our company covers an area of 45000 square meters and has over 100 employees.

       We are specialized in Solar water heater and have an annual production capacity of 100,000sets. Our company has rich experience in the solar industry. Besides, because of large overseas markets, most of our products have got Solar Key mark, SRCC, CE certificates.

      Our company has laser welding, automatic punching and vacuum sputtering equipment to strictly control the product quality. We warmly welcome customers from at home and abroad to cooperate with us for common success.

bluetec flat plate solar collector with high selected absorb coating

bluetec flat plate solar collector with high selected absorb coating





Our Services

1.  OEM service

2. Warranty: 5 years

3. Considerable  after sale service

Certifications:

bluetec flat plate solar collector with high selected absorb coating
