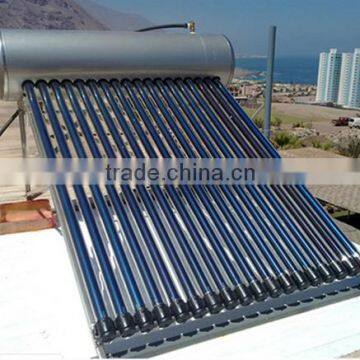

Help Center200 Liters High Pressure Solar Geyser
Related Products
-
300 Liters High Pressure Solar Heater,solar GesyserUS$ 200 - 300MOQ: 1 Set -
150 Liters Heat Pipe Pressurized Solar Water HeaterUS$ 200 - 300MOQ: 1 Set
-
100 - 300 l Integrated Pressured Stainless Steel Solar Water Heater PriceUS$ 100 - 300MOQ: 1 Set
-
180liters High Pressure Heat Pipe Solar Geyser (18 Tubes)US$ 200 - 300MOQ: 1 Set
-
150liters High Pressure Heat Pipe Solar Geyser (15 Tubes)US$ 200 - 300MOQ: 1 Set
Solar geyser Working principle:

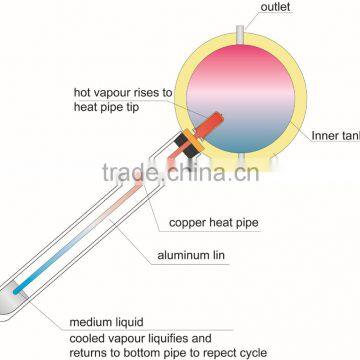

Compact Pressure solar geyser System Working Principle:
Vacuum tube solar geyser collect heat from sunshine, aluminum ring inside transfer the heat to heat pipe, then heat pipe transfer the heat to water inside tank, the system start and transfer heat is quick in cloudy and low radiation days, daily average heat efficiency can up to 55%.
Solar geyser Specialty:
- High thermal performance and working temperature: the heat exchanging rate even in winter can up above 55%.
- Heat collecting efficiency is at least 20% above common solar systems.
- Work in all day and all season: no matter any corner of the world, this system can work well even -40℃ to avoid the tube freezing problem.
- Reliability: No water following through the tube, so water scale can not generate and tube cracks could be avoided, the system still can keep working even with some damaged tubes.
- It can connect with water tap and work automatically with pressure0.6Mpa, bring enjoyable washing experience.
- Safety: P/T valve would release pressure and temperature to protect tank..
solar geyser Technical Specification:
- Outer tank material: SUS304 stainless steel or powder coated color steel
- Inner tank material: 1.2mm thick SUS304 food grade stainless steel ( Optional material SUS316L)
- Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating, with copper heat pipe inside
- Frame material: 1.2mm thickness stainless steel
- Insulation material: 55mm thickness polyurethane
- Suitable for mains pressure water(up to 8 bar/116psi)
- Easy plug-in installation
- Install the T/P valve on the pressurized tank
- Seal material: Stabilized High Temperature Silicon
Jiang Su DR. Xia Solar Energy INC. was established in 1988 and is located in Chan Zhou city. Our company covers an area of 45000 square meters and has over 100 employees.
We are specialized in Solar geyser and have an annual production capacity of 100,000sets. Our company has rich experience in the solar industry. Besides, because of large overseas markets, most of our products have got Solar Key mark, SRCC, CE certificates.
Our company has laser welding, automatic punching and vacuum sputtering equipment to strictly control the product quality. We warmly welcome customers from at home and abroad to cooperate with us for common success. stainless steel Compact pressure solar geyser
1. OEM service
2. Warranty: 5 years
3. Considerable after sale service
Solar geyser Certifications:
