Product Name: SF6 Recloser 32kv Vacuum Circuit Breaker ZW32-12 (G)
Type: Circuit Breaker
Parameters:
| Product Name | SF6 Recloser 32kv Vacuum Circuit Breaker ZW32-12 (G) |
| Tyep | Circuit Breaker |
| Rated Voltage | 10KV ,11KV, 12KV |
| Rated Short-Circuit Breaking Current | 20KA , 16KA , 12.5KA |
| Rated Current Rated Current | 630A, 400A, 200A |
| Frequency | 50HZ |
| Alitude | Not exceed 1000m |
| Ambient Temperature | not higher than +40 °C , not less than -15 °C |
| Certificate | ISO9001 |
| Mechanism Life | 1000 times |
| RMS | 20KA /25KA , 80KA |
| Dynamic Stability rated current(peak) | 50KA |
| Rated short-circuit closing current(peak) | 63KA |
| Rated short-Circuit closing breaking current breaking number | 30 Times |
| Rated operating sequence | O-0.3s-CO-180s-CO |
| Rated thermal stabilization time | 4s |
ZW32-12 (G)-type outdoor high voltage vacuum circuit breaker for AC 50HZ, voltage 10 ~ 12KV three-phase power system, as breaking, Closing load current use, it has overload and short circuit protection function, to meet the control and measurement requirements, also allows remote control and monitoring. For protect and control the distribution systems of substation and industrial and mining enterprises and for the frequent use places of the rural power grid.
No |
Item |
Unit |
Value |
|||
1 |
Rated voltage |
kV |
12 |
|||
2 |
Rated insulation level |
1min power frequency withstand voltage |
Dry |
42 |
||
Wet |
34 |
|||||
Lightning impulse withstand voltage (peak) |
75 |
|||||
| 3 | Rated current |
A |
630;400;200 |
|||
| 4 | Rated short-circuit breaking current |
kA |
20;16;12.5 |
|||
5 |
Rated operating sequence |
0-0.3s-CO-180s-CO |
||||
6 |
Rated short-circuit breaking current breaking times |
times |
30 |
|||
7 |
Rated short-circuit closed current (peak) |
kA |
50 |
|||
8 |
Rated peak withstand current |
kA |
50 |
|||
9 |
Rated short-time withstand current |
kA |
20 |
|||
| 10 | Rated short-circuit duration |
s |
4 |
|||
11 |
Opening time (magnetic releasing) |
Max operating voltage |
ms |
23~45 |
||
Rated operating voltage | ||||||
Min operating voltage |
23~60 |
|||||
12 |
Closing time |
ms |
25~45 |
|||
13 |
Total break time |
ms |
≤100 |
|||
14 |
Arcing time |
ms |
≤20 |
|||
15 |
Mechanism life |
times |
1000 |
|||
16 |
Storage energy motor rated input power |
W |
40 |
|||
17 |
Rated operating voltage and auxiliary circuit rated voltage |
V |
DC220,110,24 |
|||
AC220,110,24 | ||||||
18 |
Storage energy time on rated voltage | s |
≤10 |
|||
19 |
Over-current tripper |
Rated current |
A |
5 |
||
Tripping current precision |
% |
±10 |
||||

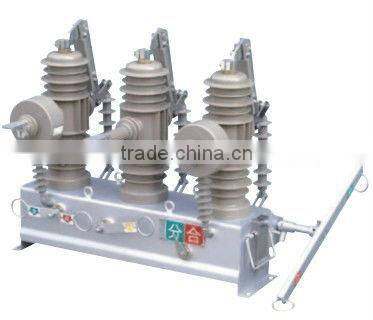

SF6 Recloser 32kv Vacuum Circuit Breaker ZW32-12 (G) :

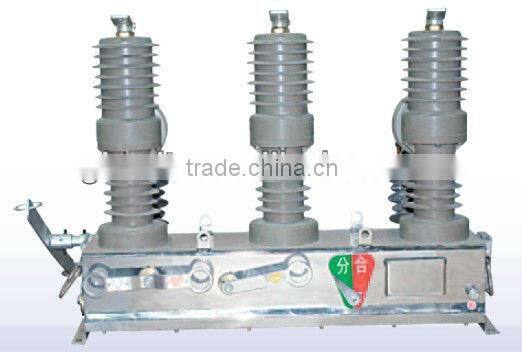

ZW20-12 outdoor boundary of vacuum circuit breaker:

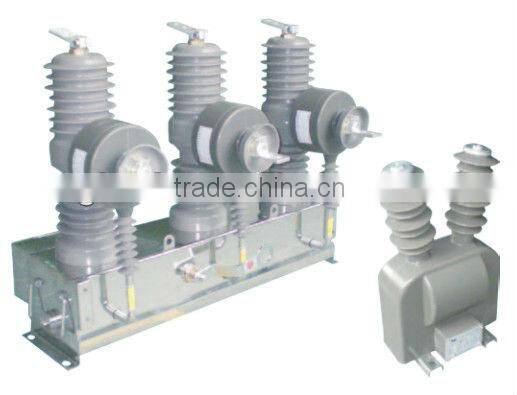

ZW32-12 M type outdoor intelligent permanent VCB:

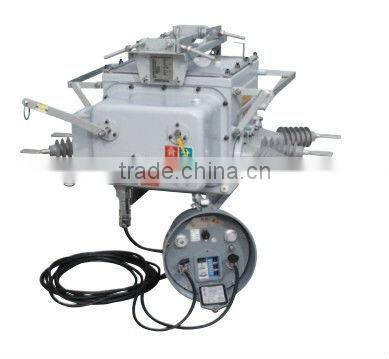

ZW32-12 type miniaturized outdoor VCB:

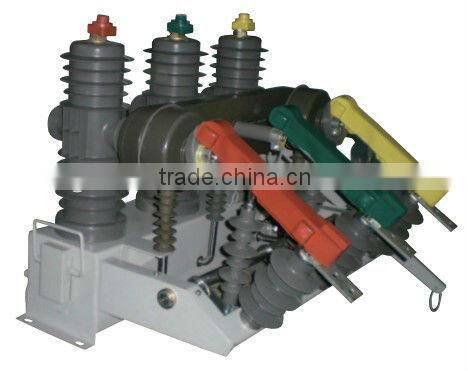

ZW32-12 type solid seal of outdoor VCB:

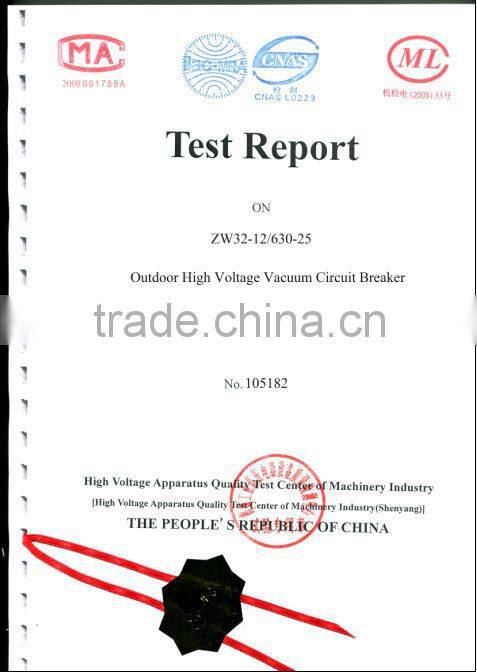

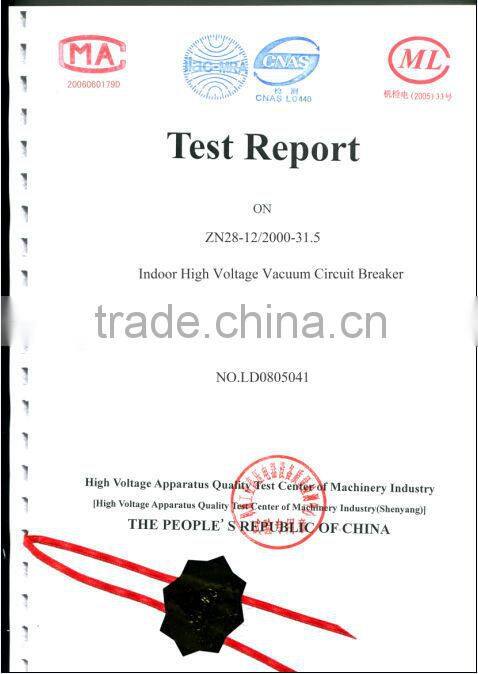

Certificate:
