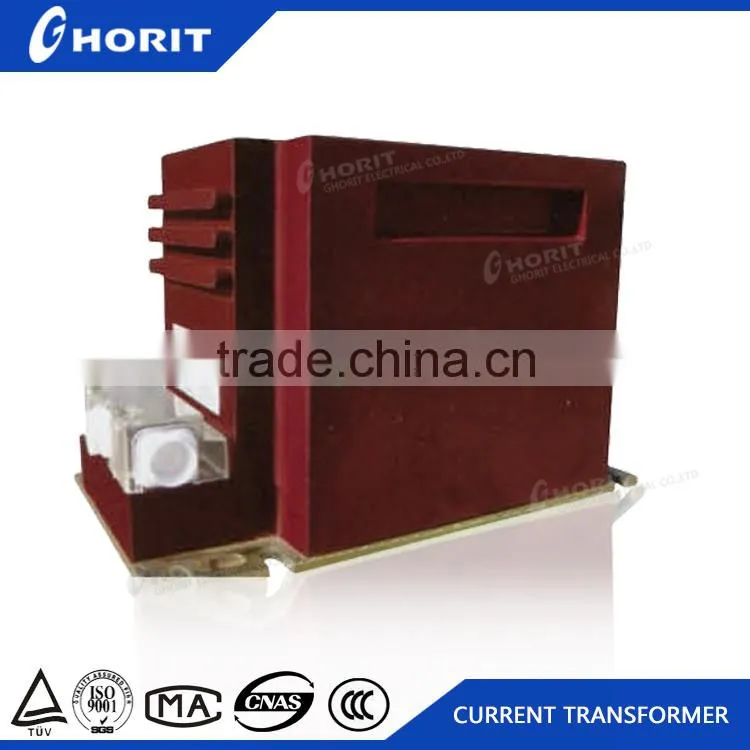

LQJ-10 High Voltage Transformer in China 11kv Step Down Transformer Special Type Transformer

LQJ-10 High Voltage Transformer in China 11kv Step Down Transformer Special Type Transformer thumbnail-1
LQJ-10 High Voltage Transformer in China 11kv Step Down Transformer Special Type Transformer photo-1
US$ 200 - 500 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ghorit
Model Number:
LQJ-10(Q), LQJ-10
Contact Supplier Request Quote Chat Now
Ghorit Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Ghorit
Model Number LQJ-10(Q), LQJ-10
Usage Other, Current, Current
Phase Other, Other, Single
Coil Structure Other, Toroidal, Toroidal
Coil Number Autotransformer

Description

The current transformers of the types LQJ-10 are full-enclosed products. They are used for metering electric energy and current, relay protection in the electric system up to rated frequency 50Hz or 60Hz and rated voltage 10kV. The transformers can be executed according to the standards GB1208-2006 and IEC 660044-1

LQJ-10 high voltage transformer in china 11kv step down transformer

Construction

This type of current transformer is fully enclosed and post type. It has a good ability of insulation, moisture proof and antipollution . It is small and light. It can be installed at any direction.

  LQJ-10 electronic transformer high voltage transformer

Technical data

1.Rated insulation level: 12/42/75kV;
2.Rated secondary current:5A,1 A;
3.Rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form:

 LQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformerLQJ-10 high voltage transformer in china 11kv step down transformer special type transformer



Type

Rated primary current (A)

Accuacy classes combination

Rated output (VA)

Rated short-time  thermal current (kA)

Rated dynamic current(kA)

0.2

0.5

5P10

LQJ-10(Q)

50  75

0.2/5P10       0.5/5P10

10

10

10

6

15

100

15

37.5

150

20.5

56

200-400

15

15

15

30

75

600-1200

48



 LQJ-10 high voltage transformer in china 11kv step down transformer special type transformer
