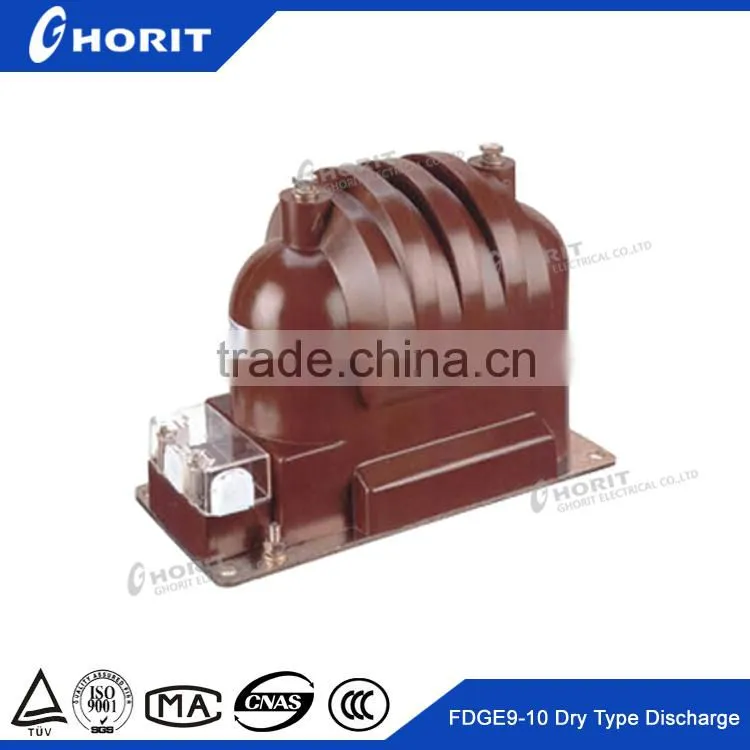

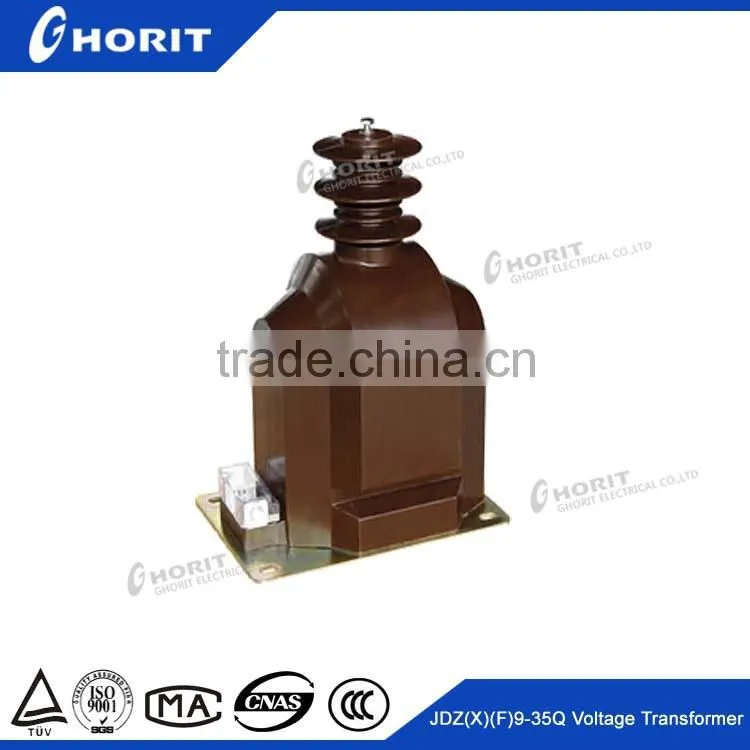

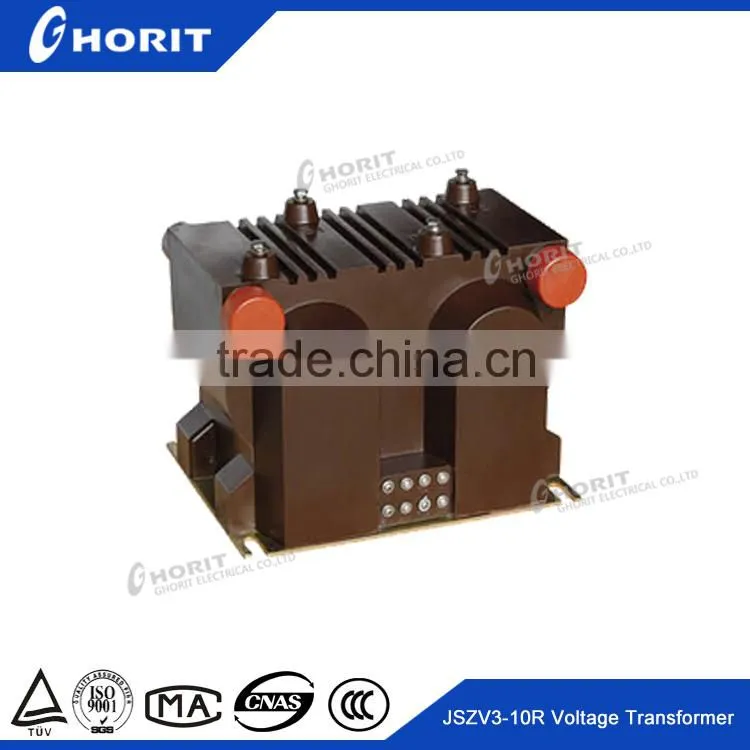

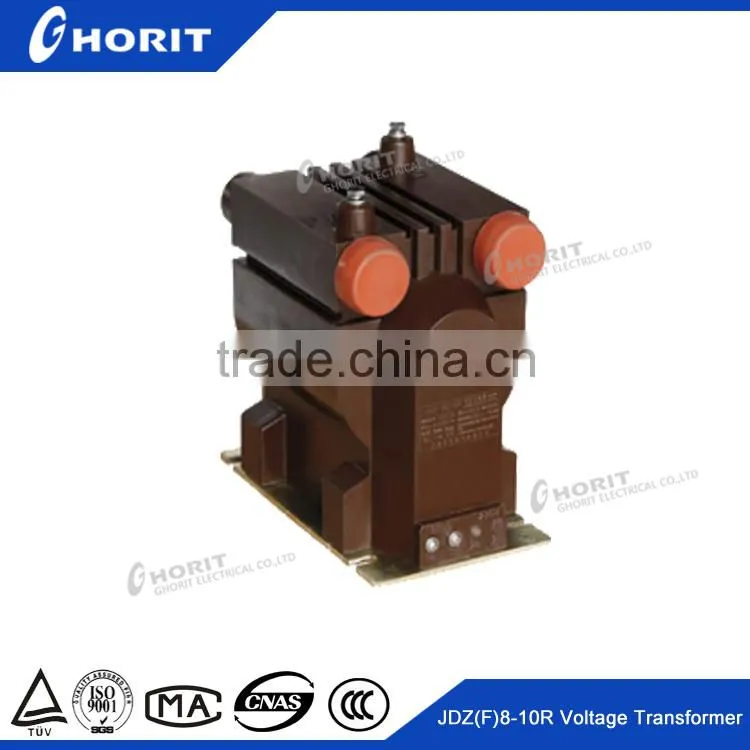

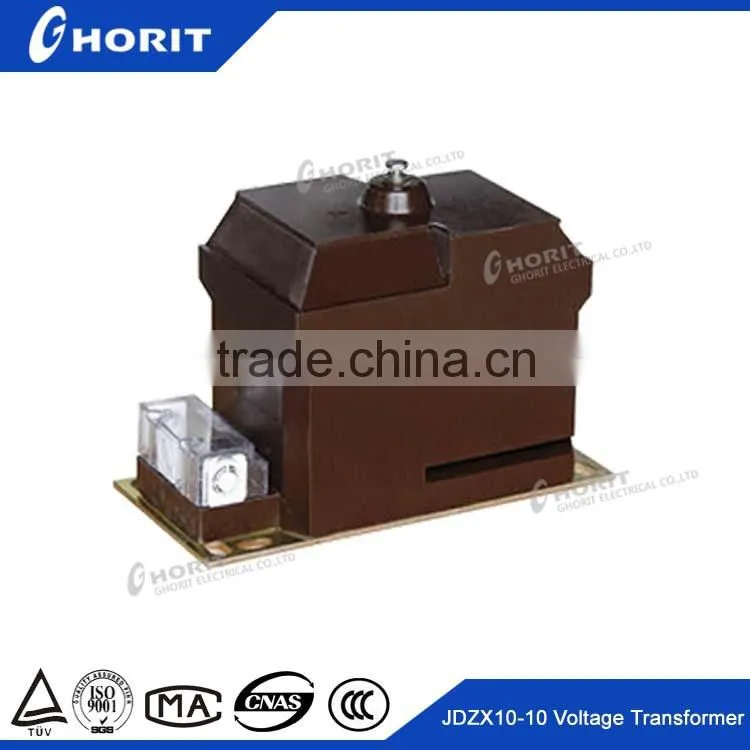

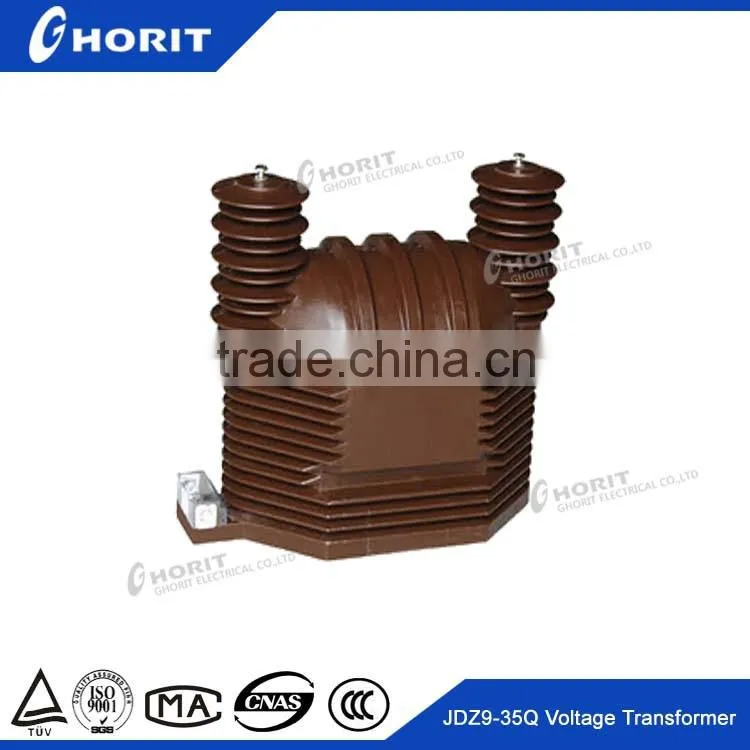

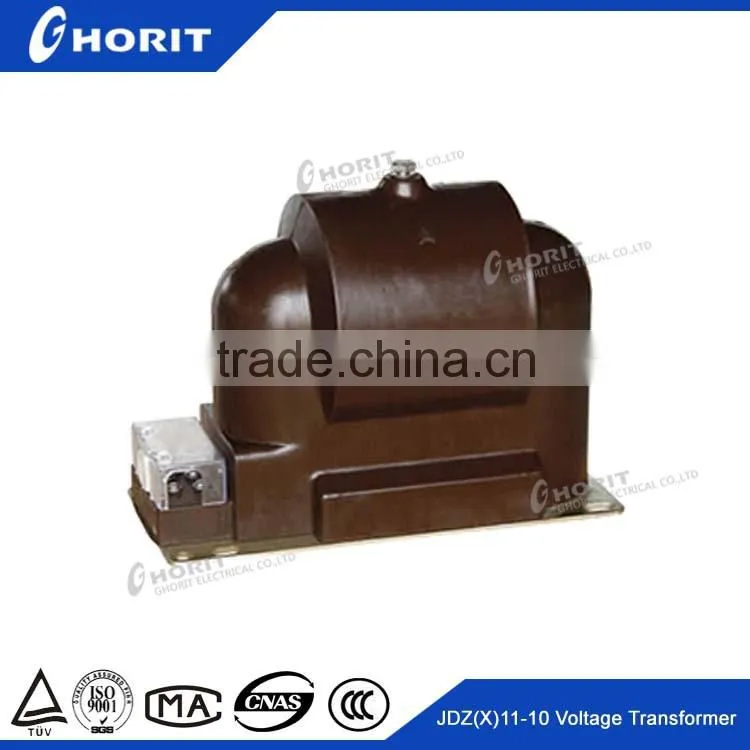

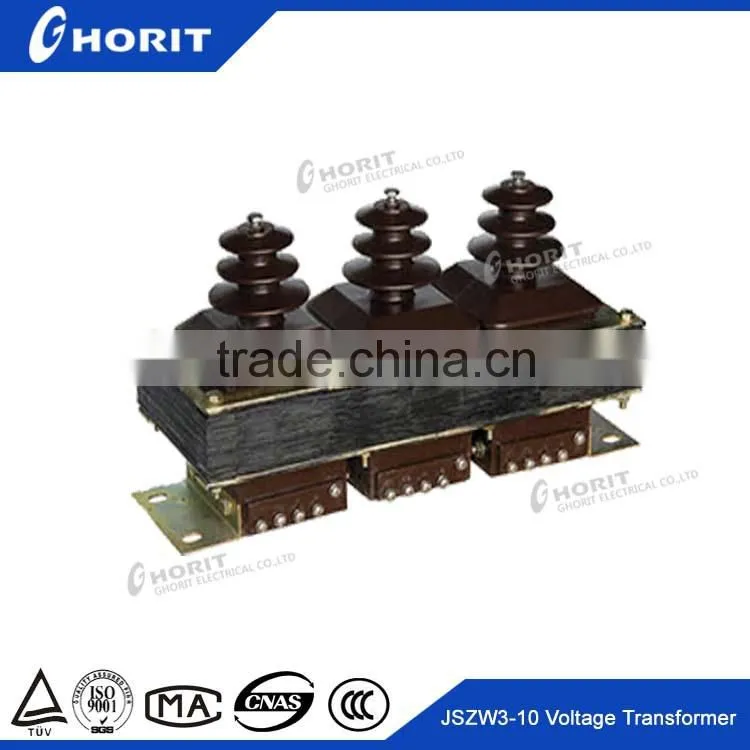

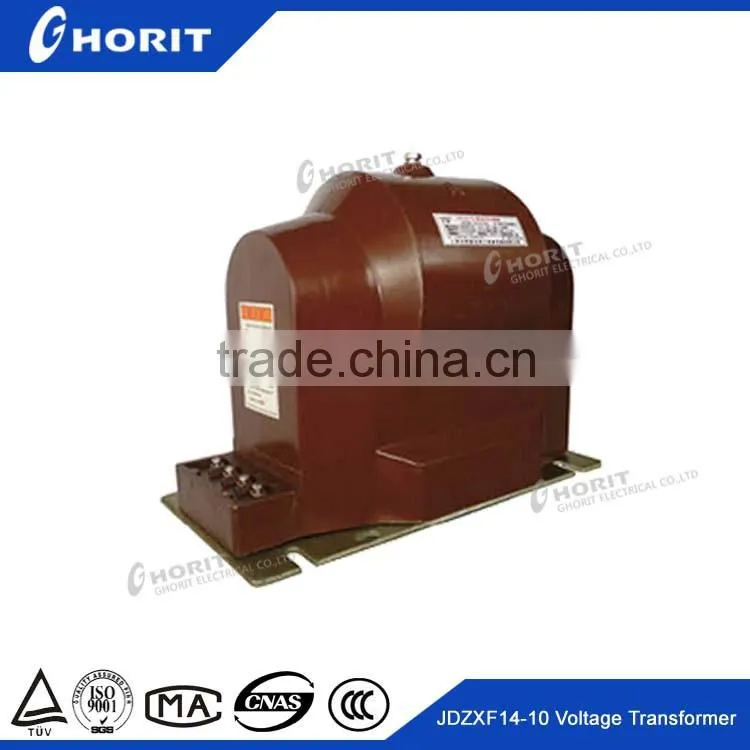

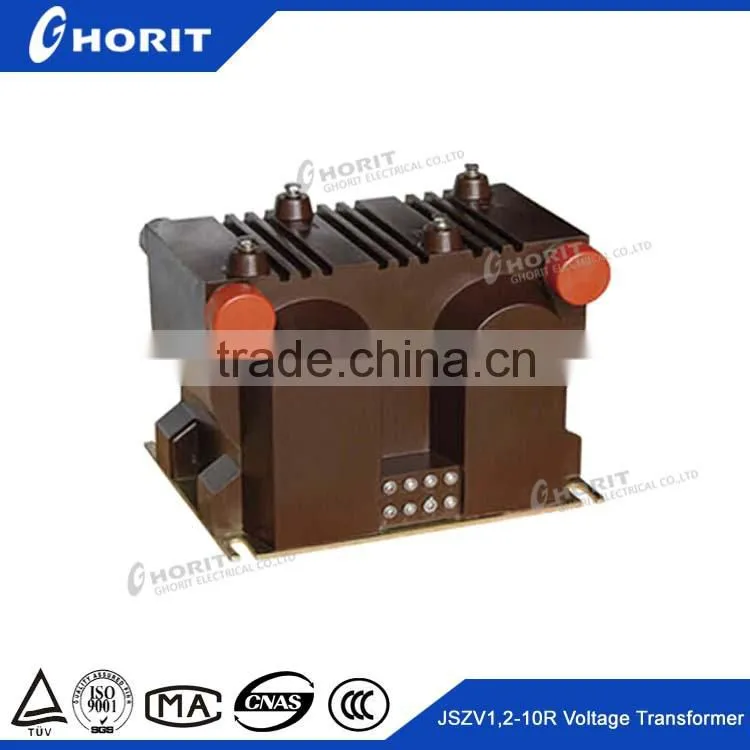

Help CenterJDZ8-10R 10kv 11kv High Voltage Transformer
Related Products
-
JDZX10-10 11kv Cast Resin Transformer Single Phase Transformer High Voltage 10kvUS$ 200 - 500MOQ: 10 Sets -
JDZ-10 Semi-encloesd Type Transformer Voltage Encapsulated Transformer 10kV ptUS$ 200 - 500MOQ: 10 Sets
-
JDZC-6kv 10kv Semi-enclosed High Voltage Transformer Constant Voltage TransformerUS$ 200 - 500MOQ: 10 Sets
-
JDZC-10 High Voltage Potential Transformer High Voltage Power Transformer Voltage Measuring TransformersUS$ 200 - 500MOQ: 10 Sets
-
JDZW-10R Cast-resin Voltage Transformer 11kV Potential Transformer 11kv Voltage TransformerUS$ 200 - 500MOQ: 10 Sets
Description
This series single-phase voltage transformer is fully enclosed epoxy resin casting insulation products, rated frequency frequency 50 Hz or 60 Hz, the rated voltage 3 kV, 6 kV, 10 kV of neutral, the effective grounded in power system, for energy measurement, electric pressure monitoring and relay protection use.
Construction
These voltage transformers are casting resin insulated, fully enclosed type. The iron core and winding are casting together. It is small and light. The secondary outlet line is wrapped by outlet box and has three exits with different direction feed lines.
Technical data
1 .The voltage transformers are in accordance with GB1207-2006 and IEC 60044-2 standards;
2. Power factor of load: COSφ =0.8(lagging);
3. Creep age distance: the product accords with the request of ιι class;
4. The other technical data see following table:
Type |
Rated voltage ratio(V) |
Accuracy class and rated output(vA) |
Limit output (VA) |
Rated insulated level(kV) |
||||||
0.2 |
0.5 |
1 |
6P |
|||||||
JDZ8-3 |
3000/100 |
15 |
30 |
60 |
50 |
300 |
3.6/25/40 |
|||
JDZ8-6 |
6000/100 |
7.2/32/60 |
||||||||
JDZ8-10 |
10000/100 |
12/42/75 |
||||||||
JDZX8-3 |
3000/√3/100/√3/100/3 |
3.6/25/40 |
||||||||
JDZX8-6 |
6000/√3/100/√3/100/3 |
7.2/32/60 |
||||||||
JDZX8-10 |
10000/√3/100/√3/100/3 |
12/42/75 |
||||||||
