Specifications
1.Solar Energy PV DC MCCB2.Pole:2p 3p 4p,
3.Offer OEM&ODM,CE&TUV&ISO9001
4.Amper:10-1250A

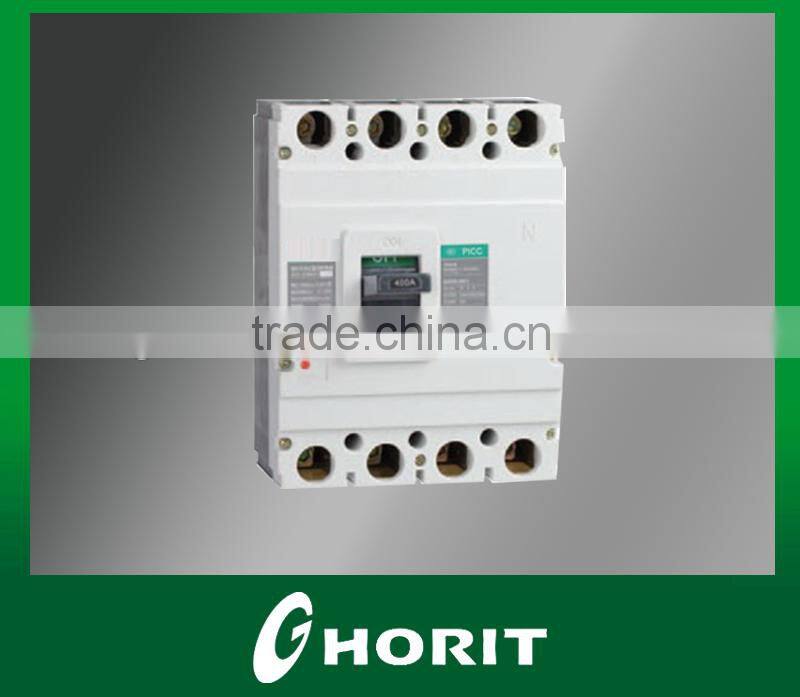

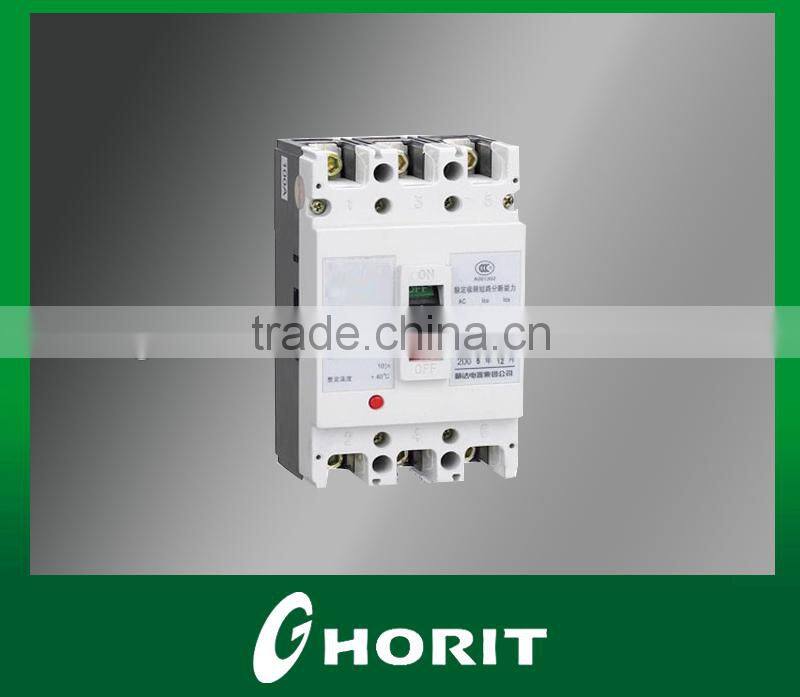

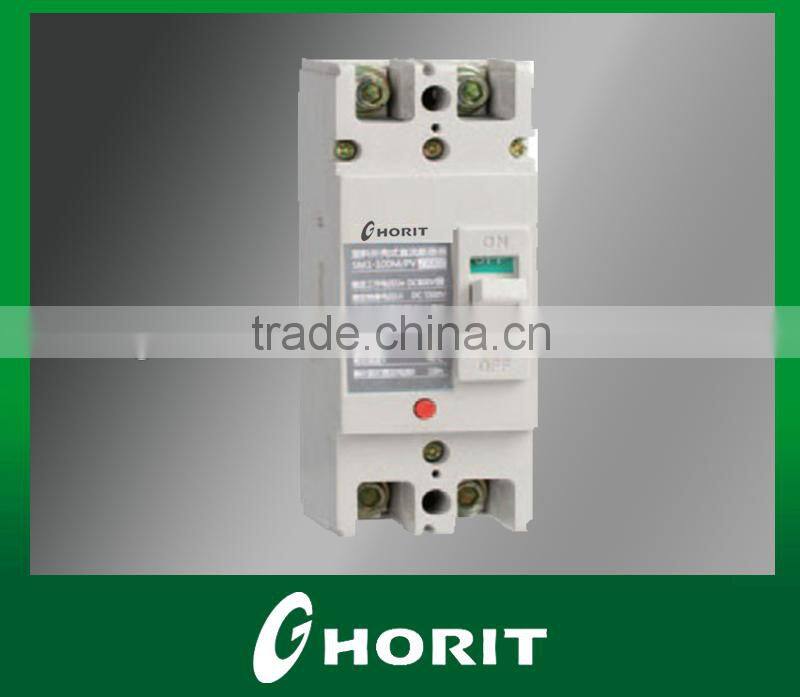

Product Name : PV system Circuit breaker 400A 750v 3 Pole DC MCCB
Type: DC Moulded Case Circuit Breaker
DC Molded case circuit breakers for DC applications with a specific version for photovoltaic applications
DC Molded case circuit breakers for DC applications with a specific version for photovoltaic applications
A) Safety and protection
B) Simplicity of installation and use
C) Common accessories with the rest of the Compact SM1 range
1) A wide selection of models suited to many applications ( 3 and 4 poles from 63 to 1250 A)
2) High breaking capacities with four performance levels from 10 kA to 100 kA
3) Fewer frame sizes: just two pole pitches for easy integration in installation systems (enclosure, machines, etc.)
4) Accessories for insulation and series or parallel connection of pole, suited to the particularities of DC applications
| GRM1-125 | GRM1-225 | GRM1-400 | GRM1-630 | GRM1-800 | GRM1-1250 | |
| Inm | 125 | 225 | 400 | 630 | 800 | 1250 |
| In (A) | 16,20,25,32,40,50,63,80,100,125 | 100,125,140,160,180,200,225 | 250,315,350,400 | 400,500,630 | 630,700,800 | 800,1000,1250 |
| Ue(DC) | 250V, 500V, 750V, 1000V, 1500V | |||||
| Ui(V) | 1000V | 1500V | ||||
| Uimp(kV) | 8kV | |||||
Mechanical life |
7000 | 7000 | 4000 | 4000 | 2500 | 2500 |
Electrical life |
2000 | 2000 | 1000 | 1000 | 800 | 600 |
Safety clearances and minimum distances
1) Terminal shields are mandatory for all DC-PV circuit breakers (U≤1500 V DC).
2) Terminal shields can be used in option with DC PV switch disconnectors
