2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor With Gearbox And Different Speed, Gear Reducer

2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor With Gearbox And Different Speed, Gear Reducer thumbnail-1
2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor With Gearbox And Different Speed, Gear Reducer thumbnail-2

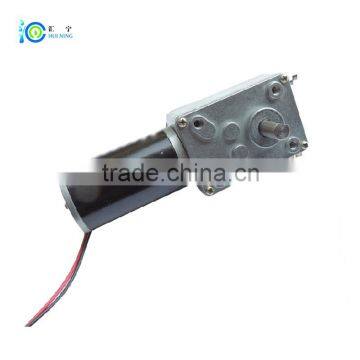

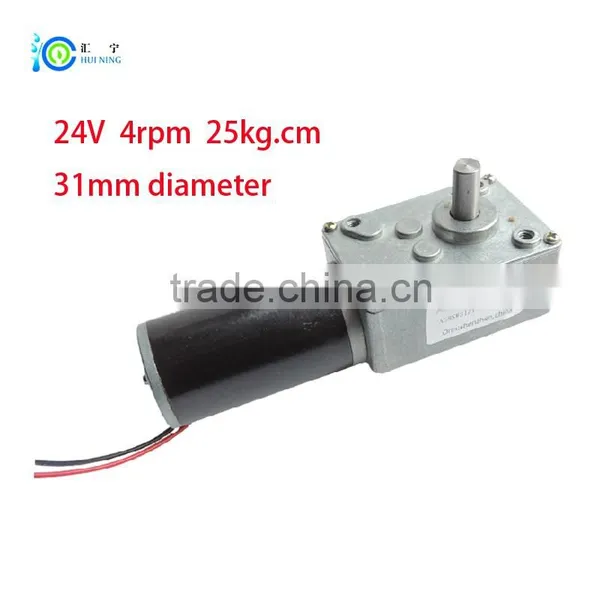

2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor With Gearbox And Different Speed, Gear Reducer photo-1
2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor With Gearbox And Different Speed, Gear Reducer photo-2
US$ 15 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Alsong
Model Number:
Dc Electric Worm Motor
Contact Supplier Request Quote Chat Now
Ningbo Huining Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Alsong
Model Number Dc Electric Worm Motor
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification CCC, CE, ROHS, VDE
Type Gear Motor
Torque 25kg.cm, 25kg.cm
Construction Permanent Magnet
Commutation Brush
Protect Feature Drip-proof
Speed(RPM) 5rpm
Continuous Current(A) 360mA
Output Power 7w
Voltage(V) 24V
Efficiency IE 1
2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor with Gearbox And Different Speed, Gear Reducer, free Shipping
Rated Volatge : 24V   (Working Volatge: 12-24V)
No-load speed: 5 rpm. (Rated speed: 4 rpm)
No-load current: 180mA (Rated current:  360mA)
This kind can not working with stall .



Also we have different speed and different torque:

1: No-load speed 5 rpm, load speed: 4 rpm, Load current 360mA, Torque: 25kg.cm
2: No-load speed 14rpm, load speed: 11 rpm, Load current 370mA, Torque: 20kg.cm
3: No-load speed 27 rpm, load speed: 21 rpm, Load current 380mA, Torque: 18kg.cm
4: No-load speed 50rpm, load speed: 40 rpm, Load current 380mA, Torque: 12kg.cm
5: No-load speed 77 rpm, load speed: 61 rpm, Load current 380mA, Torque: 10kg.cm
6: No-load speed 114rpm, load speed: 91 rpm, Load current 400mA, Torque: 6kg.cm
7: No-load speed 240 rpm, load speed: 192 rpm, Load current 400mA, Torque: 6kg.cm


Drawing:2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor with Gearbox And Different Speed, Gear Reducer2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor with Gearbox And Different Speed, Gear Reducer2016 Bldc 24v 4rpm 25kg.cm High-torque for Dc Electric Worm Motor with Gearbox And Different Speed, Gear Reducer
