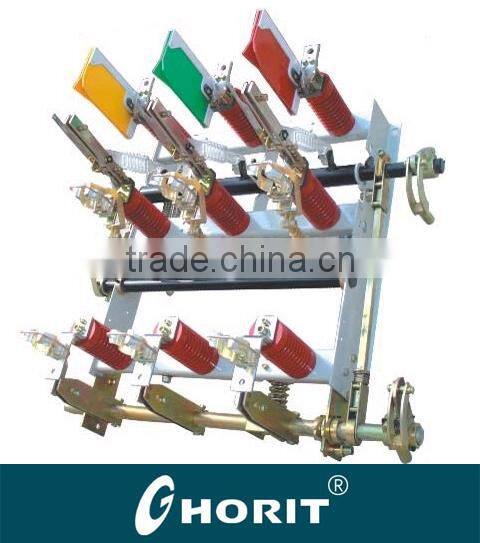

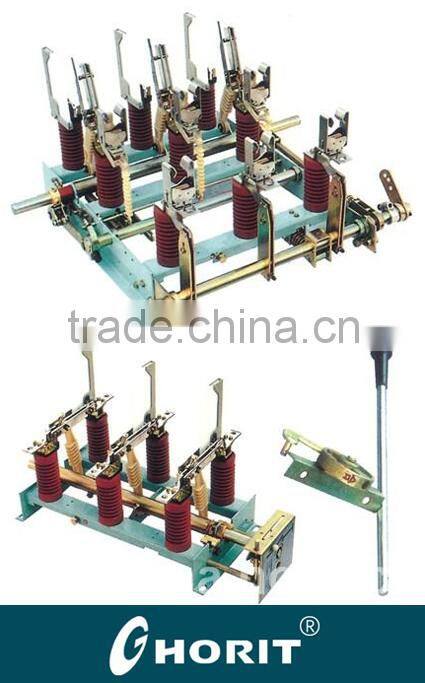

FN7-12DR AC High Voltage Indoor Load Break Switch

FOB Price

US$ 200 - 600 / Set

1 Set(Min. Order)

Port Shanghai&Ningbo
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	ghorit
Model Number	FN7-12 Series	Type	Other, high voltage load switche, High Voltage
Poles Number	Other, 3, 3

Product Description

Normal Serviec Condition

1,The altitude does not exceed 1000m.2,The ambient air temperatrue : Max:+40^oC. Min:-25^oC.
3,The relatire humidity of air Daily average ≤95% . Monthly average ≤90%
4,The ambient air should not be obviously polluted by corrosivity or the flammability gas steam.Etc.
5,The working situation without frequent violent.

Summary

Classification	Full type	DS Earth switch at the wire-in end	DK Earth switch at the wire-in end	L Interlock device	R Fuse box	RA String fuse box	F Off device by motor
Without tripper	FN7-12	—	—	—	—	—	—
	FN7-12DSL	Δ	—	Δ	—	—	—
	FN7-12DXL	—	Δ	Δ	—	—	—
	FN7-12R	—	—	—	Δ	—	—
	FN7-12DSLR	Δ	—	Δ	Δ	—	—
	FN7-12DXLR	—	Δ	Δ	Δ	—	—
With striking tripper	FN7-12RAF	—	—	—	—	Δ	Δ
	FN7-12DSLRAF	Δ	—	Δ	—	Δ	Δ
	FN7-12DXLRAF	—	Δ	Δ	—	Δ	Δ

Specified parameter

Rated voltage	Max.voltage	Rated current	1min power frequency withstand voltage	4S heat-stabling current(value)	Machine stabling current(peak)	Short-circuit controlling current	Rated switch-off current	Rated transfer current
12	12	400	42/48	12.5	31.5	31.5	400	1000
12	12	630	42/48	20	50	50	630	1000

Rated parameter of fuse box

Type	Rated current	Rated switch-off current	Fuse body rated current
SDLA*J	12	40	6.3,10,16,20,25,31.5,40
SFLA*J	12	100	50,63,71,80,100
SKLA*J	12	125	125
