Shenzhen Heng Jin ZhiTechnology Co., Ltd. based in Shenzhen & established in 2014,and specialized in automatic soldering equipment, automatic locking screw equipment, automated dispensing equipment, labeling machines, laser machines, ACF machines, automated assembly line,other high-tech enterprise automation control equipment,standardizedmachines,non-standard machines and related product development, production, sales and import and export.We provided high-speed, high-precision fully automated technology programs with high reliability and flexibility to our customers mainly in the telecommunications, semiconductor, plastic modules, automotive electronics, new energy and other areas. Currently, our products are mainly exported to Europe, America, Southeast Asia and other markets, the main customers include Oticon, Electrolux. Bosch, Flextronics, Foxconn, Panasonic, Philips, Huawei, ZTE and so on. Heng Jin Zhi Technology Co., Ltd. has accumulated years of technology industry experience, adhere to the people-oriented, innovative development concept, to provide 24-hour service to support customer demand, professional engineers to help customers complete the installation, commissioning, training and process improvement. We look forward to providing professional solutions for automated production processes and agents to join us in the global market. Our vision: to become a global manufacturer and marketer of leading automation products. Our mission: to create value for customers.
2. Product Specifications

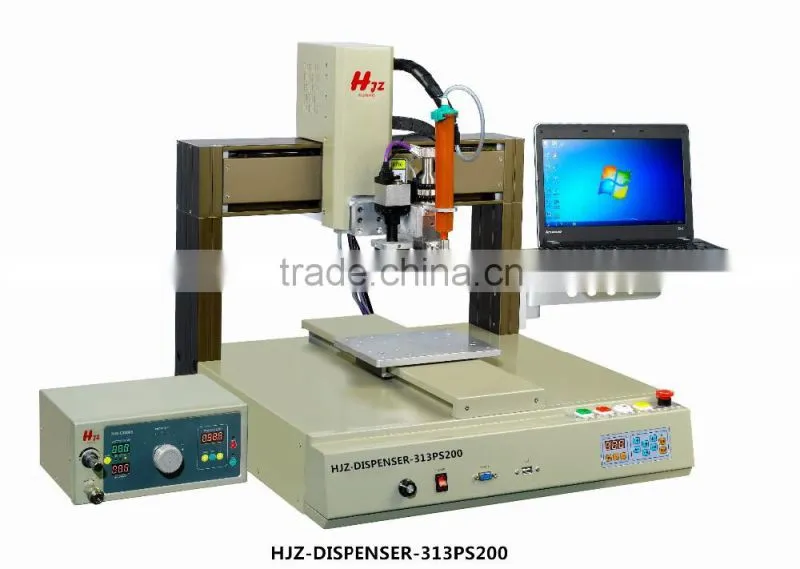

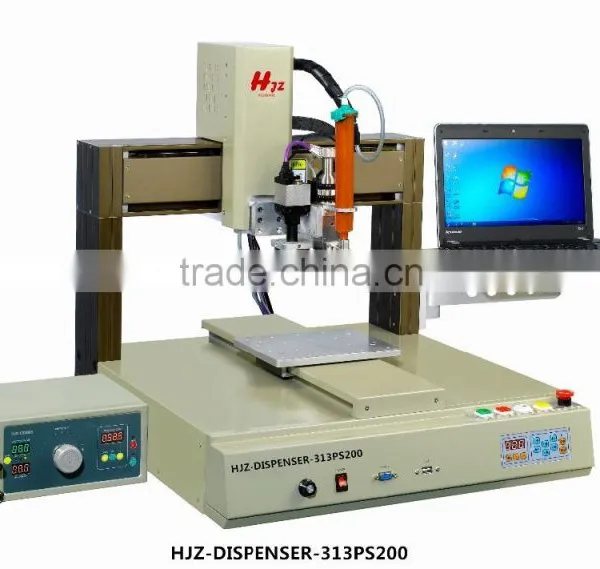

| Model | HJZ-DISPENSER-313PS200 |
| Min driving pressure | 90psi |
| Working pressure | 0-0.3Mpa |
| Liquid input | 1/8RC |
| Available liquid viscosity | 1-20000cps |
| Min spary dot (diameter) | 0.2mm |
| Fixing method | MS fixing hole, adjusable fixing block |
| Max working frequency | 200 cycles /min |
| Valve body | Steeless |
| Liquide contact material | (liquid groove, firing pin, and nozzle are all steeless) |
| Firing pin seals | Telfon |
| Feeding configuration | Stainless steel syringe luer connection (standard) inserted down the tube joint to joint (optional) |
| Springe size (CC) | 3/5/10/30/55 |
| Tube size | 4"/6" |
| Main valve | Stainless steel |
| Liquid channel | Stainless steel |
| Firing pin module | Special high strength material + 303 |
| Nozzle module | Special high strength mateiral |
| Liuid seals | PTFE+301 |
| Air seals | Polyurethane |
| Electrial magnet valve | 24V(DC) 5W (Optional) |
| Heater | 6061 AL anodizing (Optional) |
| Heating tube | 110V(DC) 50W (Optional) |
| Max heating tempreature | 80C |
| Size | 615mm*660mm*565mm |
| Weight | 65kg |
3. Product Feature
Featuer:
DPS200 is a non-contact dispensing valve, for a variety of liquids such as surface-mount plastic, conductive silver paste, IC packaging plastic, underfill, sealant, glue and other surface coating materials of various types of adhesives controllable traffic, high-speed dispensing operations. Both small confined space incident hundred microns, can be completed at the specified location to repeat precision dispensing 0.01 milligrams, fully compatible with a variety of automated dispensing platform,
Advantages :
1 high speed
Z-axis motion without the traditional needle dispensing process necessary for the dispensing rate is more than three times the needle dispensing.
2 precision
Minimum dispensing volume of up to 5 nanoliters, the minimum dot diameter can be controlled to 0.2mm, and a traditional needle dispensing unmatched consistency.
3 High flexibility
Dispensing of highly sensitive, avoid needles adverse impact caused by the workpiece; a very small amount so that SPS- dispensing operation can be carried out in a more compact space, complete dispensing needle dispensing process can not be achieved.
4. low maintenance high life
Advanced structural design, daily cleaning and maintenance easy. The most advanced nano-wear-resistant material parts, is more than 20 times the life of common materials.
