1. Company Profile
Shenzhen Heng Jin ZhiTechnology Co., Ltd. based in Shenzhen & established in 2014,and specialized in automatic soldering equipment, automatic locking screw equipment, automated dispensing equipment, labeling machines, laser machines, ACF machines, automated assembly line,other high-tech enterprise automation control equipment,standardizedmachines,non-standard machines and related product development, production, sales and import and export.We provided high-speed, high-precision fully automated technology programs with high reliability and flexibility to our customers mainly in the telecommunications, semiconductor, plastic modules, automotive electronics, new energy and other areas. Currently, our products are mainly exported to Europe, America, Southeast Asia and other markets, the main customers include Oticon, Electrolux. Bosch, Flextronics, Foxconn, Panasonic, Philips, Huawei, ZTE and so on. Heng Jin Zhi Technology Co., Ltd. has accumulated years of technology industry experience, adhere to the people-oriented, innovative development concept, to provide 24-hour service to support customer demand, professional engineers to help customers complete the installation, commissioning, training and process improvement. We look forward to providing professional solutions for automated production processes and agents to join us in the global market. Our vision: to become a global manufacturer and marketer of leading automation products. Our mission: to create value for customers.
2. Product Specifications
| Machine size | 520*560*750mm (L*W*H) |
| Efficiency size | 300*300*100mm (X*Y*Z) |
| Dispenser accuracy | +/-0.05g |
| Resoluiton | 0.01mm/axis |
| Drive mode | 3 axis precision step motor |
| Poistioning accuracy | +/-0.02mm |
| Slide guide | Precise linear guide railscrew rod |
| Motor system | Percise step motor |
| Controller | Japan masashi |
| Memory size | Memory size:200 group, 5000dot/group |
| Dispensing method | singledouble tilt, rotary |
| Max travelling speed | 400mm(XY)/200mm(Z) |
| COM | USB |
| Language | English/Chinese |
| Power | 110VAC220VAC, 50HZ/60HZ |
| Weight | 30kg |
| Packing | Wooden box |
3. Product Feature
1.Can acheive dispensing dots,lines,arcs and circles.
2, Japan's three star annular belt, Taiwan PMI linear guide with Japan's Shin-Nong stepping motor highly cost-effective combination.
3, when the high-speed movement is very smooth and low noise operation.
4, aluminum surfaces without glue special treatment, clean the machine becomes extremely easy.
5, using a special assembly process timing belt pulleys and motors, with the latest Japanese technology belt, completely solve the long-term use of belt tensioning and loosening problems.
6, a modular assembly process, each of the key components and key locations can be individually demolition, accidental damage parts Jieke quickly replaced.
7, using a combination of European import brands button switches, high sensitivity and durability.

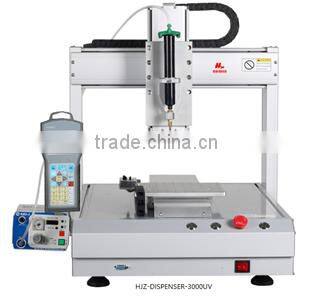

4. Product Photo
5.Suitable liquid
Various solvents, adhesives, paints, chemicals, glue, etc., including silica gel, EMI Conductive plastic, UV glue, AB Glue, fast rubber, epoxy glue, sealant, hot glue, grease, silver plastic, red plastic, solder paste, thermal grease, solder Paste, lacquer, screw fixation agent, wood glue, anaerobic adhesive, acrylic adhesive, wear rubber, Crystal, potting compound, Horn glue, instant glue, rubber, paint, enamel paint, lacquer, ink, pigments, etc.

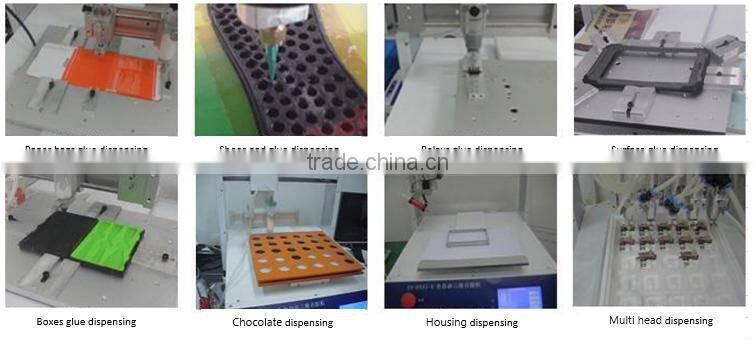

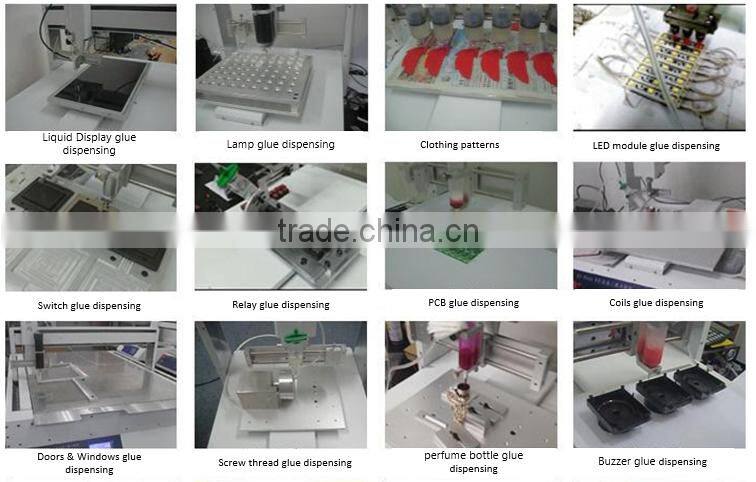

6. Applications
Dispenser for industrial production in various fields: the phone keypad, printing, switches, connectors, computer, digital Code products, digital cameras, MP3, MP4, electronic toys, horn, buzzer, electronic components, integrated circuits Road, circuit board, LCD , relays, speakers, crystal components, led lamp , Chassis bonding, optical mirrors Head, seals and other mechanical parts.
7. Quality System: ISO9001
8.Quality Ensurance
- Assembly process control with traveling card.
- 100% finisnl inspection.
- 72hrs running with power before out going.
9.Our Service
- On time delivery, 5-8 days deliery time for normal machine,cutomized machine maximum 15 days.
- Provide free training.
- 1 Year warranty except consumption parts.
- 10 hours response time for oversea customers, 72 hours can provide the repair service in customers country. normally we can provde 24hrs on line service. we can arrange our engineer go to oversea customer for training or repair if requested by customer.
- Free for software upgrade.
- Whole life service after warranty.
