General

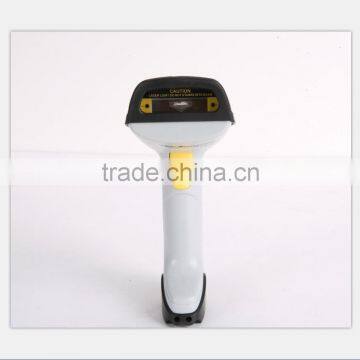

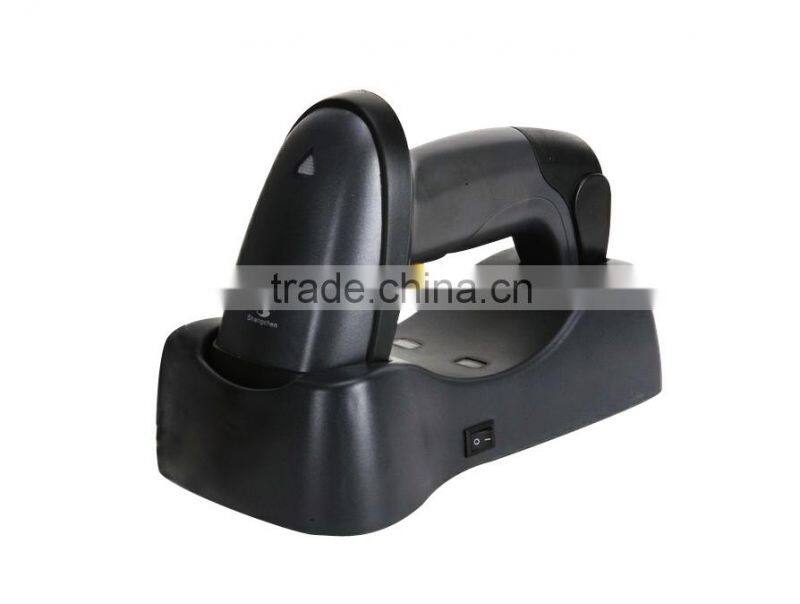

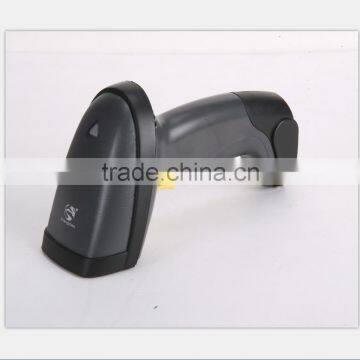

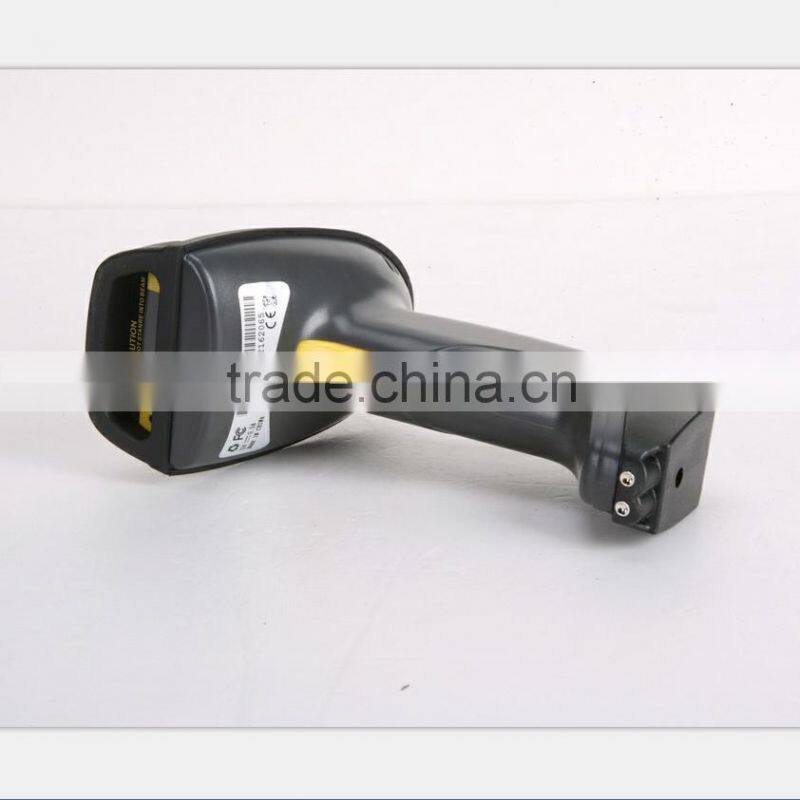

SC830W is one of our wireless scanners with 433MHz long distance transmission,which provide industrial use and charge point, high reliability and durability which make it ideal choice for warehouse and logistics for harsh environments.
Features:
1. High transmission ability and high performance under the wireless interference conditions;
2. Provide different channels for choice;
3. High durability with large battery capacity;
4. Large memory makes it possible in storing more barcodes in inventory mode;
5. Provide industrial use and charge point with high reliability.
Specifications
Transmit Performance | |
Frequency Band: | 433MHz ISM band |
Transmission range: | 200 to 300 meters open space |
Pairing ability: | Base supports up to 70 scanners |
Memory: | can save over 2000 scans(calculated @ when length of barcode <15Bytes) |
|
|
Scan Performance | |
Scan Mode: | Manual , Automatic |
Indicator | Beeper and LED (good read blue and one beep) |
Read Rate: | 200 scans/sec |
Transfer Rate: | RS232baudrate: 2400-38400 |
Resolution: | 4mil |
Revolve Angle: | ±70° Left-right, ±70° Top-down |
Scan Depth of Field: | 0-550mm |
Bit Error Rate: | 1/8 million |
Print contrast: | Above 30% Black |
Scan width: | 5mm-30cm |
Decode Type: | UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN, Code39, |
| CODABAR,Interleaved 2 of 5, Industrial 2 of 5, Chinese 2 of 5, |
| Code128, Code93,Code11 MSI/PIESSEY, UK/PLESSEY, |
| UCC/EAN128, China Postage |
Electrical | |
Voltage: | DC 5V ±5% |
Operating Current: | 65 mA, 30 mA (Standby), 135 mA (Peak) |
Interfaces: | USB |

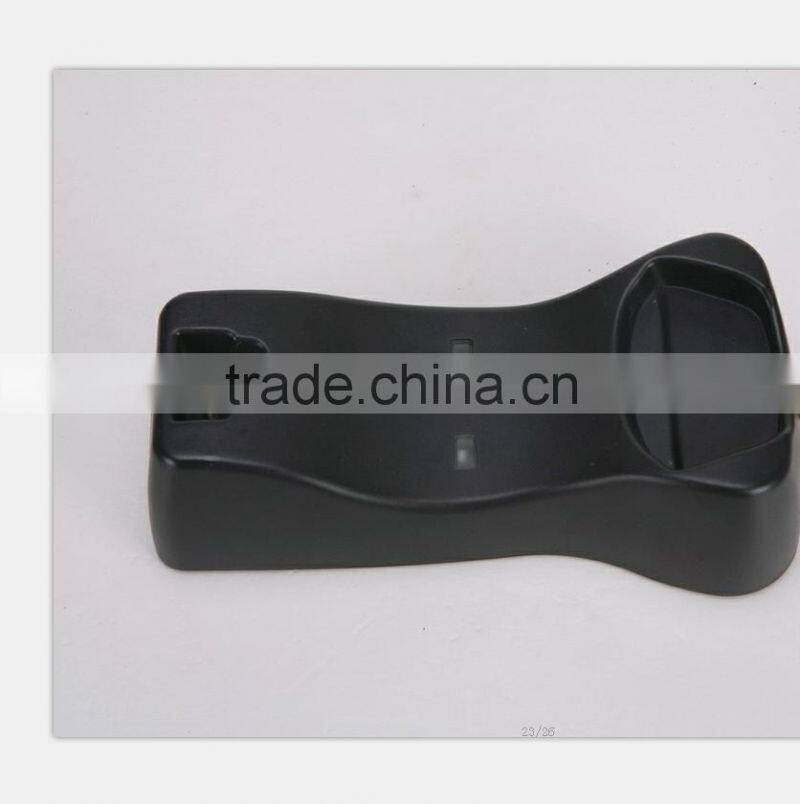

Power Source(base): | USB from host system |
Battery(scanner): | 3.7V/1000mAH, polymer li-ion |
Working Period: | Over 20 hours (when continuous scanning) |
Standby time: | 3 months |
Light Source: | 650nm visible laser diode |
Dustproof and waterproof: | IP54 |
ESD Protect: | 15KV |
Environmental | |
Operating Temperature: | -20°C ~ 60°C |
Storage Temperature: | -30°C ~ 90°C |
Humidity: | 5% ~ 95% RH (non-condensing) |
Mechanical | |
Dimensions | Base with Scanner: 227mmL x 107mmW x 138mmH |
Weight: | 415g |
Color: | Black, Grey |
Cable: | 2m |
Other | |
Language: | Support multiple languages |
Interface Type: | RJ-45 |
Accessories: Scanner, Manual, Cable, Neutral Packing Box
Individual Package: 1pc/box
Packed Size: 23*15*13.5cm
Packed Weight: 0.7kg
Outer Carton: 20pcs/carton
Packed Size: 68.5cmx47.5cmx33cm
Packed Weight: 15kg
SMT Department
Mold Department
Workshop
1.Cost Control - Good control of cost, would be able to provide you most competitive price.
2.Quality Control - Products passed CE,FCC,RoHs certifications.
3.Customer Service -We will reply your email or question within 24 hours.
4.Fast Delivery Time - 7 to 20 days upon order requirement.
1. OEM project is possible or not?
Yes, OEM project is welcomed.
2. How about the minimum order quantity?
Normally minimum order quantity is 100pcs/item.
3. Is that possible to silk customers' logo on products?
Yes, it is possible, and we will require the quantity is more than 200pcs.
4. How long will be the Warranty?
Normally we provide our products with 1 year warranty, it could be longer as well. However, price will be different when warranty period is longer.
5. Would you provide the RMA to custoemrs?
Yes, we will provide 1% free RMA to our customers.
