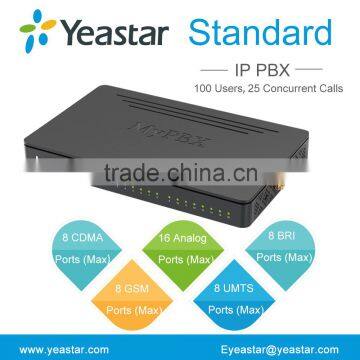

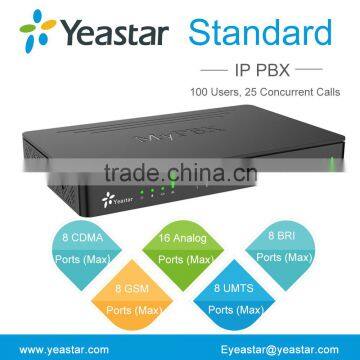

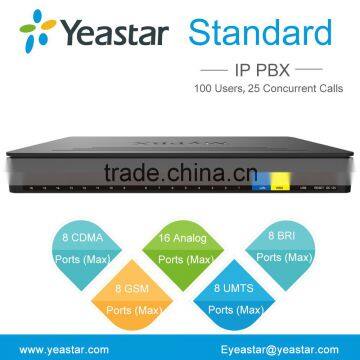

Yesastar Standard IP PBX System with GSM/ FXO/FXS/BRI/CDMA Ports
- 5000 Unit / Units per Month
- XIAMEN
- Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | Yeastar | Model Number: | MyPBX Standard V7 |
Product Description
MyPBX Standard offers unrivalled features for SMBs (up to 100 users) at a competitive price with unmatched stability and simplicity. It supports various combinations of telephony port interfaces, thus facilitating easy migration to VoIP.
1. Stable Asterisk-based PBX with modular design
· O2 Module: a module with 2 FXO ports to terminate two analog PSTN(POTS) lines
· S2 Module: a module with 2 FXS ports to terminate two analog telephone
· SO Module: Unique PSTN Fallback Function! Make/receive calls even when system power break down
· B2 Module: a module with 2 BRI ports to terminate two BRI lines
· GSM Module: a module with 1 GSM port to terminate GSM network
· UMTS Module: a module with 1 UMTS port to terminate UMTS network
2. Easy to deploy and manage through Web-based interface
· Easy to deploy and manage: Login/Logout
· Support Multi-language
|
3. Specification
· Enjoy full system capacity without licensing fee
IP Phone users | 100 |
Concurrent calls | 25 |
Onboard Flash | 512MB |
Onboard RAM | 512MB |
Analog Ports (Max) | 16 |
BRI Ports (Max) | 8 |
GSM Ports (Max) | 8 |
UMTS Ports (Max) | 8 |
LED | Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS |
LAN | 1(10/100Mbps) |
WAN | 1(10/100Mbps) |
USB | 1(USB2.0) |
Protocol | SIP (RFC3261),IAX2 |
Transport | UDP, TCP, TLS,SRTP |
DTMF | RFC2833, SIP INFO,In-band |
Codec | G.711 (a-law, u-law),G.722, G.726, G.729 A, GSM,Speex, ADPCM, H261, H263,H263p, H264, MPEG4 |
· Cost-effective products with rich feature set
Basic Features | Queue, Caller ID, Blacklist, Follow me, Voicemail(3000min), Ring Group, Speed Dial, Conference, Blind Transfer, Music on Hold, Attended Transfer, Music on Transfer, Intercom/Zone Intercom, Call Detail Records (CDR), Automated Attendant (IVR), Skype Integration (Skype Connect), Call Back/ Forward/ Parking/ Pickup/ Routing/ Waiting,Do not Disturb (DND) |
Advanced Features | Static Route, LDAP Server, Dial by Name, Mobility Extension, Route by Caller ID, QoS (voice quality), Distinctive Ringtone, One touch recording, Redundancy (Hot Standby), Direct Inward System Access(DISA), Spy functions (Normal Spy, Whisper Spy, Barge Spy), Phone Provisioning for Aastra, Cisco, Escene, Fanvil, Grandstream, Panasonic, Polycom, Snom, Yealink IP Phones. |
Security | Firewall, SIP TLS transport, SRTP(RTP encryption) |
Faxes | T30, T38 faxes, Fax to email, Incoming fax tone detection |
SMS Features | Email to SMS, SMS to Email |
Internet | DHCP server, DDNS, Static IP, DHCP client, PPPoE, VLAN over LAN, VLAN over WAN, Open VPN, L2TP,IP Sec |
Environment | Size:280x175x33mm; Weight: 700 g; Power Supply: AC 100~240V,50~60 Hz; Operation Range: 0 to 50°C,32 to 122°F; Storage Range: -20 to 65°C,-4 to 149°F; Humidity: 10-90% non-condensing |
· Multi-language Web GUI and voice prompts
Applications

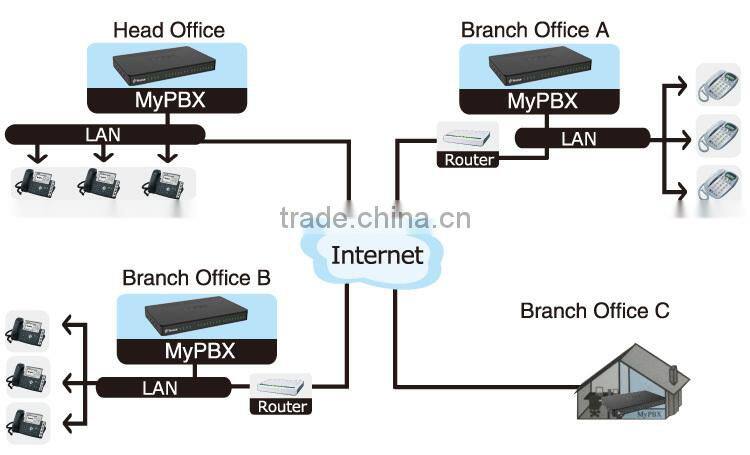

· Muti-site & branch offices
MyPBX provide seamless communications between sites. Enjoy the benefits of extension to extension calls via your data network, extending your available resources across your multiple locations.

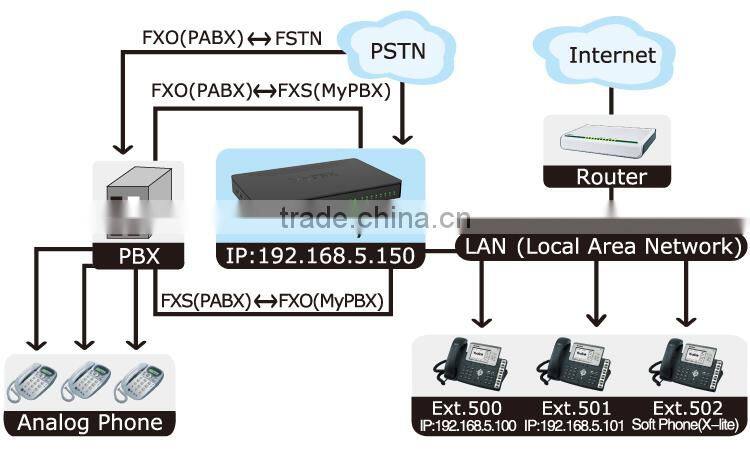

· Combine MyPBX with Existing Traditional PBX
If already existed a traditional PBX in your office, how can you add more PSTN lines/extensions or use VOIP solution in the exist solution?

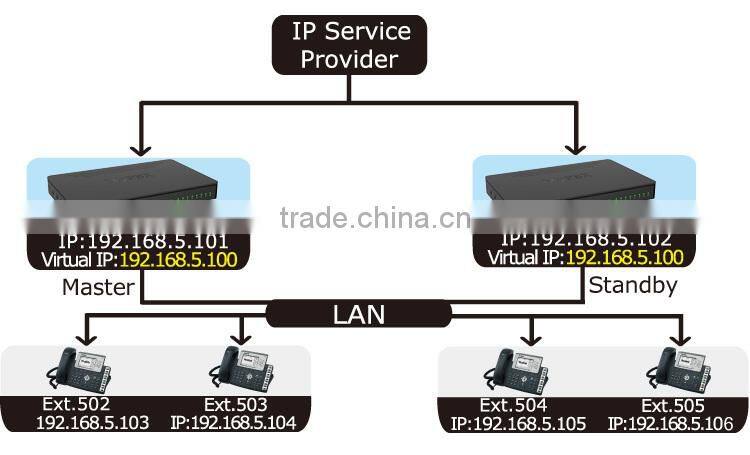

· Redundancy
Two MyPBX could be optimized for use as a failover system which could provide rapid failover in the event of system failure. Once the active server failure is detected, all the telephony would be switched to the standby server automatically. Thus the downtime was kept to an absolute minimum to ensure the normal operation of all the functions for users.
1. Perfect interoperability with major IP phone brands
2. Compatible ITSP
1. Shipping
· within 2-3days after the payment
· support any delivery methods as you require, such as:
2. Superior customer Service:
· 3 year Warranty
· Free firmware upgrade for life
· 24 hours Technical support through phone calls, emails, skype, and remote assistance
· Various training, including sales and technical training like online Webinar
· Customizable products with OEM/ODM service
Company & Factory
· Yeastar specializes in the developing and manufacturing of IP-PBX and VoIP gateways, and is committed to the distribution of new generation technology products in the field of enterprise communications.
· Our factory applies SMT craft with strict quality control is consistent with ISO 9001 Quality Accreditation.
Yeastar attendends professional exhibitions together with our distributors:
CeBIT, ITEXPO EAST, GITEX, Convergence India, Elastix World, BroadSoft Connections, Hong Kong Electronics Fair...ect.
Contact Us
- Xiamen Yeastar Information Technology Co., Ltd.
- Contact nameJanet Ouyang
- Phone86-592-5503301
- Address3/F, No.46 Guanri Road, 2nd Software park Xiamen,Fujian
