QZD-300A hydraulic plier cable lug crimping tools open type 16-300mm2
hydraulic plier
Tool Description:for QZD-300A hydraulic plier
| Product Name: | hydraulic plier |
| Model: | QZD-300A hydraulic plier |
| Material: | Carbon Steel,Plastic |
| Application: | For cable lug |
| Crimping range: | 16-300mm2 |
| AWG: | - |
| Length: | 690*250*120mm |
| Weight: | 5kg |
Features:
1.After many years of research and development, our company company has produced the brand new desigh "full automatic reset"
patented product for new generation of intelligent high-tech manual hydraulic press plier to make users do things with facility during their work and experience the advantage of hydraulic tool and its automatic device. Come on to have a try
2.German high and new technology, novel design of LISIDA
3.Full automatic reset can replace safety device and save the time of manual pressure release
4.Manual pressure release button can be loosened during the pressing course and can reset rapidly
5.Built-in combined type oil valve is convenient for maintenance with less malfunction;

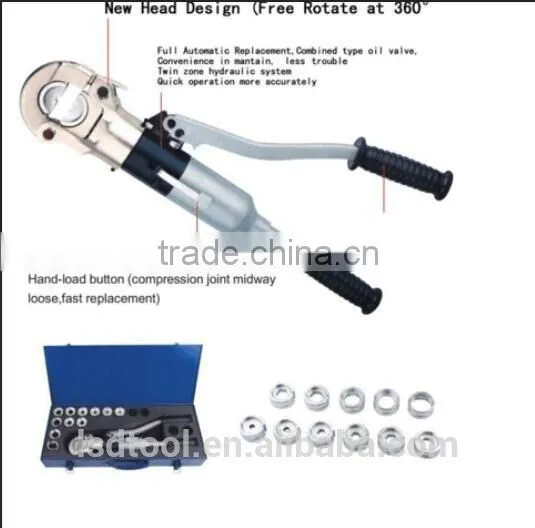

6.It's head part adopts open type and bolt bar type, It is handy and solid and can rotate freely at 360 degrees of angle
| Item No | Crimping range | Crimping force | Stroke | Weight | Standard dies | Packing&Size | Type |
| QZD-120A | 16~120mm² | 7 ton | 13mm | 3.0kg | 16,25,35,50,70,95,120mm² | 545*240*130mm | (Bolt type) |
| QZD-240A | 16~240mm² | 10 ton | 16mm | 4.5kg | 16,25,35,50,70,95,120,150,185,240mm² | 545*240*130mm | (Bolt type) |
| QZD-300A | 16~300mm² | 10 ton | 16mm | 5.0kg | 16,25,35,50,70,95,120,150,185,240,300mm² | 690*250*120mm | (Open type) |
| QZD-400A | 16~400mm² | 10 ton | 16mm | 6.5kg | 16,25,35,50,70,95,120,150,185,240,300,400mm² | 690*250*120mm | (Open type) |

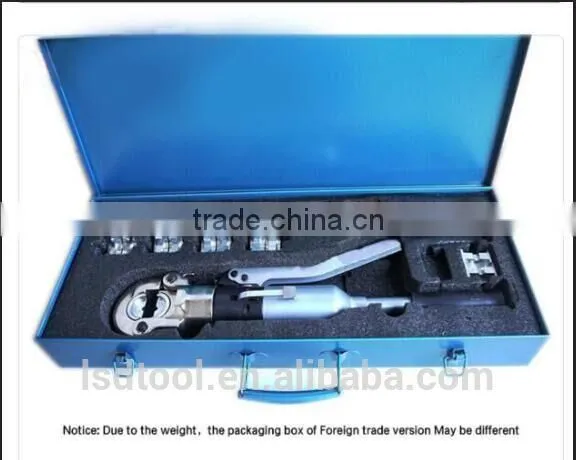

Tool Picture: for QZD-300A hydraulic plier
1.Trade Items Of Products
| Payment | L/C,T/T,Western Union |
| Port | Shanghai or Ningbo |
| MOQ | 100PCS |
| Supply Ability | 5000pieces/Month |
| OEM | Accept |
| Delivery | A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |
2.Packaging Of Products
A. Common Packing: Certain Pcs + Blister card + Export Carton
B. Customized Packing: OEM Label,Blister Card,Inner Box, etc. Experience production for 10years good qutails pliers hand crimping tools
