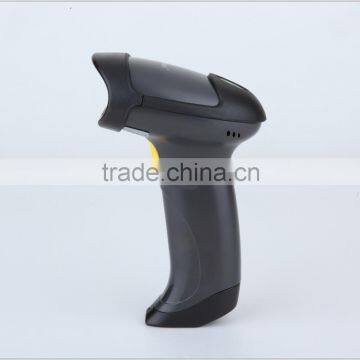

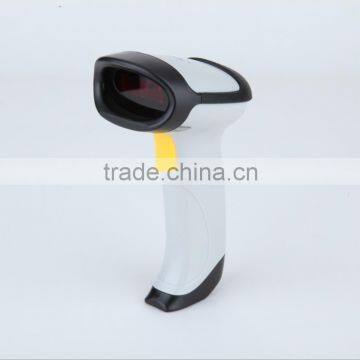

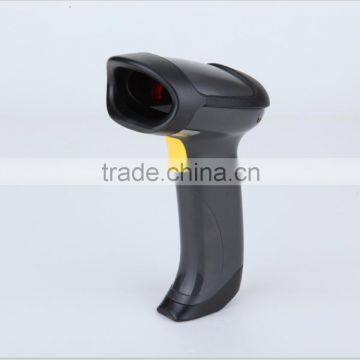

Help CenterSC-2018 1D 32Bits Handheld Barcode Scanner Hand Scanner 3D
Related Products
-
SC-2018 Qualified 1D Handheld Barcode Scanner Pharmacode ScannerNegotiableMOQ: 100 Pieces -
SC-2018 Qualified 1D 32Bits Barcode Scanner Legal Size ScannerNegotiableMOQ: 100 Pieces
-
SC-2018 1D 32Bits Auto-sense Handheld Cheapest Barcode ReaderNegotiableMOQ: 100 Pieces
-
SC-2018 1D 32Bits Auto-scan Laser Barcode ReaderNegotiableMOQ: 100 Pieces
-
1D 32Bits Auto-scan Handheld Cheapest USB Barcode ReaderNegotiableMOQ: 100 Pieces
General
SC-2018 is one of our handheld barcode readers with manual and auto-sensor mode for your choice, its high cost-effective performance makes it ideal for supermarket, retail store, logistic and pharmacy systems.
Features
1. Sharp design with comfortable feeling in hand
2. High decoding ability and high performance
3. High reading ability with auto-sensor mode
4. Support universal keyboard language
5. OEM project is welcomed.
Technical Specifications
CPU |
32Bits |
Voltage: |
DC 3.5-5.5V |
Current: |
50mA(working);25mA(standby);100mA(peak) |
Interfaces |
USB-HID,USB-UART,HID-POS,RS232,PS/2 |
Dimension: |
170mmL x 96mmW x 70mmH |
Weight: |
175g |
Light Source: |
650nm±10% VLD |
Depth of Field: |
0-100cm |
Revolve Angle: |
±70° Left-right, ±70° Up-down |
Print Contrast: |
>=30% |
Resolution: |
>=4mil |
Scan Rate: |
200 scans per second |
Bit Error Rate: |
1/8 million |
ESD Protect: |
15KV |
Dustproof and waterproof: |
IP54 |
Operating Temperature: |
-10℃ ~ 50℃ |
Storage Temperature: |
-20℃ ~ 60℃ |
Humidity: |
5% ~ 95% RH (non-condensing) |
Decode type: |
EAN/JAN-8,13 UPC-A;UPC-E;CODE-128;CODE-93; |
|
RSS-Standard, Limited, Expanded;CODE-39;Inter-Leaved 2/5; |
|
Standard 2/5;Matrix 2/5;Industrial 2/5;China-Post;MSI; |
|
MSI-PLESSEY;CODE-BAR;CODE-11 |
Accessories: Scanner, Manual, Cable, Neutral Packing Box
Individual Package: 1pc/box
Packed Size: 19*10.5*8cm
Packed Weight: 0.3kg
Outer Carton: 50pcs/carton
Packed Size: 43cmx40cmx56cm
Packed Weight: 16kg
SMT Department
Mold Department
Workshop
1.Cost Control - Good control of cost, would be able to provide you most competitive price.
2.Quality Control - Products passed CE,FCC,RoHs certifications.
3.Customer Service -We will reply your email or question within 24 hours.
4.Fast Delivery Time - 7 to 20 days upon order requirement.
1. OEM project is possible or not?
Yes, OEM project is welcomed.
2. How about the minimum order quantity?
Normally minimum order quantity is 100pcs/item.
3. Is that possible to silk customers' logo on products?
Yes, it is possible, and we will require the quantity is more than 200pcs.
4. How long will be the Warranty?
Normally we provide our products with 1 year warranty, it could be longer as well. However, price will be different when warranty period is longer.
5. Would you provide the RMA to custoemrs?
Yes, we will provide 1% free RMA to our customers.
