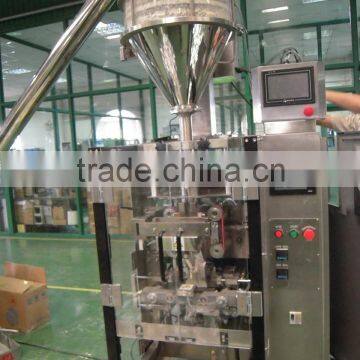

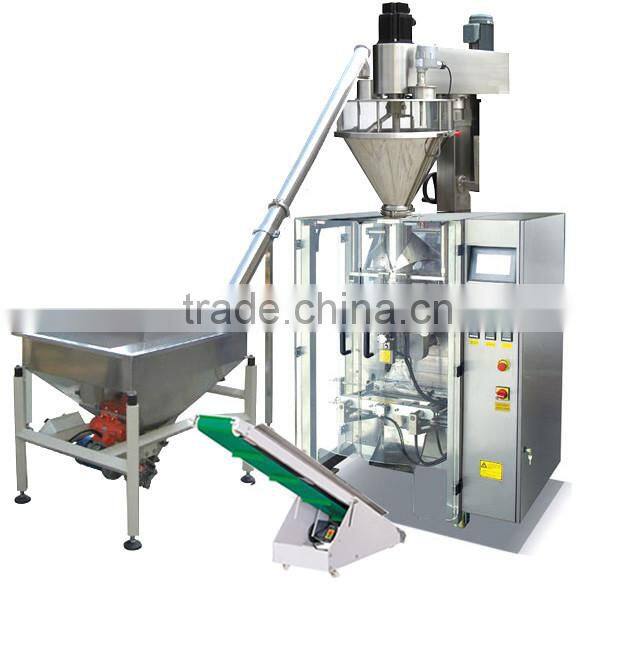

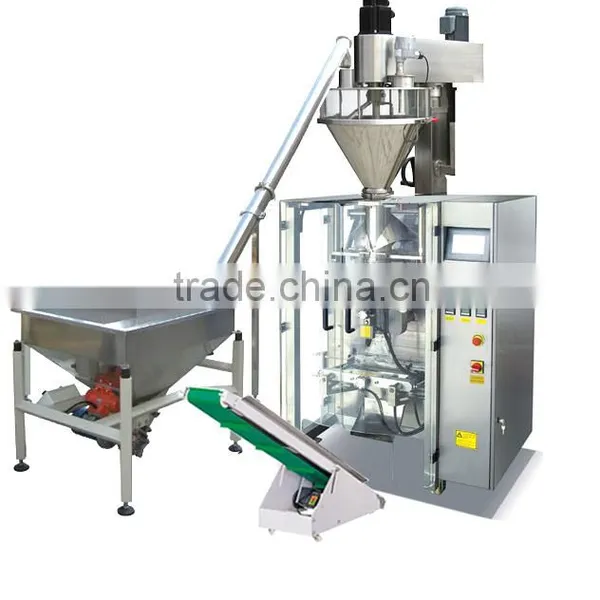

Automatic VFFS Packaging machine with auger filler for powder product
l Features
* Film drawing down system controlled by servo motor.
* Automatic film rectifying deviation function;
* Various alarm system to reduce waste;
* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;
* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.
l Technical parameter
Items |
Content |
Capacity |
50 bag/min |
Bag size |
(L)80-350mm (W)100-250mm |
Bag type |
Pillow-type bag, standing-bevel bag, punch bag |
Filling range |
150-2000ML |
Max film width |
Max 520mm |
Film thickness |
0.04-0.09mm |
Air consumption |
0.8Mps 0.4m3/min |
Main power/voltage |
2.5KW/ 220V 50Hz |
Dimension |
L1500*W1140*H1540mm |
Weight |
680kg |

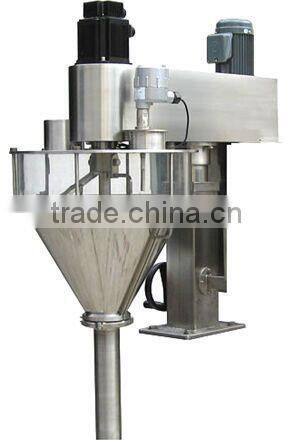

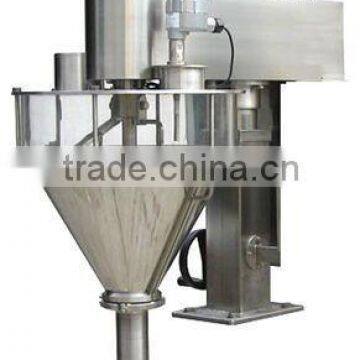

2. Auger Filler
Descriptive abstract:
This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Main features:
The hopper could be washed easily without tools.
Servo motor drive screw.
Stainless steel structure.
Include handwheel of adjustable height.
Replacing the auger parts,it is suitable for material from super thin powder to gralule.
Model |
RY-D2 |
Hopper |
Split hopper 50L |
Filling Weight |
10 ~ 2000g |
Filling Accuracy |
<±1% |
Filling Rate |
40 ~ 120 time/min |
Power Supply |
3P / 208V-415V 50/60Hz |
Total Power |
1.9kw |
Total Weight |
220kg |
Overall Dimensions |
1060×650×1100mm |

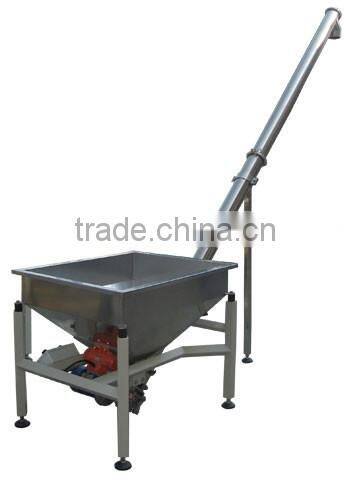

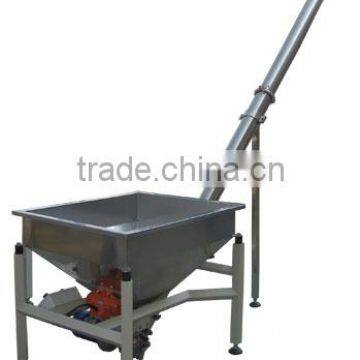

3. Spiral conveyor
Descriptive abstract:
The Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. Also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.
Main features:
Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.
Hopper is adjustable and vibrational which make material to be flowing easily. It is good to material.
Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
Characteristic dustproof, bearing won't be polluted by the dust and powder.
To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.
Model |
GS-2S5 |
|
Charging Capacity |
5 cbm/hr. |
|
Powder Supply |
1.5KW |
|
Diameter of pipe |
φ141mm |
|
Hopper Volume |
200L |
|
Power Supply |
3P 208-415V 50/60Hz |
|
Charging angle |
General 45 degree,special inquirement 30degree,60degree |
|
Charging Height |
1-5m |
|
Total Weight |
180kg |
|
Overall Dimensions of Hopper |
1023×823×870mm |
|

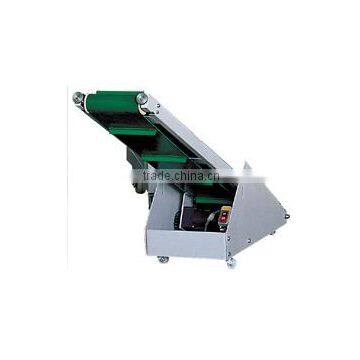

4. RY-A3 Finished products conveyor
l Features
The machine can send the packed finished bag to after-package detecting device or packing platform.
l Specification
Lifting height 0.8-1.5mm
Feeding speed 30mminute
Dimension 2110×340×500mm
Voltage 220V/45W
World Class Service and Support
The quick, timely response to your service within 12 hours needs is our service department mission. Our in-depth staff includes qualified field service and system engineers-ready to resolve your problem quickly and efficiently. We make every attempt to work around your operational schedule; being flexible to get the work accomplished in the limited “downtime” that is available.
OEM services are available with us, our professional designer would make your private idea into being.
We will protect of your sales area, ideas of design and all your private information.
Delivery by air or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!
Strong Plywood Case special designed for export packing to avoid any broken during the shipping.
Shipping: By sea or by air.
1. How to solve the problems during using the equipments?
We have special after-sales team ready to solve the problems for the customers at the first time.
Customers can descript the problems by email to us or online chat, like Skype, Whats app. Then we will supply the solution soon. To make the work more effective, please also supply the problem picture or take a short video for our reference. This is the fast way to solve the problems. We also have distributors and also we can send our experienced engineers overseas if needed.
2. Warranty period and spare parts supply?
One year and lifetime maintenance!
During the first year, if any parts broken not occurred by human, we will supply the new replacement parts for free. After first year, we still supply the spare parts all of the time for the customers.
Our spare parts go through rigid quality control inspections before being released to a customer. After a machine is up and running, ROYEE is available for replacement parts service. Most parts are stocked in-house and if a part is needed from an outside vendor, ROYEE will do it’s best to receive that part in a timely manner.
3. How to install new machines.
Normally, our equipments don’t need the engineers to visit customer’s factory to install. We will supply detailed operation manual packed together with the goods. If needed, we can also supply installation video.
Also we can arrange our engineers to customer’s factory to install it. In this case, the customer should bear the round-tickets and Accommodation fees and daily labor costs.
4. Do your products have CE Certificate?
Yes, all of our products have CE Certificates.
5. What terms of payment you usually use?
35% advance payment by T/T; 65% against B/L by T/T after inspection the goods. Western Union, L/C at sight
6. What is your lead time for your goods?
Normally 7-20 days after confirmed order.
