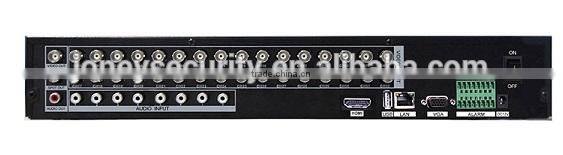

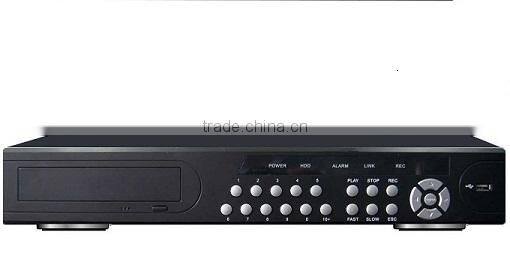

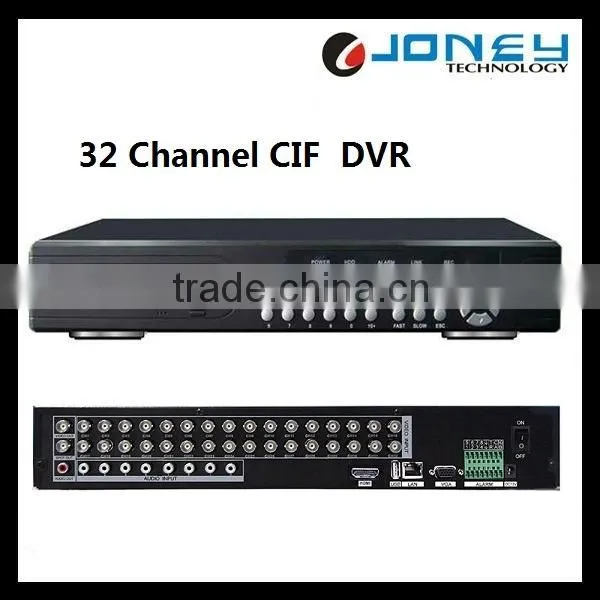

32 Channel DVR Surveillance System H.264 CIF 32ch DVR

Specifications

--32ch performance
--32ch CIF
--1CH BNC Output ,1CH VGA Output,1*HDMI(1080P)
--HDD Max 3TB,SATA Interface HDD*2,Up to 6TB

Specification:

Model                        DVR-7132F
system
Main Processor		Embedded processor
Operating System		Embedded LINUX
Video
Input		32channel, BNC
Standard		NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input		8channel, RCA
Output		1 channel, RCA
Two-way Talk		Reuse audio input/output channel 1
Display
Interface		1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75)
Resolution		1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split		1/32
Privacy Masking		32rectangular zones (each camera)
OSD		Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression		H.264 / G.711
Resolution		D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
	Extra Stream	CIF(1~25/30fps)
Bit Rate		48~4096Kb/s
Record Mode		Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval		1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection& Alarm
Trigger Events		Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection		Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input		4channel
Relay Output		1 channel
Playback & Backup
Sync Playback		1/32
Search Mode		Time/Date, MD & Exact search (accurate to second)
Playback Functions		Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode		USB Device / Network
Network
Ethernet		RJ-45 port (10/100M)
Network Functions		HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Storage
Internal HDD		HDD Max 3TB,SATA Interface HDD*2,Up to 6TB
Auxiliary Interface
USB Interface		2 ports (1 Rear), USB2.0
RS485		PTZ control
General
Power Supply		DC12V/2A
Power Consumption		10W(without HDD)
Working Environment		-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H)		430xW350xH65(1.5U)
Weight		5KG  (without HDD)
