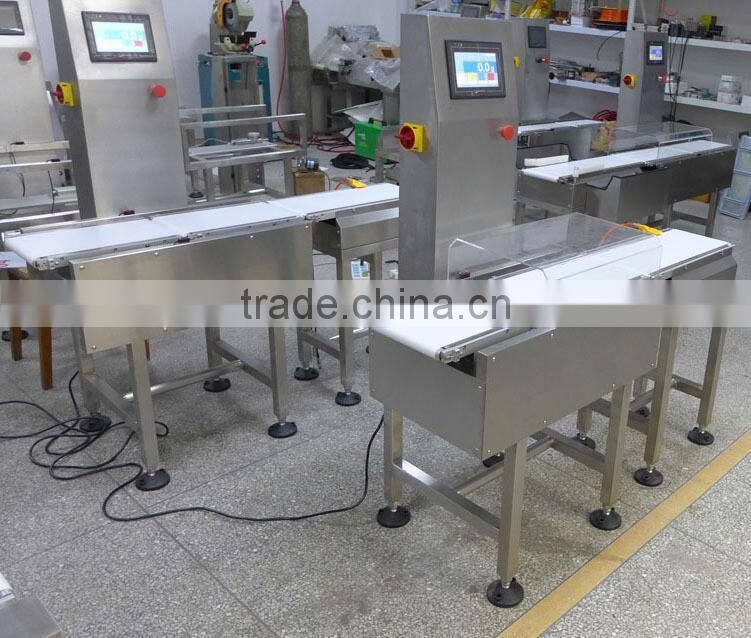

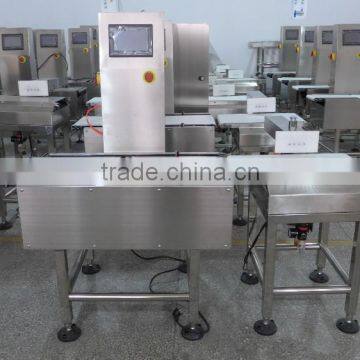

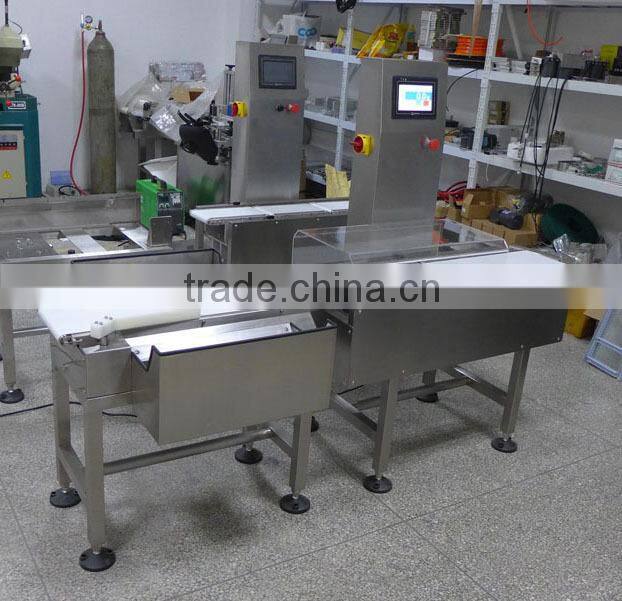

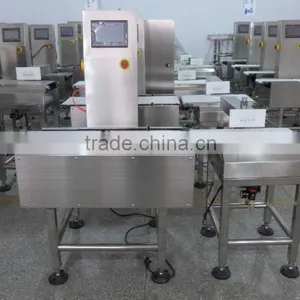

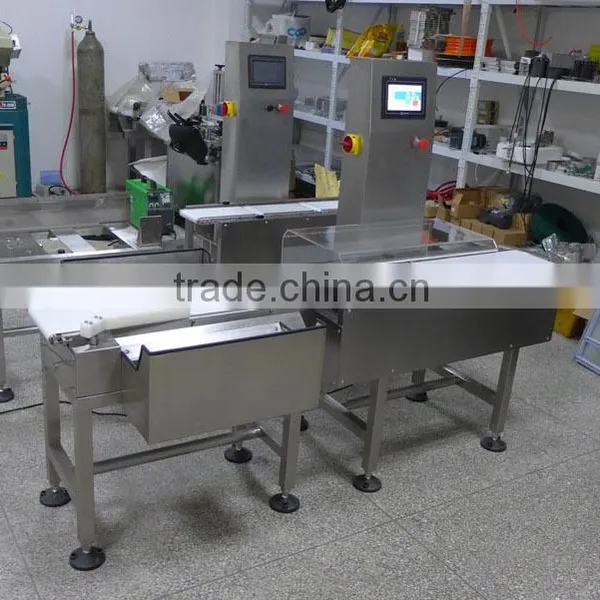

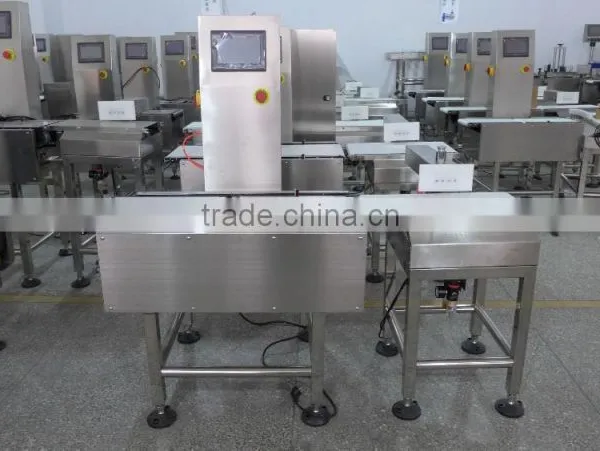

Check Weigher CW-N220
Features:
*Strong stainless steel structure; Water proof design.
*High accurate load cell; Based on advanced DSP technology.
*Automatic weighing compensation and zero tracking.
*100 kinds of products preset; easy to edit and recall.
*2000 pieces sorting products records with RS232 printer interface.
*USB interface, USB disk record sorting data.
*Quickly different products shift and speed recall.
*LCD Touch screen; friendly operation interface.
*automatical rejection system with alarm light, such as air nozzle rejector, pusher rejector, arm flap rejector.
* products traveling direction: from left to right, can also from right to left.
Specifications:
Measurement: Strain Gauge
Reception system: air nozzle rejector, pusher rejector or arm flap rejector
Operation: Touch Screen or HMI
Alarm: Buzzer & Lamp
Belt speed: (31-80)m/min
Power Supply: AC110V/220V 50-60Hz
Rated Output: Appr.150W
Dimension:1516mm(L)*600mm(W)*1350±50mm(H)
Weight: Appr.75kg+45kg
Main Data:
Model |
CW-N220 |
|
Weighing Range |
5g~1500g |
|
Maximum Accuracy |
±0.5g |
|
Minimum Scale |
0.1g |
|
Maximum Speed |
150pps |
|
Product Size |
Length |
<=350mm |
Width |
<=220mm |
|
Height |
>=3mm |
|
We also have other Check Weigher models below.
Model |
CW-N150 |
CW-N220 |
CW-N300 |
CW-N450 |
CW-N580 |
Weighing Range |
5g-500g |
5g-1500g |
5g-3kg/5kg |
50g-20/30kg |
50g-50kg |
Accuracy |
±0.2g |
±0.5g |
±0.5g |
±5g |
±20g |
Min scale |
0.1g |
0.1g |
0.1g |
1g |
5g |
Max.Speed |
150pc/min |
100pc/min |
80pc/min |
40pc/min |
30pc/min |
Belt width |
150mm |
220mm |
300mm |
450mm |
580mm |
Productsize |
≤200mm |
≤300mm |
≤300mm |
≤550mm |
≤800mm |
≤150mm |
≤220mm |
≤300mm |
≤450mm |
≤580mm |
|
≥3mm |
≥3mm |
≥3mm |
≥3mm |
≥3mm |
We can also customized the Check Weigher according to customer's requirements.
World Class Service and Support!
The quick, timely response to your service needs within 12 hours is our service department mission. Our in-depth staffs include qualified field service and system engineers-ready to resolve your problem quickly and efficiently. We make every attempt to work around your operational schedule; being flexible to get the work accomplished in the limited “downtime” that is available.
OEM services are available with us; our professional designer would make your private idea into being.
We will protect all your ideas of design and all of your private information.
We ship the products to you through air or sea deliver.
With years of manufacturing and promotional experiences in global market, we will help to bring you profit and great success!
Strong Plywood Case special designed for export packing to avoid any broken during the shipping.
Shipping: By sea or by air.
1. How to solve the problems during using the equipments?
We have special after-sales team ready to solve the problems for the customers at the first time.
Customers can descript the problems by email to us or online chat, like Skype, WhatsApp. Then we will supply the solution soon. To make the work more effective, please also supply the problem picture or take a short video for our reference. This is the fast way to solve the problems. We also have distributors and also we can send our experienced engineers overseas if needed.
2. Warranty period and spare parts supply?
One year and lifetime maintenance!
During the first year, if any parts broken not occurred by human, we will supply the new replacement parts for free. After the first year, we still supply the spare parts to our clients.
Our spare parts go through rigid quality control inspections before being released to a client. After a machine is up and running, ROYEE is available for replacement parts service. Most parts are stocked in-house and if a part is needed from an outside vendor, ROYEE will do it’s best to receive that part in a timely manner.
3. How to install new machines.
Normally, our equipments don’t need the engineers to visit customer’s factory to install. We will supply detailed operation manual packed together with the goods. If needed, we can also supply installation video.
Also we can arrange our engineers to customer’s factory to install it. In this case, the customer should bear the round-tickets and Accommodation fees and daily labor costs.
4. Do your products have CE Certificate?
Yes, all of our products have CE Certificates.
5. What terms of payment you usually use?
35% advance payment by T/T; 65% against B/L by T/T after inspection the goods. Western Union, L/C at sight
6. What is your lead time for your goods?
Normally 7-20 days after confirmed order.
