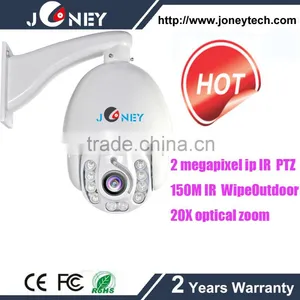

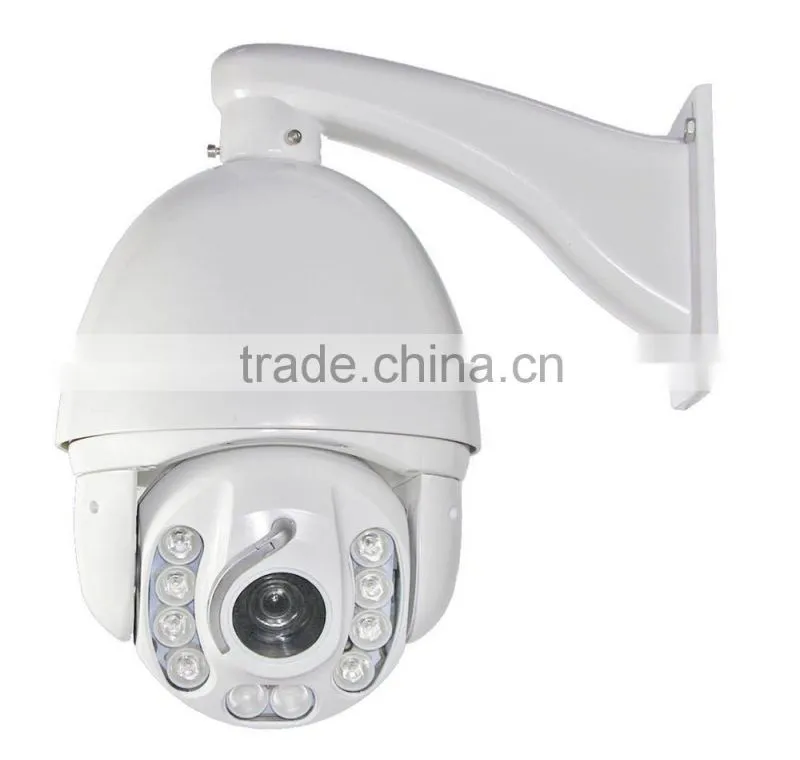

2015 Wipers Outdoor 20X 2MP HD IP PTZ Camera , IP PTZ Camera Controller

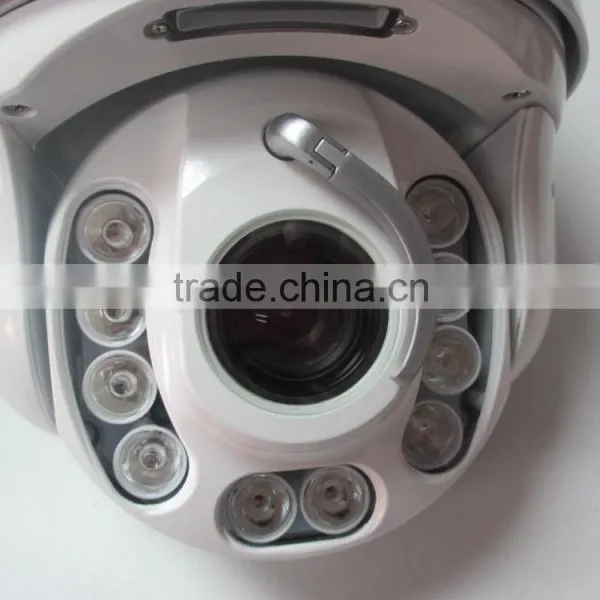

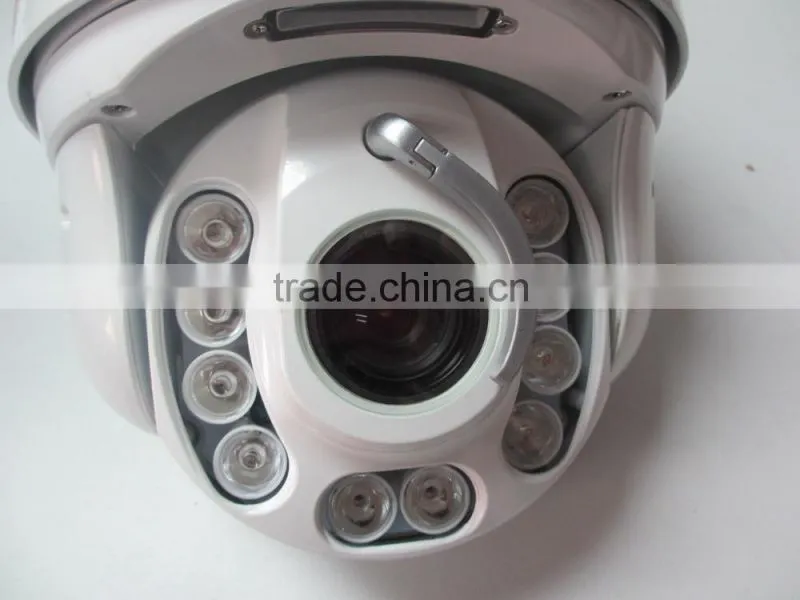

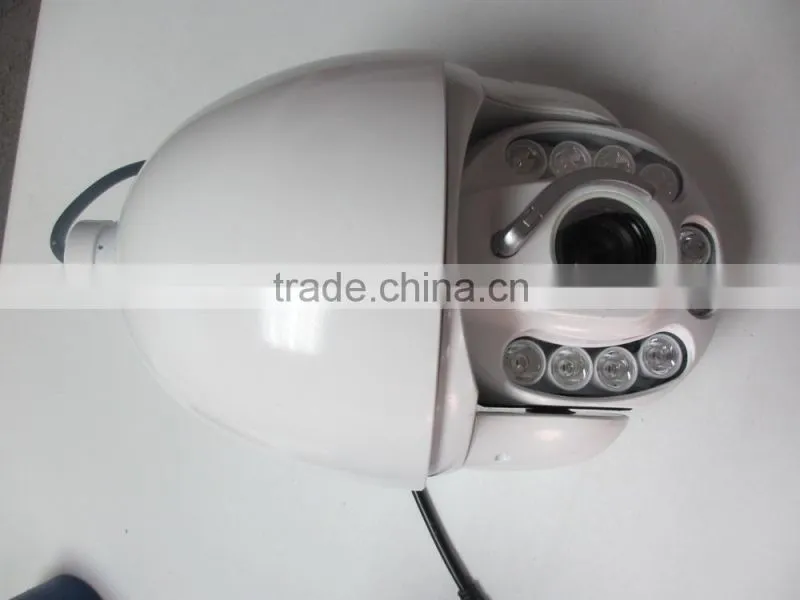

2MP HD IP PTZ Camera Main Featues :
1)Image sensor:1/3" Progressive Scan CMOS
2)1920*1080 (1080P) ;Focus F=4.70mm~94.0mm 20X optical zoom
3)12 array led IR distance 120 meter
4)H.264 High Profile/M-JPEG Coding,rate 96k~6M bps, max 30fps 1080P, Frame rate adjustable, supports three-stream
5)Level speed 200 degrees / sec, vertical speed 180 degrees / sec, 256 preset positions, support cruise, two limit the level of support scanning
6)Can support Onvif communication protocol and GB/T28181 network platform provides configuration client development kit SDK
7)Weight:6.1KG ,dimension:31*30*48(cm)
8)audio and SD card function optional(USD25+USD25)
9)Wall mount or Ceiling mount bracket.
2MP HD IP PTZ Camera Specification :
| Model | IPC-PTZ1001-20X | |||
| Product name 2 Megapixels Network high-speed dome camera | ||||
| image sensor | 1/3" Progressive Scan CMOS | |||
| Coding chip | TI DSP | |||
| maximum resolution | 1920*1080(1080P) | |||
| Nocturnal distance | Nocturnal distance 120M | |||
| Video coding | H.264 High Profile/M-JPEG 96k~6M BPS coding, bit rate, frame rate adjustable, support three bit stream | |||
| Network protocol:TCP/IP,HTTP,HTTPS,NTP,ICMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,PPPoE,P2P,802.1X,SCTP,SIP | ||||
| Video transmission standards |
Onvif2.1 | |||
| main chip | ARM main chip | |||
| audio interface | (optional) | |||
| A,B limit scanning | Support | |||
| p2p | P2P mobile phone monitoring | |||
| Auto flip function | Support | |||
| Wiper function | Support | |||
| Pattern Scanning | ||||
| network interface | 1 RJ45 10M / 100M adaptive Ethernet port | |||
| Cruise function | Support Three groups of Cruise | |||
| Video format | H.264/AVI | |||
| motion detection | Support motion detection video | |||
| Horizontal Rotation 200 ° /s (1-64 speed) | ||||
| Waterproof grade | IP66 | |||
| vertical Rotation | 120 °/s (1-64 speed) | |||
| Preset point | 255 | |||
| Support platform Access to support Onvif communication protocol, provide the client configuration, SDK development kit | ||||
| lightning protection 2KV lightning protection | ||||
|
Size |
Standard 7 inch | |||
| PTZ Power consumption | 50W | |||
| Power off memory function | Support | |||
| Lens configuration | Focal length of F=4.70mm ~ 94.00mm 20X optical | |||
| Packing size Weight |
31*31*48cm(LWH) 6.5KG |
|||
| Power supply DC12V 5A | ||||
| Working temperature | Working temperature-10℃~+60℃, | |||
| Approvals | CE FCC RoHS | |||
Video Link to Show The Quality
/watch?v=fBABdkUaZX4

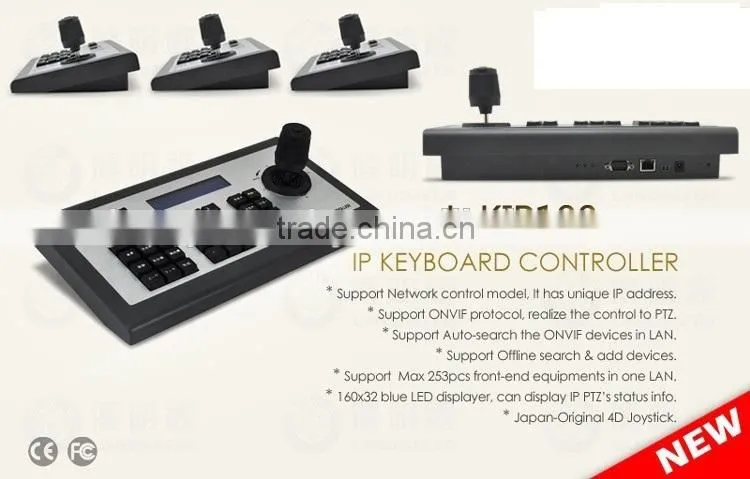

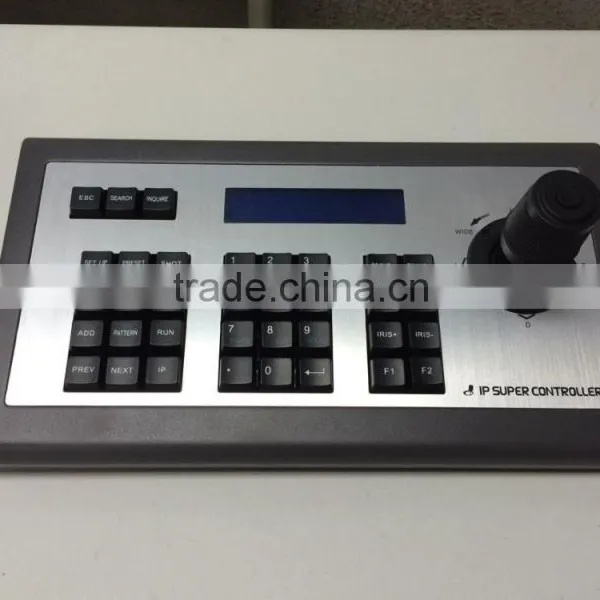

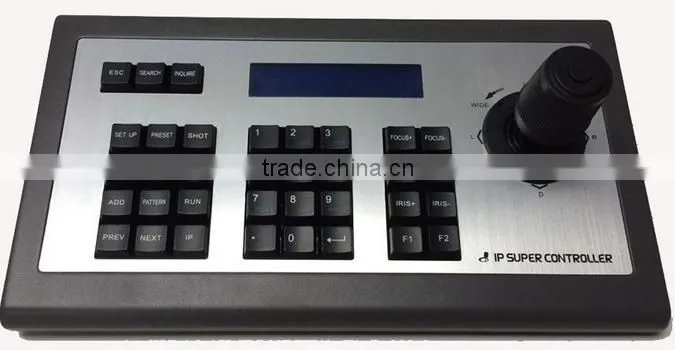

2MP HD IP PTZ Camera Controller
Features :
- Support Network control model, It has unique IP address.
- Support ONVIF protocol, realize the control to PTZ.
- Support Auto-search the ONVIF devices in LAN
- Support Offline search & add devices.
- Support Max 253pcs front-end equipments in one LAN.
- Support many famous brand IP PTZ Coding, such as Hikvsion, Dahua, TVT, Hangban, XM, Jovision, Topsee, Aipstar, WWA....etc
- Support control IP PTZ to call and set Presets, zoom, focus, Iris, Wiper and Tour functions....etc.
- Support adding the front-end equipments’s parameter in IE Browser.
- Japan-Original 4D Joystick
- 160x32 blue LED displayer, can display IP PTZ’s status info

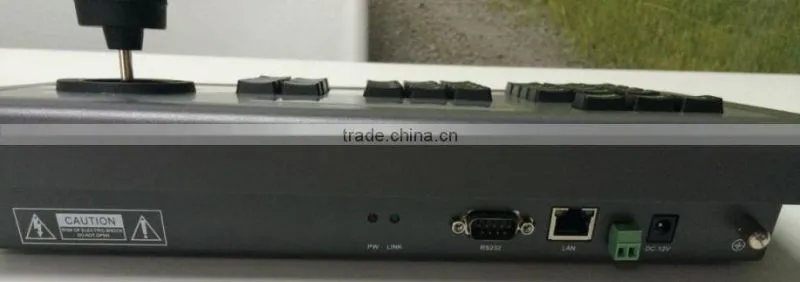

| Model No. | IE-C100 |
| Main Chip | GM8126 |
| Power supply | DC12V-1A/Postive outside negative inside |
| RS485 | 3.81 pitch terminal,TA,TB |
| RS232 | Db9 male port |
| Enthernet | RJ45,IEEE802.11b/g/n |
| Support protocol | Onvif 2.4 |
| browser | IE,Firefox,Chrome,Safari and so on |
| weight | 3kg |
| certificate | CE,FCC,Rohs |
Welcome to Joney
Website:
Alibaba:https://img13.fr-trading.com
If you have any question ,pls contact us without hesitate.
We'll always at your service. Wish you have a good day!
