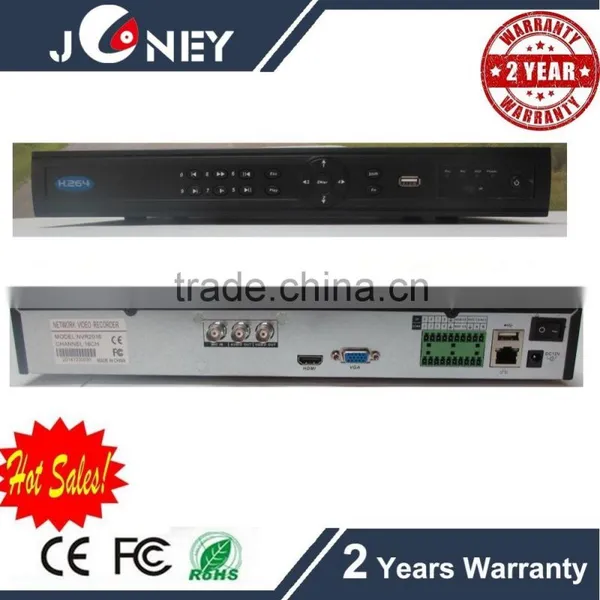

2 HDD 1U 16 channel NVR support 16ch 720P/960P/1080P realtime recording & playback
Main Features :
16 channel NVR
Support 16ch 720P/960P/1080P realtime recording & playback
16ch audio & alarm
Support 2 HDD
Support 1ch face recognition
Main specification :
Model |
NVR-2016 |
System | |
Chips |
21Hi35
|
Operation System |
Embedded LINUX |
Pentaplex function |
Live monitoring, recording, playback, backup & remote access |
Control Mode |
Front panel, USB mouse, IR remote control, Network |
Video | |
IP Camera Input |
16ch.D1@30fps 16ch.720P@30fps 8ch.1080P@30fp |
Support Protocol |
ONVIF Core Spec 2.4 |
Standard |
PAL (625line, 50f/s) NTSC (525line, 60f/s) |
Output |
1 CVBS, BNC (1.0Vp-p,75 ohms) 1 HDMI, 1.3a,support 1920×1080 Resolution 1 VGA, 1920×1080,1440×900,1280×1024,1024×768,800×600 Resolution |
Audio | |
Input |
1 ch. BNC |
Output |
1 BNC (3.3Vp-p,4.7k ohms) |
Bidirectional Talk |
1 ch. Standalone |
Display | |
Resolution |
5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Frame |
1~30fps |
Tour Display |
Support |
Working status display |
LCD, blue backlight(working temperature, recording status, error code etc.) |
Privacy Masking |
Four zones for privacy masking for each channel |
Recording | |
Video Compression |
H.264/MPEG 4 AVC, up to Main Profile 5.0 |
Audio Compression |
G.711A |
Image Encoding |
Adjustable encoding quality, variable code stream/fixed code stream |
Dual Stream |
Support |
Recording Mode |
Manual, auto, motion detection, stop |
Time bar |
Support |
Video Detection & Alarm | |
Trigger Events |
Recording, PTZ, Tour, Email |
Motion Detection |
396 (22×18) detection zone, variable sensitivity levels |
Capture |
JPEG capture |
Alarm Input |
8ch. |
Alarm Output |
3ch.NO,NC |
Playback & Backup | |
Max Playback |
1/2/4/8 ch. |
Backup Mode |
USB, HDD, Network Backup |
Network | |
Ethernet |
1 RJ-45 port (10M/100M) |
Network protocol |
TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP,FTP, UPnP |
Remote Operation |
Monitoring, PTZ control, playback, system setting, file download, log information |
Smart Phone |
iPhone, iPad, Android, Blackberry, Windows Mobile |
General Parameters | |
Hard Disk |
2 SATA ports |
HDD Management |
Hard disk hibernation technology, HDD faulty alarm & raid |
USB Interface |
2 USB 2.0 ports |
RS485 |
Standard 485, half duplex, PTZ control |
POE function |
N/A |
Environment | |
Power Supply |
DC12V/4A |
Power Consumption |
20W (without HDD) |
Working Environment |
'-10℃~+60℃ / 10%-90%RH |
Dimension(W*D*H) |
1U, 360x250x48 (mm) |
Weight |
2Kg (without HDD) |
Images:
