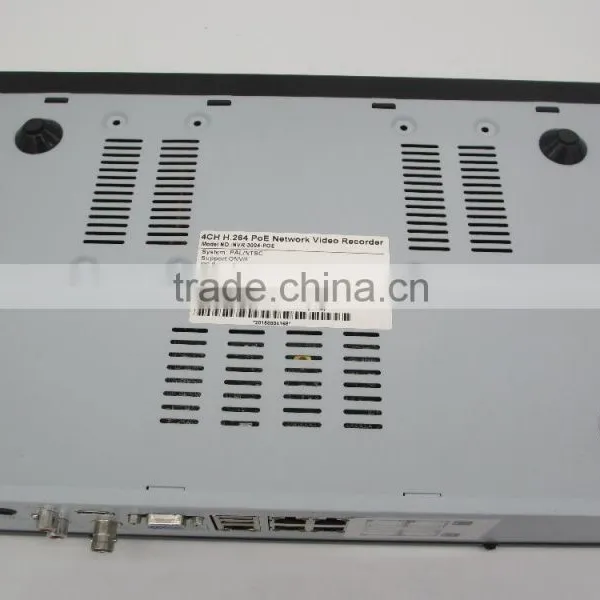

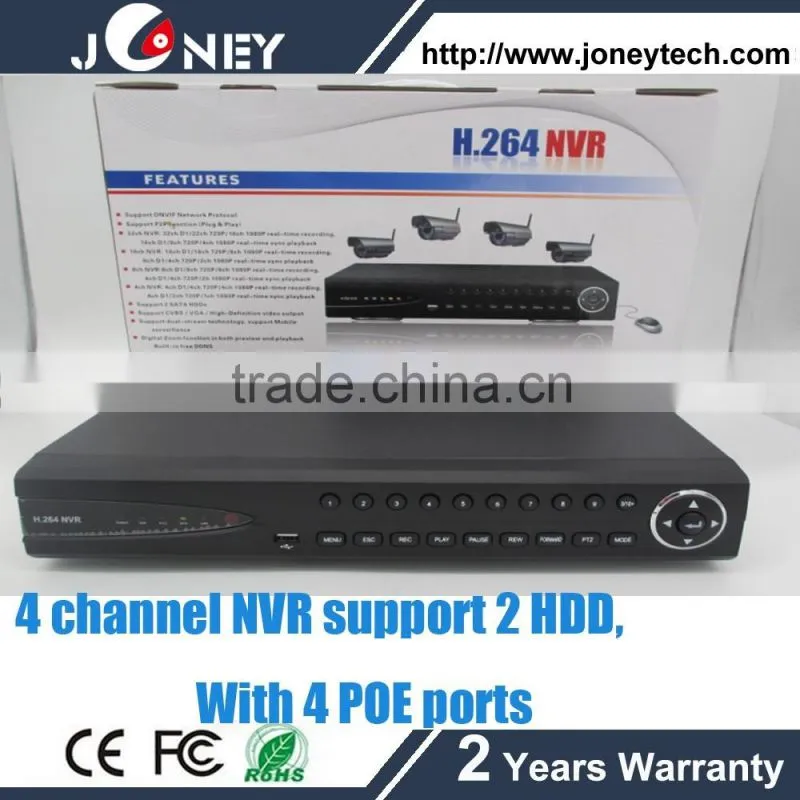

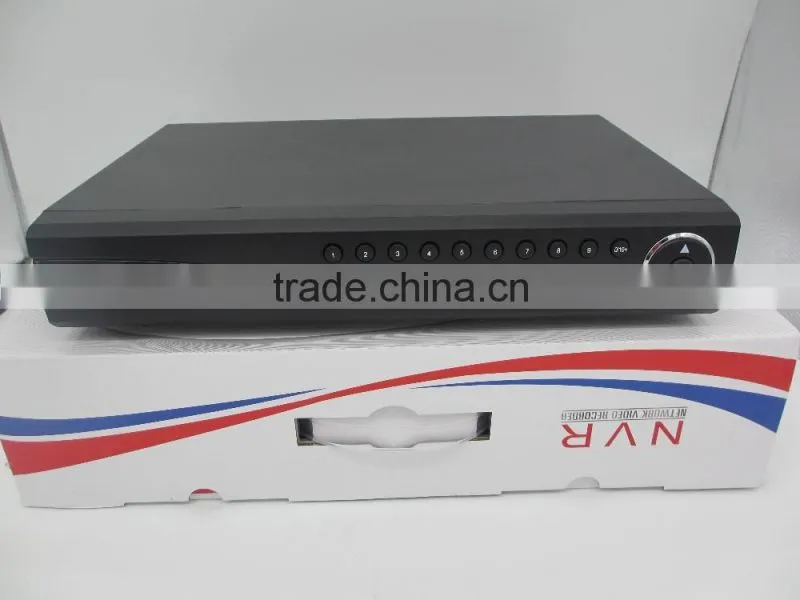

720P/960P/1080P realtime recording & playback ONVIF NVR 1080P 4channel 1080p recording ONVIF POE 1ch 1080P playback
Features:
1)Up to 4 channel with 1080p real time live view
2)H.264/MJPEG dual codec decoding
3)Up to 5Mp resolution
4)Max 120fps@1080p, 240fps@1080p, 480fps@720p, 960ps@D1 preview & recording
5)HDMI / VGA simultaneous video output
6)4 channel synchronous real time playback, GRID interface
7)3D intelligent positioning with Dahua PTZ camera
8)Support 2 SATA HDDs up to 8TB, 2 USB2.0
9)Multiple network monitoring: Web viewer, CMS & DMSS
10)ONVIF Version 2.2 conformance
11)Support 4POE POE NVR
Specifications
Operation System |
Embedded LINUX |
|||
Pentaplex function |
Live monitoring, recording, playback, backup & remote access |
|||
Control Mode |
Front panel, USB mouse, IR remote control, Network |
|||
Video | ||||
IP Camera Input |
4ch.D1@30fps 4ch.720P@30fps 4ch.1080P@30fps
|
|||
Support Protocol |
ONVIF Core Spec 2.4 |
|||
Standard |
PAL (625line, 50f/s) NTSC (525line, 60f/s) |
|||
Output |
1 CVBS, BNC (1.0Vp-p,75 ohms) 1 HDMI, 1.3a,support 1920×1080 Resolution 1 VGA, 1920×1080,1440×900,1280×1024,1024×768,800×600 Resolution |
|||
Audio | ||||
Input |
1 ch. BNC |
|||
Output |
1 BNC (3.3Vp-p,4.7k ohms) |
|||
Bidirectional Talk |
1 ch. Standalone |
|||
Display | ||||
Resolution |
5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|||
Frame |
1~30fps |
|||
Tour Display |
Support |
|||
Working status display |
LCD, blue backlight(working temperature, recording status, error code etc.) |
|||
Privacy Masking |
Four zones for privacy masking for each channel |
|||
Recording | ||||
Video Compression |
H.264/MPEG 4 AVC, up to Main Profile 5.0 |
|||
Audio Compression |
G.711A |
|||
Image Encoding |
Adjustable encoding quality, variable code stream/fixed code stream |
|||
Dual Stream |
Support |
|||
Recording Mode |
Manual, auto, motion detection, stop |
|||
Time bar |
Support |
|||
Video Detection & Alarm | ||||
Trigger Events |
Recording, PTZ, Tour, Email |
|||
Motion Detection |
396 (22×18) detection zone, variable sensitivity levels |
|||
Capture |
JPEG capture |
|||
Alarm Input |
4ch. |
|||
Alarm Output |
3ch.NO,NC |
|||
Playback & Backup | ||||
Max Playback |
1/2/4 ch. |
|||
Backup Mode |
USB, HDD, Network Backup |
|||
Network | ||||
Ethernet |
1 RJ-45 port (10M/100M) |
1 RJ-45 port (10M/100M) |
1 RJ-45 port (10M/100M) |
1 RJ-45 port (10M/100/1000M) |
Network protocol |
TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP,FTP, UPnP |
|||
Remote Operation |
Monitoring, PTZ control, playback, system setting, file download, log information |
|||
Smart Phone |
iPhone, iPad, Android, Blackberry, Windows Mobile |
|||
General Parameters | ||||
Hard Disk |
2 SATA ports |
|||
HDD Management |
Hard disk hibernation technology, HDD faulty alarm & raid |
|||
USB Interface |
2 USB 2.0 ports |
|||
RS485 |
Standard 485, half duplex, PTZ control |
|||
POE functio |
4ch POE NVR |
|||
Environment | ||||
Power Supply |
DC12V/4A |
|||
Power Consumption |
10W (without HDD) |
20W (without HDD) |
||
Working Environment |
'-10℃~+55℃ / 10%-90%RH |
|||
Dimension(W*D*H) |
1U, 340x230x48 (mm) |
|||
Weight |
1.6Kg (without HDD) |
|||
NVR menu and software photos
IE login
CMS Software Interface
Mobile APP :
APP Name : IMSeye
Cloud Login
www.
