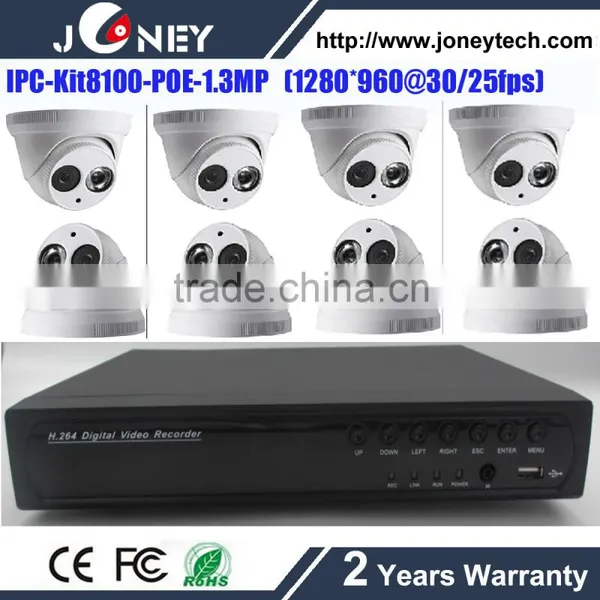

8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH

8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH thumbnail-1
8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH thumbnail-2
8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH thumbnail-3
8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH thumbnail-4
8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH photo-1
8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH photo-2

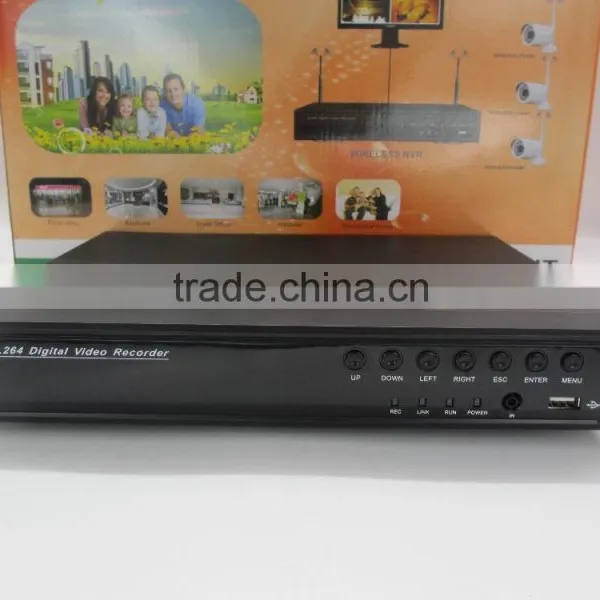

8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH photo-3
8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney
Model Number:
IPC-Kit8100-POE-1.3MP
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Joney
Model Number IPC-Kit8100-POE-1.3MP
Type Other, IP Camera, 8ch dome camera nvr kit
Style Dome Camera
Sensor CMOS
Technology NetWork
Special Features Waterproof / Weatherproof

8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH

 8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH

 8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH8CH POE NVR Kit, Onvif 8 Channel POE NVR Kit, Bullet And Dome Camera Cloud POE NVR 8 CH





POE NVR Kit  Features: c  sistema de camera ip
wifi ip security camera security system hd kit

    IP Camera:   1 Mega pixels x8Pieces



1) Dual stream encoding / H.264 compression mode
2) 1/4" OV CMOS sensor with IR Cut filter , 3.6mm fixed lens
3) Night vision :20m(24pcs leds)
4) 1.0MP(1280*720@30/25fps)



NVR : 4CH POE NVR     sistema de camera ip
1) Support 8CH 720P/2CH 1080P realtime viewing and recording;
2) Support 8CH 720P/1CH 1080P playback;
3) Support 1CH BNC/VGA/HDMI output;
4) Support 1CH audio/alarm output;
5) USB*2;
6) support 2 SATA HDD,max capacity 2X4TB=8TB



ONVIF H.264 720P 8ch NVR ip camera Kit Specification:    ip camera





Model

NVR3108-POE

Video &  audio input

Network video input

8CH

Video & audio output

HDMI output

800x600,1024x768,1280x1024,1440x900,720P,1080P

VGA output

800x600,1024x768,1280x1024,1440x900,720P,1080P

Audio output

1PCS RCA Port( line level , impedance : 1kΩ)

Video & audio code and decode parameters

Record resolution

D1/HD1/CIF/720P/960P/1080P

Playback resolution

720P 100/120FPS  1080P 50/64FPS

Motion detection

Motion Detection  Depend on NVR

Synchronously playback channels

1/4CH

Record management

Record & Snapshot mode

manual recording, regular recording, motion recording, alarm recording, events recording

Playback mode

regular playback,alarm playback,motion detection playback,events playback

Backup mode

regular backup, events backup, manual backup

Hard driver

Mode

2*SATA

HDD capacity

each port support max 4TB HDD

External port

Voice intercom

NO

Internet port

0

USB port

2*USB2.0

Alarm input

NO

Alarm output

NO

Network Management

Network protocol

NTP,SMTP,PPPoE,DDNS,FTP,ARSP,WIFI,3G

Other

Power supply

DC12V(NVR)    DC48V(POE)

Power consumtion(without HDD)

≤26W

Work temperature

-10℃--+55℃

Work humidity

10%--90%

Case

1U

Size(W*L*H(cm))

335*255*50mm

Net weight(without HDD)

1.45kg

Gross weight(without HDD)

2.32kg

Color box size(L*W*H(cm))

39*30*11cm

Packing(pcs/carton)

5

Carton size (L*W*H(cm))

57*40.7*32.6cm

Gross weight(kg)

12.5kg

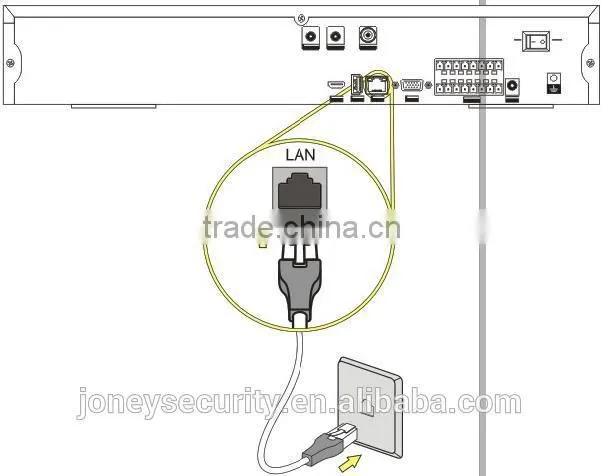

Connecting NVR to network

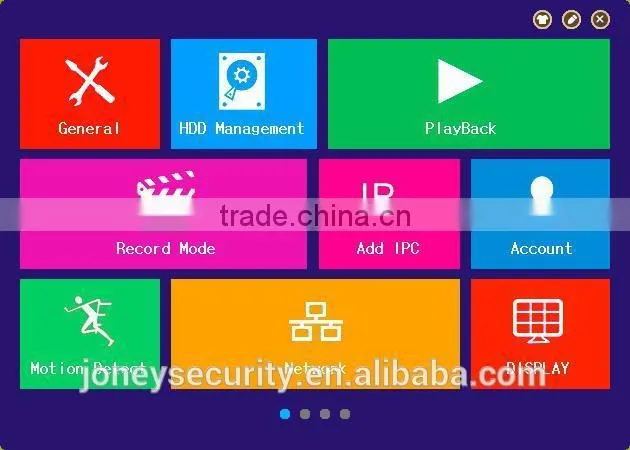

MAIN MENU

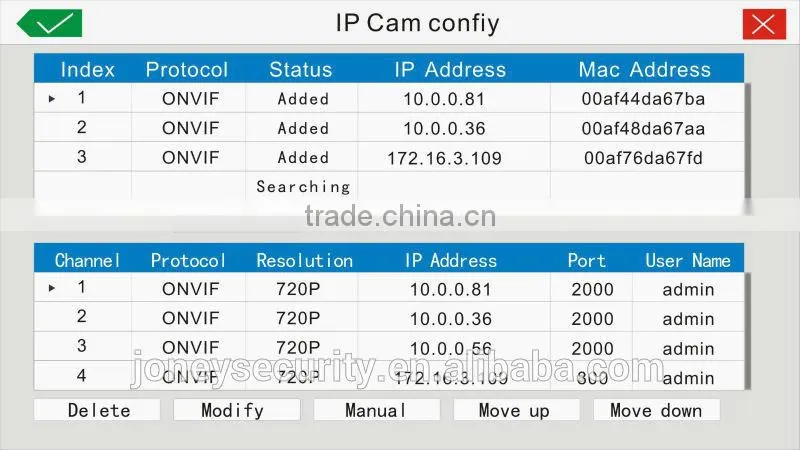

IP CAMERA CONFIG
