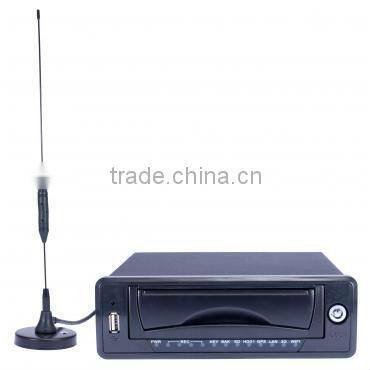

Dahua H.264 Wifi GPS 4 Channel 3G Mobile Dvr

Dahua H.264 Wifi GPS 4 Channel 3G Mobile Dvr thumbnail-1
Dahua H.264 Wifi GPS 4 Channel 3G Mobile Dvr photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
DH-DVR0404ME-U/H
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dahua
Model Number DH-DVR0404ME-U/H

Specifications

1.Up to 4 cameras with SXGA realtime live view
2.H.264 dual stream
3.VGA/TV simultaneous video output
4. realtime playback

4 CHANNEL MOBILE DVR

> Up to 4 cameras with SXGA realtime live view

> H.264 dual-stream video compression

 >DVR0404ME-U: 1ch@D1 + 3ch@CIF (1~25/30fps) realtime recording

> DVR0404ME-H: Full channel D1 realtime recording

> VGA/TV simultaneous video output

> Full channel synchronous realtime playback

> Support 1 SATA HDD, 2 USB2.0

 > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

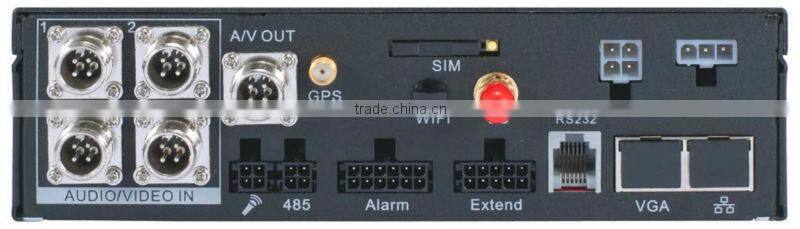

> Aviation connectors adopted

Model DVR0404ME-U DVR0404ME-H
System
Main Processor Embedded microprocessor
Operating System Embedded LINUX
Video
Input 4 channel
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input 4 channel
Output 1 channel
Two-way Talk 1 channel Input, 1 channel Output, BNC
Display
Interface 1VGA, 2 TV
Resolution 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/4
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264 / PCM
Resolution D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF(704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate Main Stream 1ch@D1 + 3ch@CIF (1~25/30fps) Full channel@D1(1~25/30fps)
Sub Stream QCIF(1~25/30fps), CIF(1-6/7fps) CIF/QCIF(1~25/30fps)
Bit Rate 48~4096Kb/s
Image Quality 1~6 level(level 6 is the best, VBR effectively)
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 7 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1/2/4
Search Mode Time/Date, Alarm, Motion Detection & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / eSATA Device / Network
Network
Ethernet RJ-45 port (10/100M)
Wi-Fi Optional
3G Optional
GPS Built-in high accurate GPS module(optional)
Network Functions TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
Remote Operation Monitor, PTZ control, Playback, System setting, File download, Log information
Storage
Internal HDD 1 SATA port
Memory Slot 2 SD cards (Optional)
Auxiliary Interface
USB 2 ports (1 Rear), USB2.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
General
Power Supply +12V / +24V / +60V(+8V~+60V)
Power Consumption <15W(with HDD)
Working Environment 0°C ~+55°C / 10%~95%RH / 86~106kpa
Dimension(W×D×H) 178mm×220mm×50mm
Weight 2.1KG(with HDD)
Vibration-proof 5Hz~300Hz: X / Y / Z each direction 8 hours 5Hz~11Hz: Vibration amplitude 10mm 11Hz~300Hz: 50m/s2









 Our main products :



CCTV :

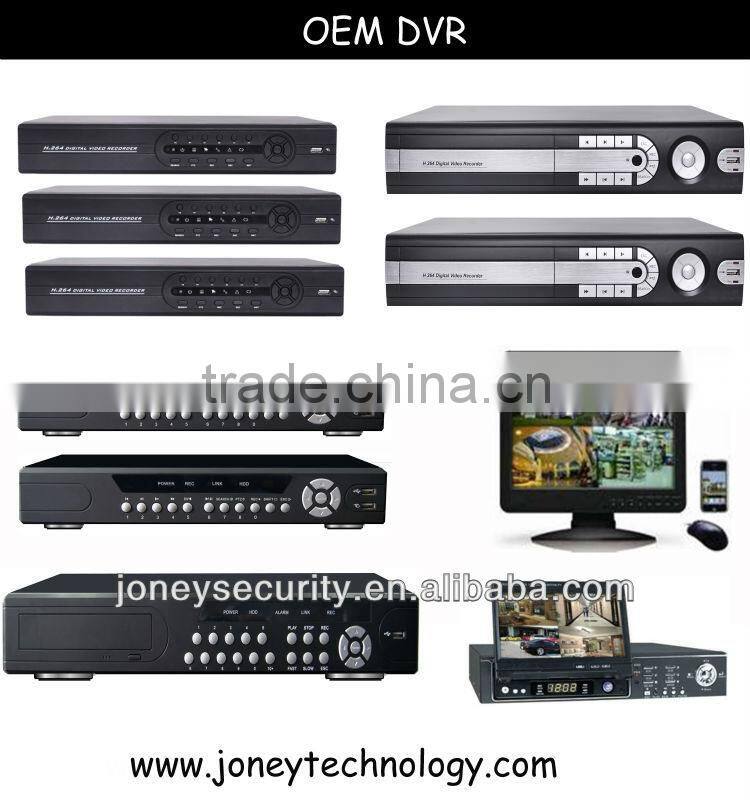

1. Analogue cctv cameras,OEM standalone dvr,compression card ;dvr kits,PTZ cameras,

2. ip cameras(1080p/720p/960p) ,NVR

3. HD-SDI cameras,hd-sdi DVR,hd-sdi converters

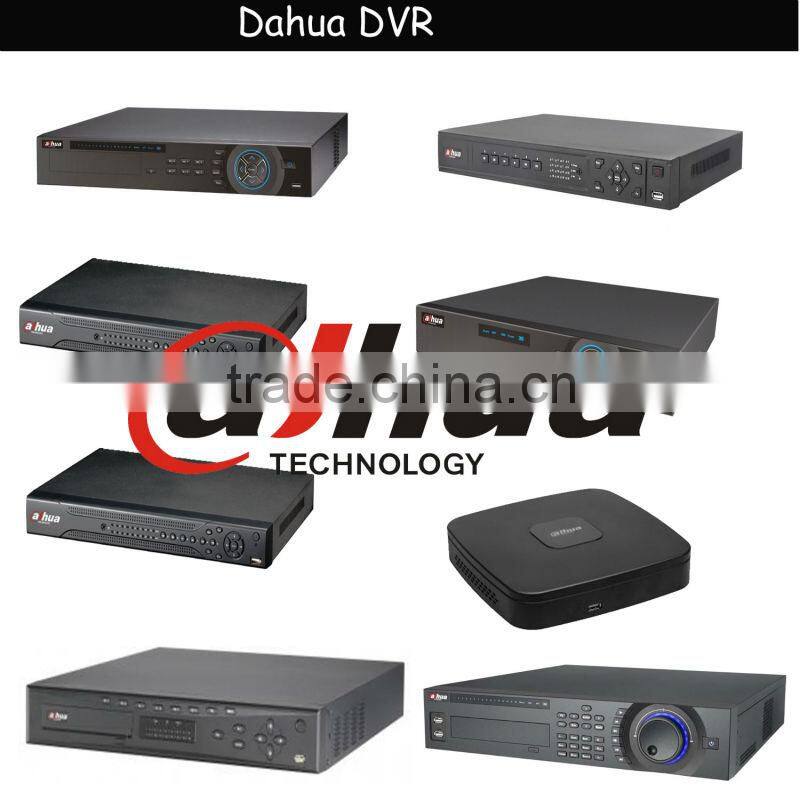

4. Dahua products: Analogue dvr(Full D1/Half D1/Hybrid dvr/960h dvr/hd-sdi dvr)
