8CH AHD DVR 8CH AHD Mobile dvr with 3g GPS
H.264 Video Compression, Support 8CH real-time D1 Video Record.
Real-time HD Video Recording,D1/HD1/CIF for Optional,Adjustable
Frame Rate Quality.
Support Max 2TB HDD+128GB SD card Mirror video record,
Damping shock technology.
Support 3G/4G Network
Support GPS G-sensor WIFI module.
Support External WIFI module
2 high-speed USB2.0 interface.
8CH alarm input, 2CH alarm output, support Acousto-optic alarm
linkage , Cut off power/Fuel Oil, etc.
Built-in hard disk heating function
Power supply: Support 6V - 36V
Dimension : 187(W)x62(H)x200(D) mm
Weight : 1.9Kg
Item |
Parameter |
|
OS |
Embeded Linux |
|
System Language |
English/Chinese/Customized |
|
Video Compression |
H.264 Video Compression |
|
OSD |
Overlays information such as date time and vehicle ID |
|
GUI |
Graphical User Interface |
Support externally connect monitor screen. Setup system parameters with the remote control. |
Video Record System |
Video Input |
8CH standard definition input,aviation connector, 1.0Vp-p, 75Ω |
|
Video Output |
2 CVBS output+ VGA output(Optional) , 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen,9CH screen. |
|
Preview |
Support 1 channel ,4 channels and 9 channels preview.,Support Manual/Alarm Trigger full screen preview |
|
Resolution |
D1/HD1/CIF, MAX:8 channels D1. |
|
Video Quality |
0 -7 levels, 0 is the highest level. |
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; |
|
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
Audio |
Audio Input |
8CH Aviation Connector |
|
Audio Output |
2CH, headphone connect at front panel, BNC Connect on Back panel |
|
Audion Compression |
G.726 compression format, 8kb/s |
Alarm Input |
7CH Alarm Input,1CH AD Input, impulse speed input,Alarm Linkage |
|
Alarm Output |
2CH alarm Output,Support Light/Sound alarm sensor,Oil/Power cut |
|
Interface |
3CH RS232, POS/Fuel Sensor/LED Advertisement Connection |
|
|
1CH 485 Interface,Connect PTZ Camera |
|
Wireless |
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
|
GPS |
Support GPS |
|
Storage |
HDD |
Max 2.5” 2TB HDD |
|
SD |
Max 128GB SD Card Mirror Recording Keep Data Safety |
|
Updating |
Support USB Updating, SD Card Updating,OTA Remote Updating |
|
File Format |
.264 |
|
File System |
Special FAT32 File System |
|
USB |
USB Interface on Front Panel for data back up by U Disk,Hard Disk |
Video Replay |
Video Search |
Search By Record Time/Record Type etc |
|
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|
|
Support forward and backward play at the speed of: x 2,x4,x8,x16 |
Power Consumption |
Power Management |
Wide Voltage.Support Timed/Delay off |
|
Voltage Input |
DC:+6V ~ +36V |
|
Voltage Output |
+12V 2.5A,+5V2.5A |
|
Power |
Working <5W |
Working Environment |
Temperature |
-20℃ to +70℃ |
|
Humidity |
20% to 80% |
Security |
Password |
User/Admin 2 Level Different Password |
Other |
Size |
200 (D)* 187(W)* 62(H) mm |
|
Net Weight |
1.90 Kg |
|
Optional Functions |
Voice Call |
Support voice call each other |
Option |
TTS Voice Broadcast |
Support TTS voice broadcast function. |
|
Serial Expand |
Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device |
mobile dvr

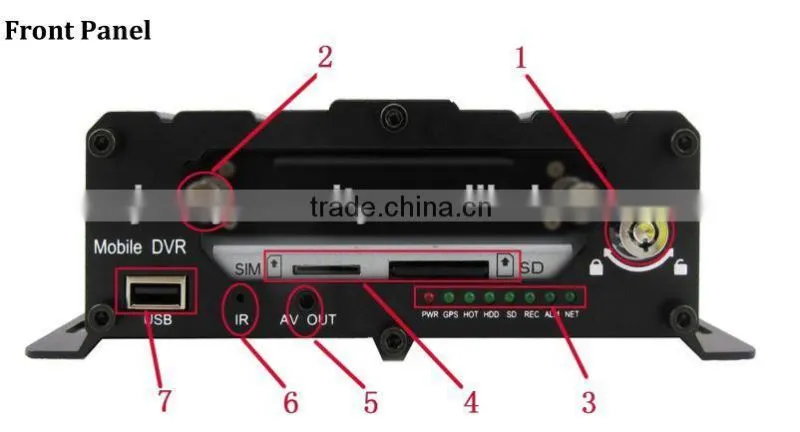

1—HDD Lock, it’s used for unload hard disk. Device will power off automatically if
power on when HDD lock is open;
2—HDD Fixed Screw . Please manually tighten screw after installing hard disk drive,
to prevent HDD slip out ;
3— Status Indicator LED,Details as below :
PWR — Power Indicator LED. LED light means system has powered on.
GPS — GPS/BD Status indicator light. LED ON—Positioning success,
LED FLASH—In positioning , LED OFF —No GPS Module.
HOT —Hard disk heating LED. LED ON—HDD is heating,
LED OFF —HDD doesn’t open heating.
SD — SD card Indicator LED. LED ON—Card is recording,LED FLASH— Card
exists but not recording , LED OFF —Card does not exist.
HDD — HDD card Indicator LED.LED ON—HDD is recording,LED FLASH—HDD
exists but not recording , LED OFF —HDD does not exist.
REC — Video Recording Indicator LED.LED ON—In the recording;
ALM — Alarm Indicator LED. LED ON — In the alarm ;
NET — Network Indicator LED. It changes based on dial-up connection status,
details as below:
LED OFF—No communication module,
LED INTERMITTENT FLASH—SIM CARD does not exist ,
LED QUICK F LASH (1:1) —Device is dialing,
LED SLOW FLASH (3:1)—server connection is not successful,
LED ON - server connection is successful.
4—SIM Card and SD Card Slot; ( When installation gap towards inside, metal touch
spot face down )
5—Front audio and video output interface;(Reserved)
6—Infrared remote control receiving hole.
7—USB Interface ,It’s used to import or export data or upgrade;

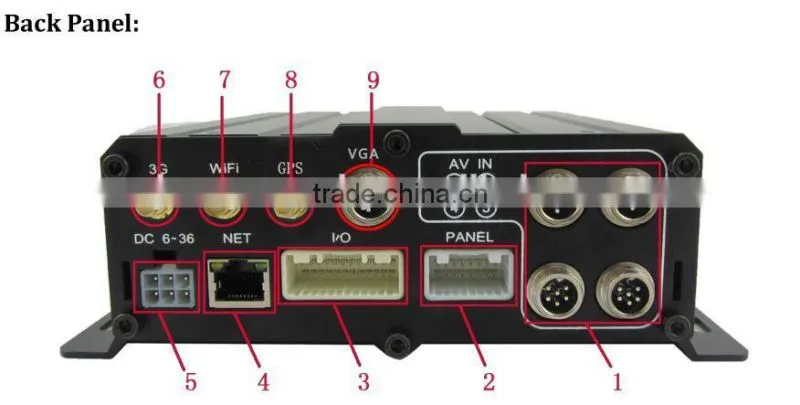

1— Video&Audio Input interface, 1-4Channels or 1-8Channels, with DC 12V
output :
2—16 PIN Extension Port , With Video&Audio output interface,alarm input&output,
serial port etc.
3—24 PIN Extension Port , With alarm input&output,serial port etc.More detailed
definition see addenda.
4—Rj45 Ethernet port , with print serial port, Can only connect 4PIN net cable.
5—Power Input interface ,Input Voltage DC 8-36V,
Red cable connect power anode, Black cable connect power cathode;
Yellow cable connect ACC signal cable.
6,7,8—3G ,WIFI ,GPS Antenna Port;
9—VGA HD Out putinterface
mobile dvr Application
- inside car camera or outside car camera
(inside vehicle installation or outside vehicle installation)
- used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.
