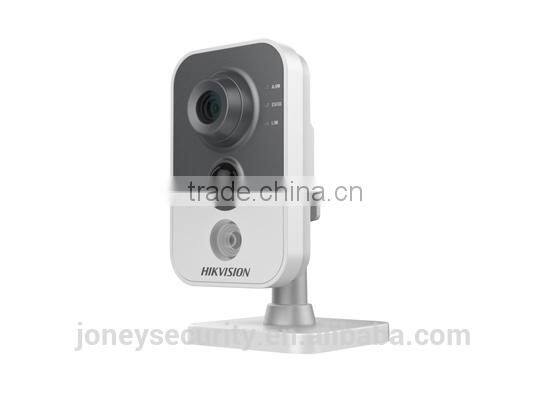

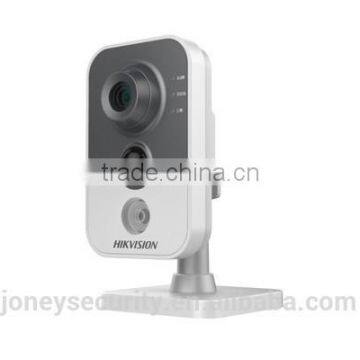

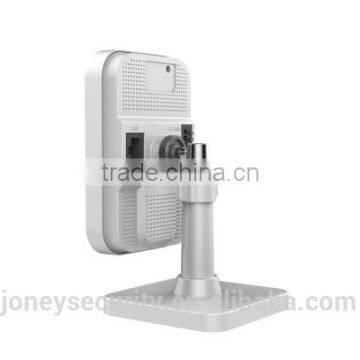

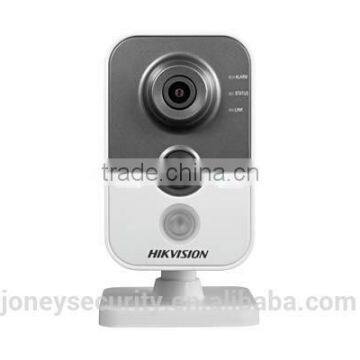

Hikvision Wireless WiFi Network Camera 3MP POE IR Cube Pir Sensor IP Camera (DS-2CD2432F-IW)

Hikvision Wireless WiFi Network Camera 3MP POE IR Cube Pir Sensor IP Camera (DS-2CD2432F-IW) photo-1
Hikvision Wireless WiFi Network Camera 3MP POE IR Cube Pir Sensor IP Camera (DS-2CD2432F-IW) photo-2
Hikvision Wireless WiFi Network Camera 3MP POE IR Cube Pir Sensor IP Camera (DS-2CD2432F-IW) photo-3
Hikvision Wireless WiFi Network Camera 3MP POE IR Cube Pir Sensor IP Camera (DS-2CD2432F-IW) photo-4
Hikvision Wireless WiFi Network Camera 3MP POE IR Cube Pir Sensor IP Camera (DS-2CD2432F-IW) photo-5
Hikvision Wireless WiFi Network Camera 3MP POE IR Cube Pir Sensor IP Camera (DS-2CD2432F-IW) photo-6
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-2CD2432F-IW
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-2CD2432F-IW
Type Digital Camera
Style Other, Cube IP Camera
Sensor Other, CMOS, 1/3" 3 Megapixel Progressive Scan CMOS
Technology NetWork
Special Features Other, wireless wifi

Hikvision wireless WiFi optional Network camera 3MP POE IR Cube pir sensor IP Camera (DS-2CD2432F-IW)

Product Description

Features of pir sensor IP Camera:

1/3" 3 Megapixel Progressive Scan CMOS;

ICR true day/night;

Max 20fps@3MP (2048x1536) or 30fps @2MP;

H.264/M-JPEG compression;

Built-in 2.8mm lens;

3D DNR & built-in PIR sensor;

IR range: 10m;

PoE;

Optional Wi-Fi support (-W model);



Specifications

DS-2CD2432F-IW  pir sensor IP Camera

Camera

Image Sensor:

1/3" Progressive Scan CMOS

Min. Illumination:

0.07Lux @(F1.2,AGC ON) ,0 Lux with IR

Shutter time:

1/25(1/30) s to 1/100,000 s

Lens:

4mm@ F2.0 (2.8mm, 6mm optional)
2048 × 1536:
Angle of view: 86°(4mm), 70°(4mm), 43.3°(6mm)
1920 × 1080:
Angle of view: 98.5°(4mm), 79°(4mm), 49°(6mm)

Lens Mount:

M12

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

Digital WDR

Digital noise reduction:

3D DNR



Compression Standard

Video Compression:

H.264/M-JPEG

Bit Rate:

32 Kbps ~ 16 Mbps

Audio Compression:

G.711/G.726/MP2L2

Dual Stream:

Yes




Max. Image Resolution:

2048×1536

Frame Rate:

50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080),

25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080),

30fps (1280 × 720)

Image Settings:

Rotate mode, Saturation, Brightness, Contrast adjustable

by client software or web browser

BLC:

Yes, zone configurable

ROI:

Yes, up to 4 configurable areas



Network

Network Storage:

NAS

Alarm Trigger:

Motion detection, Dynamic Analysis, Tampering alarm,

Network disconnect, IP address conflict, Storage exception

Protocols:

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,

RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,

Bonjour

Security:

User Authentication, Watermark, IP address filtering,

anonymous access

System Compatibility:

ONVIF, PSIA, CGI, ISAPI



Interface

Audio:

Internal Microphone and Speaker

Communication Interface:

1 RJ45 10M / 100M ethernet interface

On-board storage:

Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

Reset Button:

Yes



Wi-Fi Specification (-W)

Wireless Standards:

IEEE802.11b, 802.11g, 802.11n Draft

Frequency Range:

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth:

20/40MHz Support

Modulation Mode:

802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM

Security:

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmit Power:

11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm

Receive Sensitivity:

11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)

Transmission Rate:

11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps

Wireless Range:

Outdoor: 200m,Indoor: 50m(depend on environment)



General

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 10%, PoE (802.3af)

Power Consumption:

5W MAX

IR Range:

10 meters

PIR:

Angle of detection: 80°
Detection range: 10 meters

Dimensions:

66×91.5×131.3(2.60”×3.60” ×5.17”)

Weight:

400g(0.88lbs)





Related Products

 Hikvision ip camera





Online View

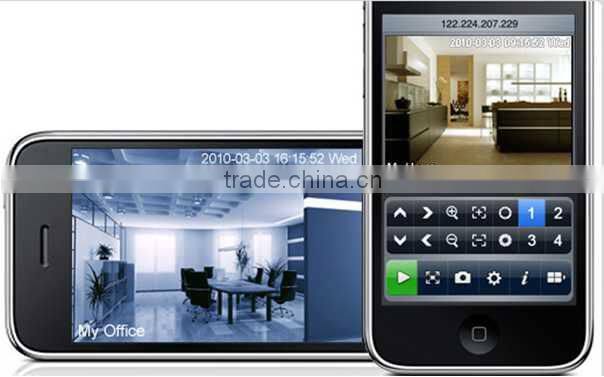

Provide APP for smart phones(free)
